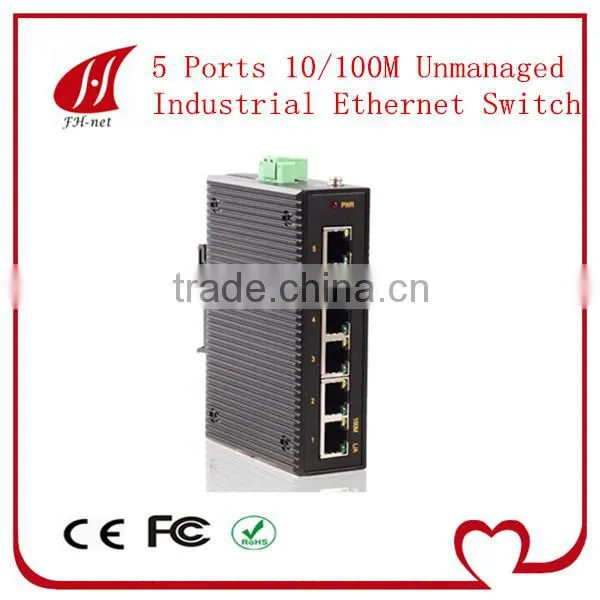

Industrial Ethernet Switch

Port

Interface

5 10/100  5×10/100Base-TX port, Ethernet RJ45

Twisted-pair

10/100Base auto negotiation speed and auto MDI/MDI-X connection

Fiber optic port

None

Communication distance

Twisted-pair

0~100m

Fiber optic line

None

Topology Structure

Line/Star/Network type

Support

Power supply

Input Voltage

24VDC:12-36V 48VDC(customer order)

AC/DC:AC85-265V/DC110-370V

Watt loss

<5W

Alarm output

Max. Current: 24V/1A, Max. voltage: 500V

Interface

Backplane bandwidth

1.6G

Filtering and forwarding

148810bps

MAC address

1K

Flow control

Full-duplex flow control, semi-duplex interface flow control

Broadcast Storm Control

Supports broadcast data packets and broadcast storm control. The data packets out of the limited time will be abandoned.

Environmental Limits

Operating

-40°C~75°C

Temperature

-45°C~85°C

Ambient Relative Humidity

0~95%(non-condensing)

Physical Characteristics

Dimension

114mm×33mm×80mm

Installation

Din-rail/Wall-mounted

Weight

0.3kg

Case protection grade

IP40

Package

Protection class with aluminum casing, no flow fan.

Electromagnetic compatibility

IEC61000-4-2 electrostatic prevention

Anti-static; ±8KV Contact discharge; ±15KV Air discharge

IEC61000-4-3 electromagnetic field

Electromagnetic field 10V/m (80~1000MHz)

IEC61000-4-4 fast transient response pulse signal port

EFT , Power Line: ±4KV ; Date Line: ±2KV

IEC61000-4-5 surge guard signal port

Surge Voltage, Power Line: ±2KV/DM, ±4KV/CM ; Date Line: ±2KV

IEC61000-4-6 radio frequency presentation

Antistatic conductive 3V (10KHz~150KHz), 10V (150KHz~80MHz)

EMI

EN55022 Class A

IEEE standard

IEEE802.3,IEEE802.3u,IEEE802.3x
