Introduction

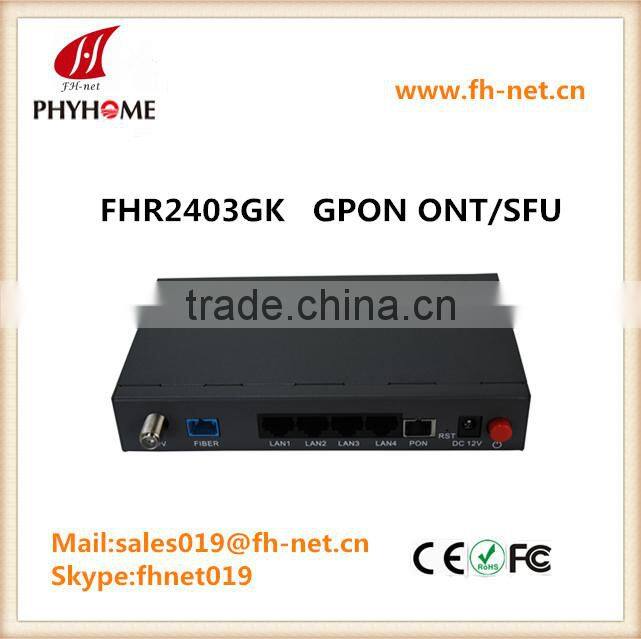

GPON FHR2403GK ONT/SFU is wholly designed by Shenzhen FH-Net Optoelectronics Co., Ltd, to fulfill FTTH (Fiber To The Home) and the demand of fixed network operators. It is based on the G.984 technology and has high cost performance.It is support the CATV signal, It is high-reliable and easy to maintain, support multiple QoS service guarantees.
Special features
Main services:4GE+CATV
Support the CATV signal detect
Support the CATV one Fiber (1310/1490/1550)or two Fiber(1310/1490,1550)
Plug and play, integrated technology of auto detecting, auto configuration, and auto firmware upgrade.
Integrated technology of OMCI, TR069 remote configuration and maintenance.
Support flexible QinQ VLAN, DHCP Server/Relay and IGMP/MLD multicasting and monitoring.
Support fiber transceiver diagnostic monitoring, fiber transmitter remote disable.
Fully compatibility with OLT of Huawei, Fiberhome, ZTE, etc.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
Technical parameters
Technical items | Descriptions |
Optical interface | 1 GPON interface, SC single mode/single fiber |
Optical Wavelength | Tx 1310nm, Rx 1490nm |
Interface connector | SC/PC |
RX sensitivity | <-27dBm (1490nm) |
LAN interface | 4*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Throughput capacity | Up to 900Mbps and more |
DC power supply | 12V 1A, external AC-DC power adapter |
Button | Reset, Power, WiFi |
Power consumption | ≤ 10W |
Operating condition | Operating temp: -5 ~ +55℃,Operating humidity: 10~90% (non-condensed) |
Storing condition | Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed) |
Dimension | 168mm*97mm*31mm(L*W*H) |
Net weight | ≤0.4Kg |
CATV Technical parameters
Descriptions |
| Descriptions |
Optical Receive | dBm | -15 ~ +2 |
AGC range | dBm | -8~+2 |
Fiber return loss | dB | >50 |
wave length | nm | 1100 ~ 1600 |
Connection |
| SC/APC |
C/N | dB | ≥ 50 |
C/CTB | dB | ≥ 62 |
C/CSO | dB | ≥ 61 |
BW | MHz | 40~ 1000 |
Output level | dBμV | ≥ 82 |
Data Service Functions
Full speed 1G non-blocking interchange.
Support for frame sizes 64-2000 Bytes
Support VLAN QinQ, transparent, tag, translation, trunk, etc.
Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
Support auto polarity detection of Ethernet ports (AUTO MDIX).
Integrated IEEE802.1Q QoS with four level priority queues.
Support IPv4 IGMP snooping and IPv6 MLD snooping.
Application chart
