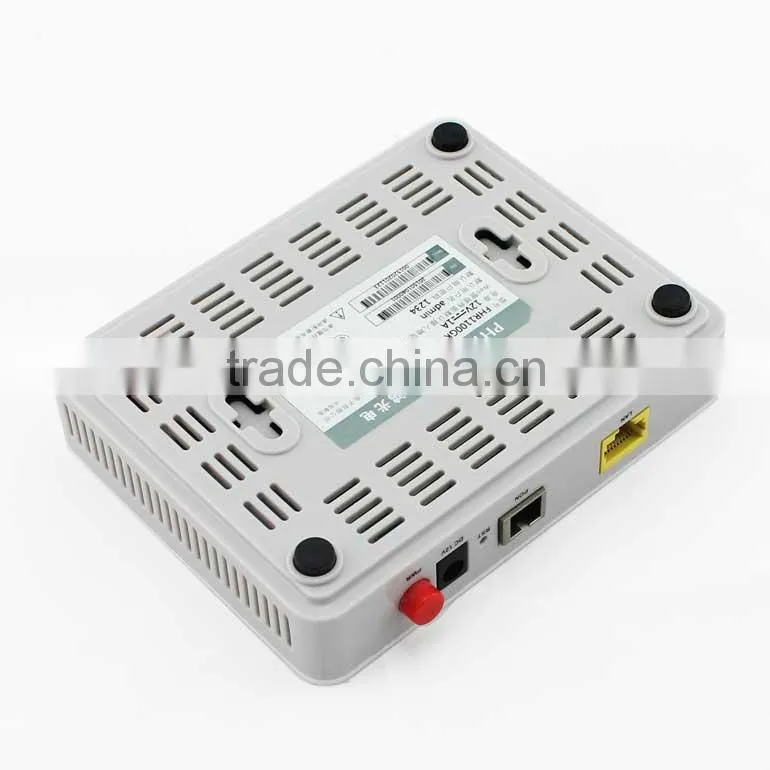

FHR2100GK GPON ONU
Description

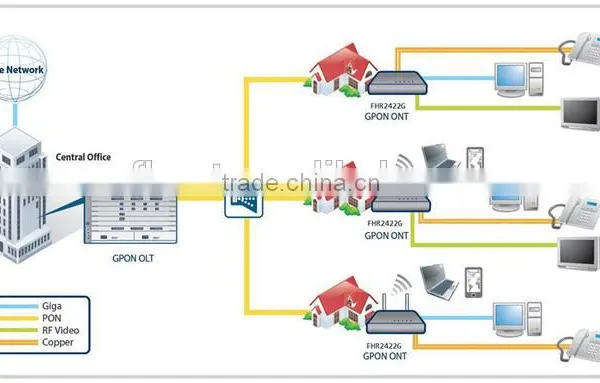

FHR2100GK isGPON broadband terminal device designed for fulfilling FTTH request of telecom operators, internet access of SOHO people and renovation request of EPON+EOC infrastructure of Broadcast & TV companies. This product is basing on the stable and mature Gigabit EPON technology, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. And it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of GPON Equipment (V2.1) from China Telecom.
Features
u Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
u Integrated OAM remote configuration and maintenance function.
u Support rich QinQ VLAN functions and IGMP Snooping multicast features.
u Functions like transceiver diagnostic monitoring, transmitter disable, etc.
u Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Technical parameters
Technical items |
Description |
Upstream PON interface |
1 GPON interface, SC single-mode/single-fiber, uplink 1.25 Gbps downlink 2.5Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Optical interface |
SC connector |
Downstream LAN interface |
1 10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 |
Indicators |
4 indicators, for status of power supply, PON port and 4 Ethernet ports. |
DC power supply |
+12V, external AC-DC power adaptor |
Power switch |
1 |
Power consumption |
≤5W |
Operating condition |
Operating temp: -25~+55 |
Storing condition |
Storing temp: -30~+60 |
Dimension |
131mm*120mm*29mm (L*W*H) |
Net weight |
0.25Kg |
Data Service Functions
u Full speed non-blocking switching.
u 1K MAC address table.
u 64 full range VLAN ID.
u Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
u Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
u Support auto polarity detection of Ethernet ports (AUTO MDIX).
u Integrated IEEE802.1p QoS with four level priority queues.
u Support IPv4 IGMP snooping and IPv6 MLD snooping.

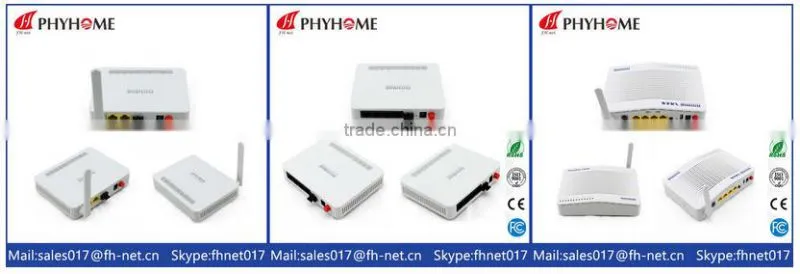

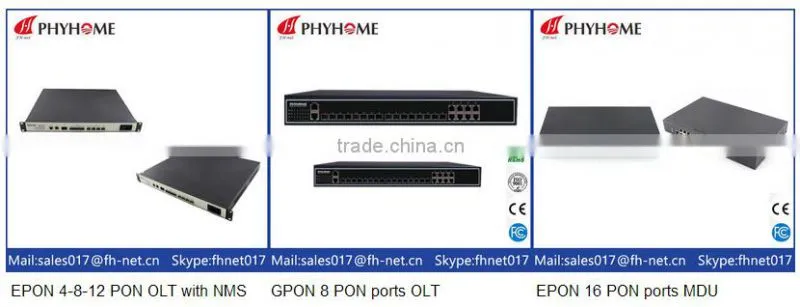

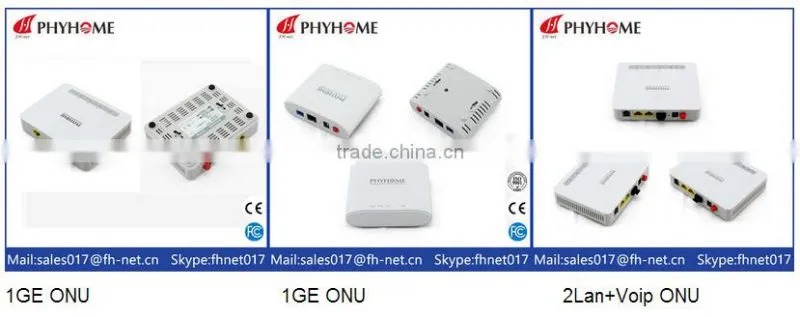

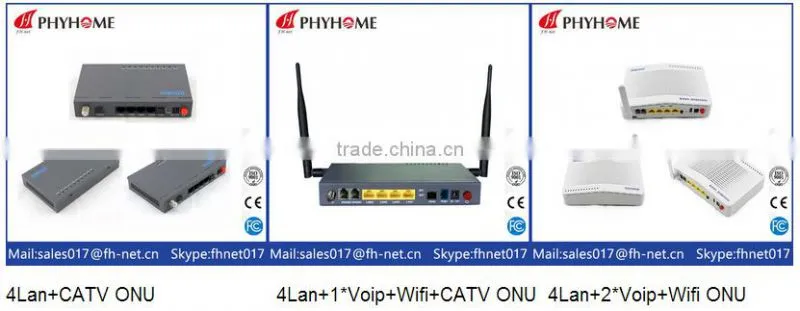

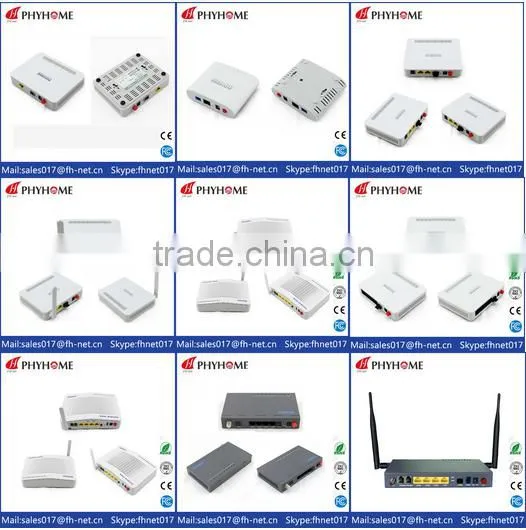

Popular Models
Competitive selling prices
Warranty: 1-3 years warranty
Excellent after-sale service
Samples are available for testing
Reply your inquiry within 24 hours
You can get our support online at 24*7
Big capability of manufacture and fast delivery time
With experienced technical team supporting
Customized label and package, ODM and OEM service offered
100% new materials for production and 100% reliable quality

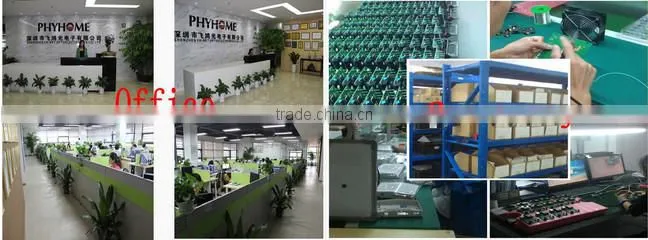

Established more than 10 years ago, FH-Net is an award-winning manufacturer of Triple-play Products, Fiber Optic Communications, Industrial Switch, Security Surveillance for Service Providers, Power Utilities, Telecom Networks and the Government Sector. Its leading-edge technology, strict adherence to quality standards and best service operations, together with our corporate culture that encourages innovation and values long-term cooperation to its customers, channels, suppliers, and employees, combine to make FH-Net an ideal partner.
