Home > Products > GPON OLT/ONT > GPON onu 4ge with wifi wireless Fiber Optic Equipment FTTH ONT compatible with Huawei ZTE Quality Choice
GPON onu 4ge with wifi wireless Fiber Optic Equipment FTTH ONT compatible with Huawei ZTE Quality Choice
- 50000 Piece / Pieces per Month
- Shenzhen(China mainland )
- T/T L/C D/P D/A Credit Card PayPal
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PHYHOME, PHYHOME | Model Number: | FHR2401GK, FHR2401GK |
Product Description

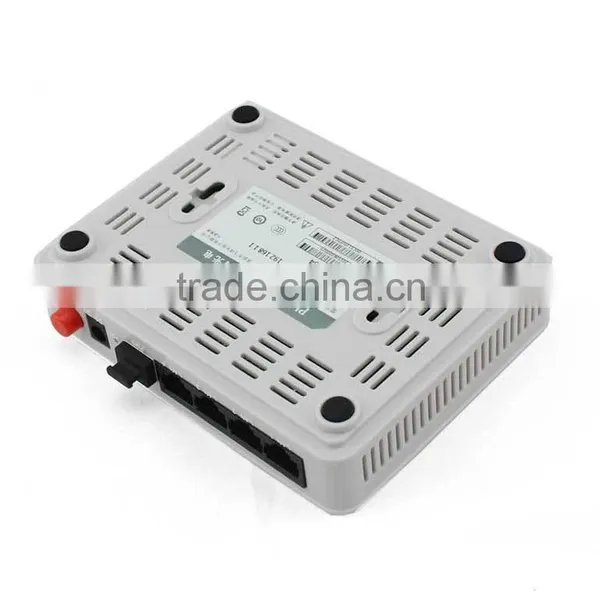

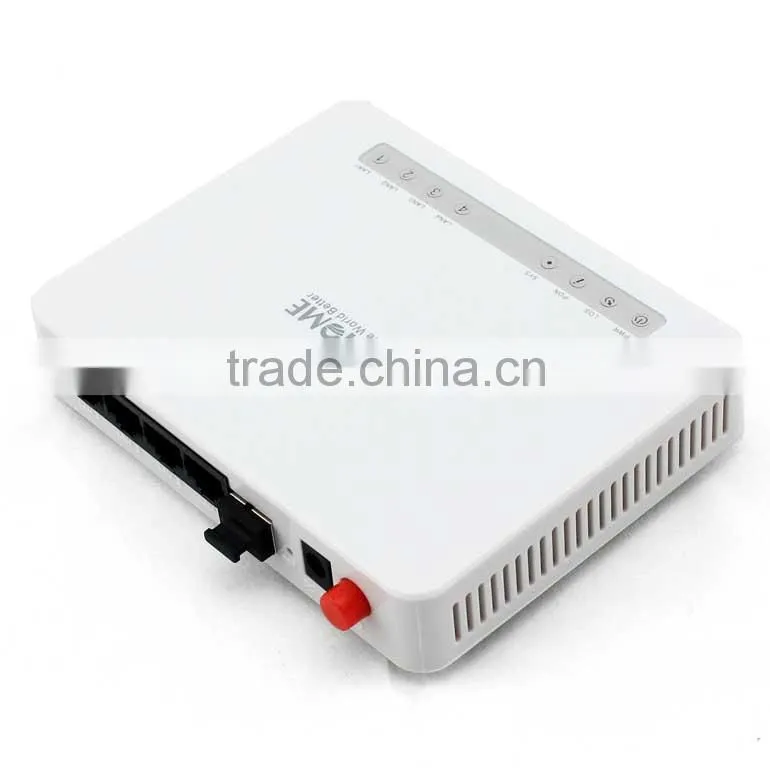

FHR FHR2401GK GPON ONT/HGU
Introduction
GPON ONT/HGU is designed for FTTH and networking service providers. FHR2401GK is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.
Characteristics
- Main service: 4GE+1WIFI
- Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
- Integrate OMCI and TR-069 remote configuration and maintenance
- Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
- Support diagnostic monitoring and remote disabling of fiber optical
- Compatible with Huawei,ZTE and Fiberhome OLT
- Support 802.11n WiFi(T/R)function
- Support NAT and firewall function
- WAN support networking bridge, router and bridge/router mixed mode
Specification
Technical items | Descriptions |
Fiber port | 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/PC |
RX sensitivity | <-28dBm (1490nm) |
WLAN | IEEE802.11b/g/n,300Mbps, a built-in antenna |
LAN | 4*10/100/1000Mbps adaptive ethernet ports, full/half duplex, RJ45 interface |
DC power | 12V 1.5A, external AC-DC power adapter |
Button | Reset, power, WIFI |
Power | ≤10W |
Operation | Working temperature: -5-+55℃ working humidity:10-90%(non-condensation) |
Storage | Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation) |
Dimension | 185*145*50mm(length*width*highth) |
Net weight | ≤0.4Kg |
Data Service Functions
- Full speed 1G non-blocking switching
- 2048 MAC address table
- 16 LAN
- Support VLAN QinQ, transparent, tag, translation, trunk, etc.
- Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
- Support auto polarity detection of Ethernet ports (AUTO MDIX)
- Integrated IEEE802.1p QoS with four level priority queues
- Support IPv4 IGMP snooping and IPv6 MLD snooping
- Support bridging, router and bridging/router mixed mode
Wi-Fi service
- Support Integrated 802.11b/g/n, 300Mbps, 2T2R.
- Support 64 connections
- Support WEP and WPA/WPA2 security protocols.
Application chart
Popular Models
GPON EPON ONU 2LAN(1GE+1FE)+1WIFI
GPON EPON ONU 1GE
GPON EPON ONU 4GE/4FE
GPON EPON ONU 2LAN(1GE+1FE)+1POTS

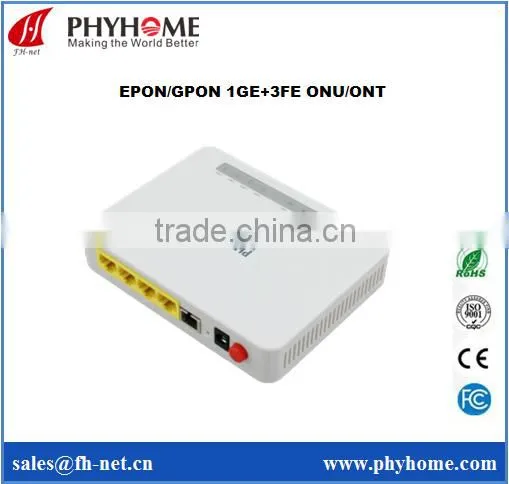

GPON EPON ONU 4LAN(1GE+3FE)+1POTS+1WIFI
GPON EPON ONU 4GE+1CATV
GPON EPON ONU 4GE+1WIFI
GPON EPON ONU 4LAN(1GE+3FE)+2POTS+1WIFI
GPON EPON ONU 4GE+2POTS+2WIFI+1CATV
Competitive selling prices
Warranty: 1-3 years warranty
Excellent after-sale service
Samples are available for testing
Reply your inquiry within 24 hours
You can get our support online at 24*7
Big capability of manufacture and fast delivery time
With experienced technical team supporting
Customized label and package, ODM and OEM service offered
100% new materials for production and 100% reliable quality
Established more than 10 years ago, FH-Net is an award-winning manufacturer of Triple-play Products, Fiber Optic Communications, Industrial Switch, Security Surveillance for Service Providers, Power Utilities, Telecom Networks and the Government Sector. Its leading-edge technology, strict adherence to quality standards and best service operations, together with our corporate culture that encourages innovation and values long-term cooperation to its customers, channels, suppliers, and employees, combine to make FH-Net an ideal partner.
