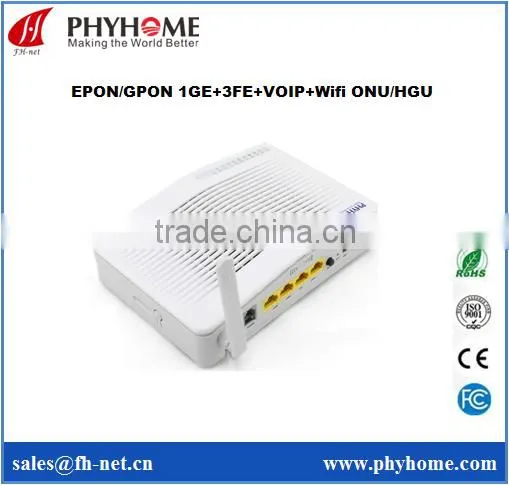

FHR2411K GEPON ONT/HGU
Introduction
GPON FHR2411K ONT/HGU is wholly designed by Shenzhen FH-Net Optoelectronics Co., Ltd, to fulfill FTTH (Fiber To The Home) and the demand of fixed network operators. It is based on the Gigabit EPON technology and has high cost performance. It complies with the technology of 802.11n WiFi (T/R), Layer 2&3 and even higher layer VoIP as well. It is high-reliable and easy to maintain, support multiple QoS service guarantees. And It is fully compliant with IEEE802.3ah and technical requirement of GPON Equipment from China Telecom, China unicom.
Special features
- Main services:1GE+3FE+1VOIP+1WIFI
- Plug and play, integrated technology of auto detecting, auto configuration, and auto firmware upgrade.
- Integrated technology of OMCI, TR069 remote configuration and maintenance.
- Support flexible QinQ VLAN, DHCP Server/Relay and IGMP/MLD multicasting and monitoring.
- Support fiber transceiver diagnostic monitoring, fiber transmitter remote disable.
- Fully compatibility with OLT of Huawei, Fiberhome, ZTE, etc.
- Support 802.11n WiFi (T/R) function.
- Support NAT, Firewall function.
- Support IPv4 and IPv6 dual stack.
- Port’s Integrated circuits testing complies with GR-909.
- The WAN port supports bridge, router and bridge/router mixed mode.
Technical parameters
Technical items |
Descriptions |
Optical interface |
1 GPON interface, SC single mode/single fiber Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
Optical Wavelength |
Tx 1310nm, Rx 1490nm |
Interface connector |
SC/PC |
RX sensitivity |
<-27dBm (1490nm) |
WLAN |
Compliant with IEEE802.11b/g/n, 300Mbps one internal antenna |
LAN interface |
1*10/100Mbps+3*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Throughput capacity |
Up to 900Mbps and more |
POTS interface |
1FXS, RJ11 connectors |
DC power supply |
12V 1.5A, external AC-DC power adapter |
Button |
Reset, Power, WiFi |
Power consumption |
≤ 10W |
Operating condition |
Operating temp: -5 ~ +55℃,Operating humidity: 10~90% (non-condensed) |
Storing condition |
Storing temp: -30 ~ +60℃,Storing humidity:10~90%(non-condensed) |
Dimension |
185mm*145mm*50mm(L*W*H) |
Net weight |
≤0.4Kg |
Data Service Functions
1) Full speed 1G non-blocking interchange.
2) 2048 MAC address table.
3) 16 VLAN IDs
4) Support VLAN QinQ, transparent, tag, translation, trunk, etc.
5) Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
6) Support auto polarity detection of Ethernet ports (AUTO MDIX).
7) Integrated IEEE802.1p QoS with four level priority queues.
8) Support IPv4 IGMP snooping and IPv6 MLD snooping.
9) Support bridging, router and bridging/router mixed mode.
POTS Service Functions
- Support SIP protocol
- Support H.248 protocol
- SIP protocol: Provided by the ISP, the port number of communication between SIP proxy server and VOIP terminal. It ranges from 1 to 65535, the system defaults is 5060.
- H.248 protocol: Provided by the ISP, the port number of communication between alternate MGC and VOIP terminal. It ranges from 1 to 65535, the system defaults is 2944.
- Port ringing voltage: 50±10VAC, 30±10H
- Port type is POTS(VOIP)
- Support voice coding/compression G.711 A-Law/u-Law,G729A/B,G.723.1-5.3/6.3,G.726 etc.
- Support standby software interchange and auto switching
WiFi service
1) Integrated 802.11b/g/n, 300Mbps.
2) Support 64 connections.
3) Support WEP and WPA/WPA2 security protocols.

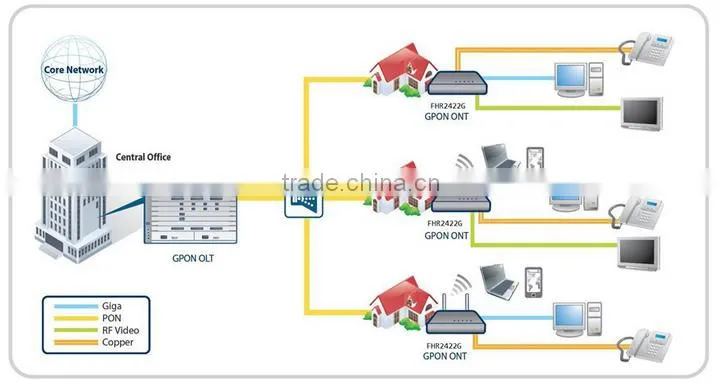

Application chart
Popular Models
GPON EPON ONU 2LAN(1GE+1FE)+1WIFI
GPON EPON ONU 1GE
GPON EPON ONU 4GE/4FE
GPON EPON ONU 2LAN(1GE+1FE)+1POTS
GPON EPON ONU 4LAN(1GE+3FE)+1POTS+1WIFI
GPON EPON ONU 4GE+1CATV
GPON EPON ONU 4GE+1WIFI
GPON EPON ONU 4LAN(1GE+3FE)+2POTS+1WIFI
GPON EPON ONU 4GE+2POTS+2WIFI+1CATV
Competitive selling prices
Warranty: 1-3 years warranty
Excellent after-sale service
Samples are available for testing
Reply your inquiry within 24 hours
You can get our support online at 24*7
Big capability of manufacture and fast delivery time
With experienced technical team supporting
Customized label and package, ODM and OEM service offered
100% new materials for production and 100% reliable quality
