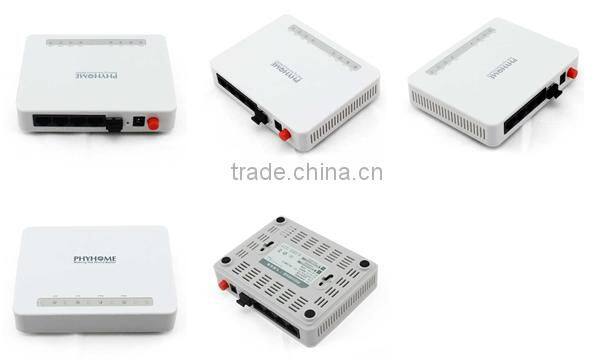

GPON 4 Lan Ports ONU Compativity to Huawei HG813

Introduction

GPON ONT/HGU is designed for FTTH and networking service providers.  FHR2401K is developed by FH-net optoeletronics based on the Gigabit GPON technology, has a high cost performance, it supports the 802.11n wireless networking technology(T/R). It is high stability and easy to maintain, has multi-service QoS quality guarantee. And It is fully compliant with technical regulations such as ITU-T G.984.x and technical requirement of GPON Equipment (V2.1 and above version) from China Telecom, China Unicom.

Characteristics

•   Main service: 1GE+3FE
•   Plug and play, integrate auto detection, auto configuration and auto firmware upgrading
•   Integrate OMCI and TR-069 remote configuration and maintenance
•   Support flexible QinQ VLAN,DHCP server/relay and IGMP/ MLD multicast monitoring function
•   Support diagnostic monitoring and remote disabling of fiber optical
•   Compatible with Huawei,ZTE and Fiberhome OLT
•   Support NAT and firewall function
•   WAN support networking bridge, router and bridge/router mixed mode

  Specification

Data Service Functions

•    Full speed 1G non-blocking switching
•    2048 MAC address table
•    Support VLAN QinQ, transparent, tag, translation, trunk, etc.
•    Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc
•    Support auto polarity detection of Ethernet ports (AUTO MDIX)
•    Integrated IEEE802.1p QoS with four level priority queues
•    Support IPv4 IGMP snooping and IPv6 MLD snooping
•   Support bridging, router and bridging/router mixed mode

Application chart

Ordering Information

 Contact us for more information

Emily   Skype:fhnet001
