EOC indoor master Indoor, Intellon chipset, 1 RF input 1 FR output

Specifications

Description

FH-NET EoC product is focused on the use of existing cable television (CATV) infrastructure for Internet access or broadband data transmission for the purpose of being compatible with the existing CATV (or sometimes satellite television) broadcast signals simultaneously transmitted on the same cable.

FHC1121L1 series are point-to-multipoint EoC (Ethernet over Coax) solution that efficiently extends 1000M Ethernet circuits to over 800 meters (2,624feet) upto700Mbps using existing coaxial cable. The FHC1121L1 will allow Ethernet connectivity in existing facilities or homes without pulling extra cable. This is perfect solution for Ethernet on the factory floor where systems have been upgraded from slower serial communication to Ethernet networking. The FHC1121L1 is a master/bridge unit which will connect to multiple FHC1121R4 subscriber units.

Features

u  Coated with airtight aluminum shell that prevents water and dust. A wide range of operation temperature from -25℃ to 55℃

u  Occupies the Low Frequency Band under 7.5~65MHz. Strong capacity of anti-interference. High bandwidth.

u  High-speed up to 700Mbps communications link over existing coaxial cable, @up to 800 meters (2624 feet)

u  Provide 2 1000M Ethernet interfaces to connect up ONU(Optical Network Unit) and Ethernet Switch or to serve as Up-link to under-connect FHC11xxRx

u  Support SNMP management and MIB standard

u  Support VLAN(802.1), QoS(802.1p), IGMP

u  Support remote management and auto-upgrade

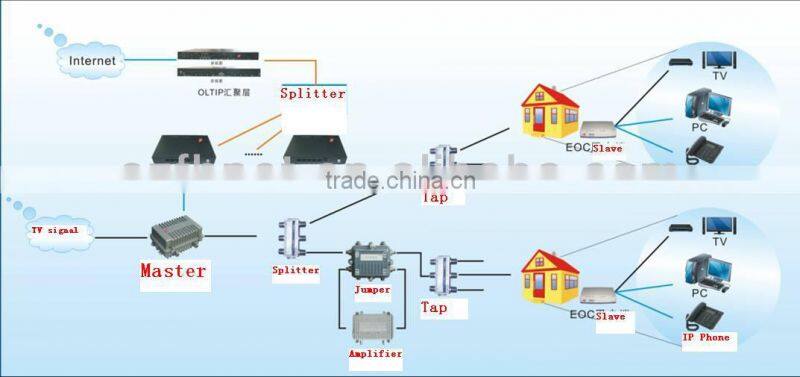

Application

Specification

Order Information
