Good Quality Super Slim p4 Indoor Fullcolor Led Display From China

Name: Good Quality Super Slim p4 Indoor Fullcolor Led Display From China
Brand: Adrich
SKU: 110621949
Availability: InStock

US$ 1,400 - 2,000 MOQ: 5 Square Meters

Key Specifications

Place of Origin:

China

Brand Name:

Adrich

Model Number:

Shenzhen Ryham Optoelectronics Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Adrich

Model Number p4

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels 7mm

Screen Dimension customize

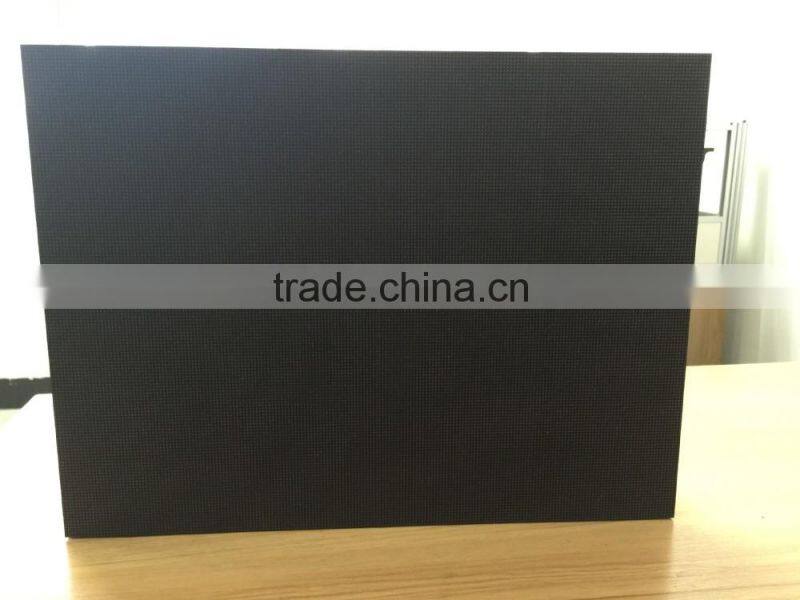

Good quality super slim p4 indoor fullcolor led display from alibaba China

Item	Parameter
Pixel	Physical pixel pitch: 4 mm
	Pixel configuration: 1R1PG1PB		Chip	Wave	Brightness	Packing
		R	Opto	620-625nm	300mcd	SMD-2724
		G	Silan	520+/_1.25nm	850mcd	SMD-2724
		B	Silan	470+/_1.25nm	180mcd	SMD-2724
Module	Module resolution: 32 x 32 pixels
	Module size: 128 x 128 mm
Cabinet	Physical resolution: 128 x 128 pixels
	Cabinet size: 512 x 512 x 140mm
	Physical density:16384 pixels/cabinet
	Module quantity: 16pcs = 4(w) x 4(h)
	Material: Iron
	Weight: 20Kg
	Average power consumption: 200W
	Max power consumption: 400W
Electricity parameter	Brightness: 1500 - 1800 nits
	Brightness adjusted: 100 grade by software, or by Auto-optic induced
	Color processing: 16bit
	Display color: 280 trillion
	Color temperature(k): 5000 — 9500 (choice by user)
	Physical density: 62500 pixels/m2
	Whole display flatness: ≤ 1mm juncture
	Best view distance: ≥ 3m
	Best view angle: Horizontal ±80°, Vertical ±80°
	Storage temperature: -35°C ~ +85°C Working temperature: -20°C ~ +50°C
	Driving method: Constant driving current Scan: 1/16
	Refresh frequency: 600Hz
	Frame rate: ≥ 60Hz
	Humidity(RH): ≤ 90 ~ 95%
	Protection grade: IP64
	Working Voltage: DC 5V
	Power supply: AC110 / 220V, 50/60Hz
	Average power consumption: 800 w/m2
	Max power consumption: 1600 w/m2
	MTBF: 10000 hours
	Screen lifetime: 100000 hours
Control system	Control system: Zdec
	Signal interface: DVI
	Communication distance: Internet cable: ≤ 120m / Fiber cable: 1000m
	Signal transfer mode: Pixels to pixels display synchronized
