Home > Products > New Products > flexible mini led screen display, indoor led curtain screen Quality Choice
flexible mini led screen display, indoor led curtain screen Quality Choice
- 500 Square Meter / Square Meters per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Ryham | Model Number: | p9 |
Usage: | Outdoor | Tube Chip Color: | Full Color | Display Function: | Video |
Pixels: | Other, 9.375mm | Screen Dimension: | customized |
Packaging Details
plywood case or flight case
Product Description

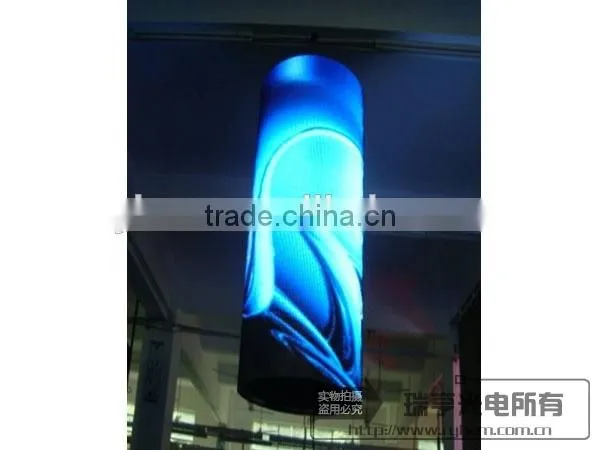

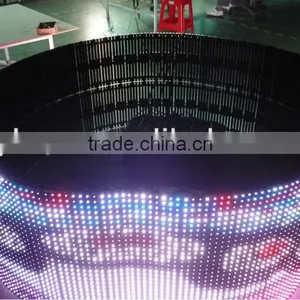

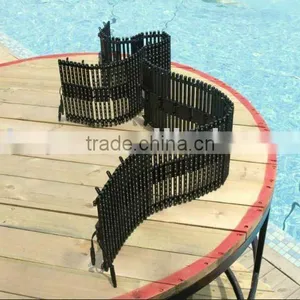

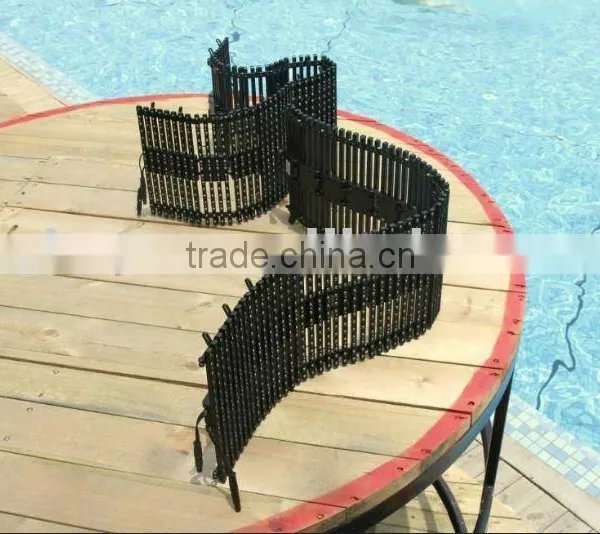

flexible mini led screen display, indoor led curtain screen
Characteristics:
lSupport many signal input such as AV,S-Video,DVI,VGA,HDMI,SDI,DP etc.
lSlim and light design, with hanging installation structures along with fast lock enable convenient and fast installation and take down
lConstant current drive mood, 1/8 duty
lBrightness 1200cd/sqm
lProtection level reaches front IP65/ rear IP54, fully reach outdoor waterproof and dustproof use standard
lEnergy saving design, unit cabinet consumes average 350W only.
lGridding design allows good transparency rate, it can create light and smoke effect to concerts and stage.
Products model number | RH-SLC-9 | |
Unit module | Pixel pitch(mm) | 9.375mm |
Pixel density(dot/sqm) | 1200 | |
LED type | 3 in 1 SMD | |
Module resolution(Pixel) | 32×16 | |
Module size(mm) | 300mm×150mm | |
Pixel composition | 3 in 1 smd | |
Unit cabinet | Cabinet size(mm) | W640×H640 |
Cabinet resolution(dot) | W32×H32 | |
Cabinet structure(black) | Standard cabinet | |
Installation type | Rear fix | |
Cabinet material | aluminum | |
Cabinet weight(KG) | 8.5 | |
Cabinet connection type | Aviation plugs | |
Protection level | IP65 | |
Screen parameter | Viewing distance(m) | 15~100 |
Brightness(cd/sqm) | 1200cd/m2 | |
Power consumption(w/sqm) | 600avg 800max | |
Driver IC | 16-bit constant current chip | |
Refresh rate(HZ) | ≥300 | |
Recommend aspect ratio | 4:3/16:9 | |
View Angle H./V(°) | H110 V55 | |
System operation voltage | AC110V±15%/220V±15% 50Hz/60Hz | |
Other parameters | Vision adjustment | brightness, contrast, tone,Color saturation,Gray scale calibration coefficients, color range,,image zoom etc |
| Image processing | Video Noise Reduction,Fast motion compensation,edge sharpen,edge smooth,Color coordinate space transformation and control,Gray transform etc. |
Luminance uniformity | For whole screen Single color at highest brightness,the minimum pixel brightness by the brightest pixel brightness ratio is greater than 0.9 | |
Gray scale / color | red , green, blue is 1024 scale, 10 bit Respectively, 10.7 hundred million color | |
Color temperature / contrast | brightness and contrast Red, green, and blue can be adjustable 100 levels by software , the color temperature is adjustable according to the needs | |
Effective communication distance | Unshielded twisted pair transmission distance is100 meters up to 140 meters. Multimode fiber is 500 meters, single-mode fiber is 20 km | |
Input signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
Controller system | Sending card (Main control Card) + receiving card + DVI graphics card + PCTV non-linear editing card + multi-function card + video processor + transmission line (optional) | |
Meantime between failure | 5000 hours | |
Lifespan ( normal operation) | 100,000 hours | |
Malfunction Dot Rate | 0.0001 | |
Earth leakage current | ≤3.5MA | |
Control mood | PC online control | |
Operating Temperature | –20°C~+65°C |
