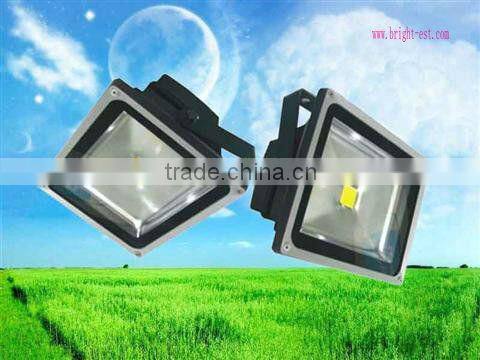

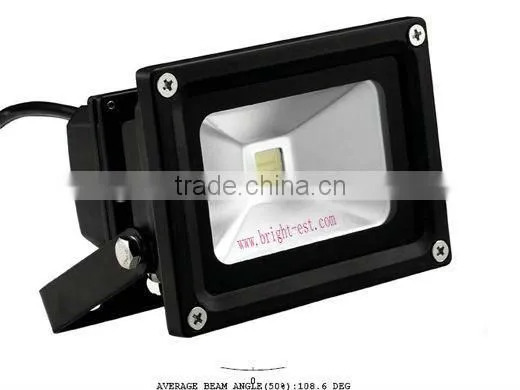

Help CenterAC100-240V COB 10 W High Power LED Flood Light
Related Products
-
High Power COB 10W LED Flood Light,220V Advertising LampUS$ 10 - 200MOQ: 1 Piece -
Outdoor IP65 Waterproof LED Flood Light COB 160WUS$ 10 - 200MOQ: 1 Piece
-
COB 180W LED Flood Light BG-742-W-180WUS$ 100 - 400MOQ: 1 Piece
-
COB 180W LED Flood Light IP65US$ 100 - 400MOQ: 1 Piece
-
High Power LED Flood Light IP65 60WUS$ 10 - 200MOQ: 1 Piece
Specifications
1.Input Voltage:AC100-240V2.Color:White/Warm White
3.Beam Angle:60/120
4.IP Grade:IP65
5.Power:10W
Feature:
1 .Using self-packaged single 10W-200W High Power LED as the light source. This light source using multi-chip integrated single-group design, select high imports of semiconductor chips, with the feature of high thermal conductivity, small optical decline, pure light color, no ghosting;
2.The LED directly close with the shell, it can scatter heat through the shell and air convection, the shell using aluminum alloy die-casting, the lamp can be effectively scatter heat and ensure the light source life. The perfect combination of 5mm tempered glass with high-intensity lights make the lamps can be using at high-humidity environment;
3. The body using anti-aging sealed silicone rubber, the surface of lamp have done the anodic oxidation and the spray treatment, the overall lighting is in line with the IP65 standard.
1, Parameters
Item |
Min |
Type |
Max |
Power |
- |
10W |
12W |
Rated Current |
- |
0.32A |
0.35A |
Rated Voltage |
30V |
32.3V |
36 V |
Warm white CCT |
2700K |
3200 K |
3900 K |
Pure White CCT |
4000K |
5500 K |
6000 K |
Cool White CCT |
6000K |
6500 K |
7000 K |
|
Normal Working Junction Temp |
- |
60 °C |
75 °C |
LED Qty of Chips |
- |
10PCS |
- |
LED luminous Efficiency |
80-100LM/W |
||
2, Fixture Technical Parameter
Input Voltage |
AC85V~265V |
|||
Frequency Range |
50Hz~60Hz |
|||
Total Harmonic Distortion |
≤ 9 % |
|||
Power Factor |
>0.98 |
|||
Power Efficiency |
>90 % |
|||
LED Working Voltage |
DC30~36V |
|||
The qty of led |
1 pc |
|||
Led Consumption |
10W |
|||
System Consumption |
11 W |
|||
Led Luminous Efficiency |
80-100 Lm /W |
|||
Led Initial Flux |
960 Lm |
|||
lamp’s Efficiency |
>91 % |
|||
|
Average Luminance |
2 M |
94 LUX |
||
3 M |
42LUX |
|||
4 M |
24 LUX |
|||
|
Luminance Area |
2 M |
The irradiation Are is a circular with 5.5M Diameter |
||
3M |
The irradiation Are is a circular with 8.0M Diameter |
|||
4M |
The irradiation Are is a circular with 10.5M Diameter |
|||
Luminance Uniformity |
>0.6 |
|||
Color Temperature |
Detail information refer to above LED parameters table |
|||
Color Rendering Index |
Ra>80 |
|||
Light Distribution |
symmetric expression / circular light spot |
|||
Light Design |
LED +The reflectors second light distribution |
|||
LED Junction Temperature |
≤80°C |
|||
Working Temperature |
-40°C ~ +55°C |
|||
Storage Temperature |
-25°C ~ +65°C(25°Cis the optimal) |
|||
IP Grade |
IP65 |
|||
Net weight |
0.9 Kg |
|||
Working Life-span |
50000H |
|||
Power line |
1mm2three-core cord
|
|||
Connect wire |
Brown |
L |
||
Blue |
N |
|||
Yellow/Green |
G |
|||
The color of the lamp shell |
black & Silver-White |
|||
certificate |
CE ROHS |
|||
