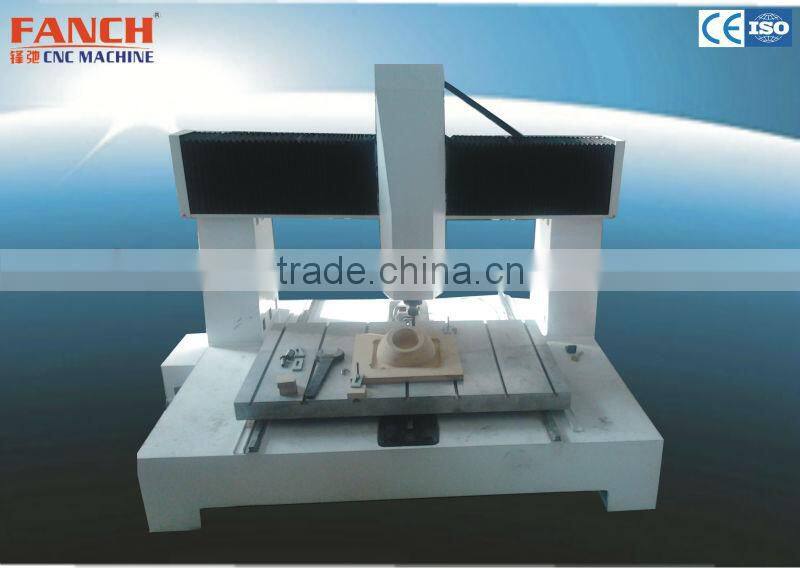

Cnc Milling Machine 4-axis 0610

Name: Cnc Milling Machine 4-axis 0610
Brand: FANCH
SKU: 110594331
Availability: InStock

US$ 1 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Beijing, China

Beijing Fanch Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Shanghai Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Beijing, China

Brand Name FANCH

Model Number SKD-0610TW

Voltage AC380V/50Hz

Power(W) 3.2kw water cooling

Dimension(L*W*H) 1860*1570*1960mm

Weight 800kg

Certification CE&ISO

Warranty ONE YEAR

After-sales Service Provided Overseas service center available

Specifications

cnc milling machine 4-axis
SKD-0610TW
1.3.0KW water cooling spindle
2.NC Studio controller
3.i can speak Russion

Performance Parameters

Name	SKD-0610TW
Lathe Bed	Cast
Working area	1000mm x 600mm x400mm
X Y Z Guide Rail	Square Rail
X Y Z Transmission	Imported Ball Screw
Spindle motor	3.0KW water cooling
Control System	NCstudio control system
Typeset Software	UCANCAM V9
Spindle speed	6000-24000rpm
Reposition Accuracy	+_0.001
Motor	Japan Yaskawa/ Panasonic Servo Motor
Driver	Japan Yaskawa/ Panasonic
Work-holding	Pneumatic clamping
Working speed	30m/min
Working voltage	AC380v/50HZ
Machine Weight	800kg
Tool Diameter	3.175,6,12.7
Application	wood,resin,acrylic,polypropylene,plexiglass,plastic,soft metal,PVC, gypsum,rubber,etc. wood furniture,technic door and window, s chairs, alumium processing,arts and crafts,musical instrument,etc.
