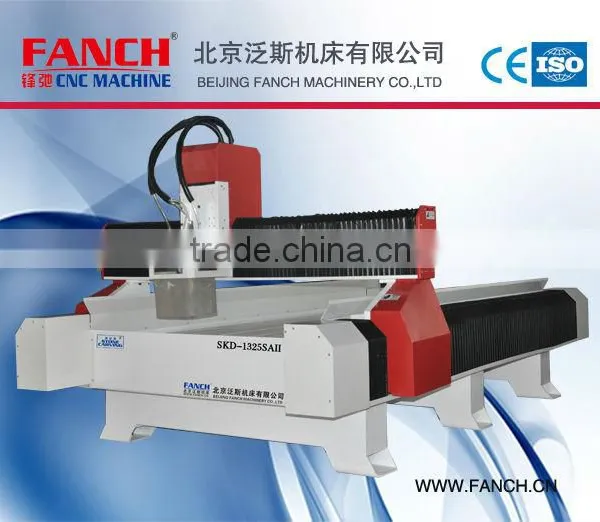

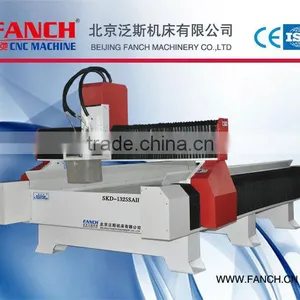

Help CenterNEW SKD-1325SAII CNC Stone Engraving Machine
Related Products
-
SKD-0610tw Cnc 3d Sandstone Stone RouterNegotiableMOQ: 1 Set -
SKD-0412AY Cnc 4d Sandstone Stone Engraving MachineNegotiableMOQ: 1 Set
-
SKD-1325SAD Cnc 3d Sandstone Stone Carving MachineNegotiableMOQ: 1 Set
-
CNC Small Stone Engraving Equipment 6090 2.2KW for Gravestone, MonumentUS$ 5,000 - 66,000MOQ: 1 Piece
-
Jewelery Stone Engraving Machine for Jade Stone, Marble, Gem, Glass, CrystalUS$ 5,000 - 66,000MOQ: 1 Piece
Specifications
FANCH CNC wood engraving machine/stone engraving machineCE and ISO
Hot Sale and Promotion
Low price
coffin CNC engraving machine with 400mm Z axis
coffin engraving machine
With CE
Low Price
Coffin CNC engraving machine with 400mm Z axis
Scope of application:
Our CNC router is widely used in wood, acrylic, foam, soft-metal (such as aluminum, brass etc),
best for stone and so on. And our 1325SA type can cut, engrave, mill and do many processing on above materials.
Features of the machine:
1. The lathe welded use high-quality steel, by secondary quenching processing, upright, support plate, using
aluminum cast process that ensures the high stability.
2. X, Y, Z axis are specially protected by complete dust-proof set up to ensure the rails and gears from damaged by the dust that
produced while working and lengthen life of the parts.
3. Driving rail adopts original Taiwan imported 25mm square lead rail.
4. Z axis adopts Taiwan TBI original coarse pitch precise rubbing screw rod, high precision transmission
4. High performance transducer, high frequency electronic anti-jamming system
5. Equip with China famous brand big torch driving system and motor, and Y axis using double motors.
6. Using high accurate pinion and rack transmission. The highest speed is 30m/min. It can clearly engrave the 1mm small word.
7. Spindle use domestic 3.0KW water-cooing spindle, 6000-24000r/min, fit for long time producing in the woodwork line.
8. Industrial Aluminum table can load up to 2 tons materials.
9. Water tank for water cycle. The water tank can collect the water which is used to cool down the stone during the engraving.
10. Equip with standard America industrial aviation plugs links, soft metal cables sheath, avoids the cable damage situation from the press & bump effectively.
11. Cable adopts YC numerical control machine shielding line, can reciprocate eight million times.
12. Advanced Shanghai NC-studio industrial controlling system is compatible to many dictate formats that can operate
after accident or next day processing so it is very convenient.
13. Manual oil lubrication system, good for the life span of the rails and racks.
14. Ucancam V9 designing software for your design, can be compatible with AutoCAD, Type 3, Artcam, easy to learn and design.
Technical Parameter:
Outer dimension |
1850*3000*1600mm |
X,Y axis travel |
1300*2500mm |
Z axis travel |
>220mm |
Table size |
1340*2500mm |
Table |
Aluminum Table |
Max running speed |
30m/min |
Max engraving speed |
25m/min |
Max feed-in height |
220mm |
Command language |
G code, M code |
Software operating environment |
Windows98/2000/xp |
Power (not include spindle) |
2kw |
Work voltage |
380v/50Hz |
Spindle power |
5.5KW Water Cooling |
Spindle rotating speed |
6000-24000rpm/min |
Work mode |
Stepper Motor |

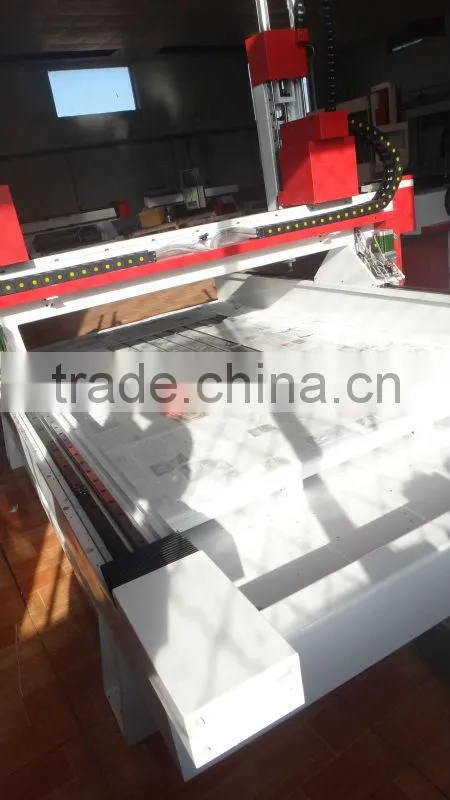

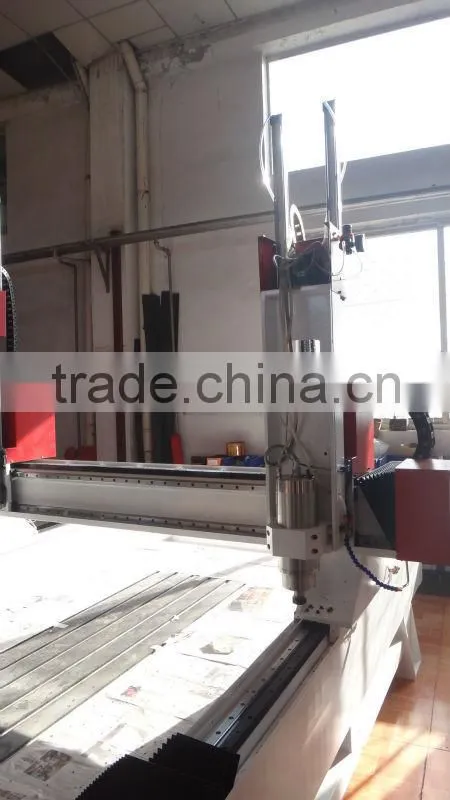

Image in Workshop:
