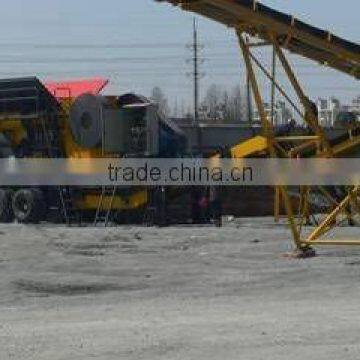

Help CenterMobile Crushing Plant
Related Products
Specifications
This is specially designed for providing stones for road and railway construction.CRUSHING AND SCREENING PLANT SERIES
This series of crushing and screening plants consist of coarse jaw crusher, fine jaw crusher, cone crusher, impact crusher, vibrating feeder, vibrating screen and belt conveyor etc.. These machineries are of advanced structure, good performance, reliable quality(Such as the quality award obtained both from Ministry and Nation for jaw crusher series), and welcome by many customers home and abroad.
It can be divided into three types: fixed, semi-portable and portable type. The capacity can be from 50 to 600t/h. The size of crushed products can be from 0 to 40mm. The classification of size of crushed products can be set and adjusted according to customers’ different needs.
It is reasonable combined for each different capacity and has compact intercross space arrangement in the process design, so they have features of small occupied area, high quality of crushed products, low in quarry dust and they will give you high reward for your investment, also with features of advancement and reliability, easy operation, and high efficiency and energy-saving.
Based on the business principle of “Everything is for meeting customers’ needs”, our company will supply customers with turn-key project service including design, installation and commissioning.
|
Capacity (t/h) |
Main Equipment/Quantity |
|||||||
Hopper |
Feeder |
Coarse Crusher |
Impact Crusher |
Vibrating Screen |
Belt Conveyor(m)
|
Electric Control System |
Total Power(KW) |
|
50 |
1 |
WQB-300×70 |
PE-400 |
PF-A-1010 |
2YKJ-1245 |
90-120 |
1 |
170 |
80 |
1 |
WQB-300×70 |
PE-500 |
PF-C-1214 |
3YKJ-1545 |
120-140 |
1 |
265 |
100 |
1 |
ZSW-380×95 |
PE-600 |
PF-C-1214 |
3YKJ-1545 |
130-150 |
1 |
370 |
150 |
1 |
ZSW-490×110 |
PE-750 |
PF-C-1310 |
3YK-1854 |
180-210 |
1 |
590 |
200 |
1 |
ZSW-490×110 |
PE-800 |
PF-C-1315 |
3YK-2160 |
200-230 |
1 |
720 |
250 |
1 |
ZSW-590×130 |
PE-900 |
PF-C-1310/2 |
3YK-2160/2 |
220-250 |
1 |
770 |
300 |
1 |
ZSW-590×130 |
PE-900 |
PF-C-1315/2 |
3YK-2460/2 |
220-250 |
1 |
920 |
350 |
1 |
ZSW-600×130 |
PE-1000 |
PF-C-1320/2 |
3YK-2460/2 |
220-250 |
1 |
940 |
Note:
- The size of crushed products by the listed crushing and screening plants is from 0 to 40mm.
- The listed crushing and screening plants are suitable for crushing materials whose crushing strength less than 250MPa(such as granite).
- We can design and manufacture the crushing and screening plant according to customers’ special needs.
