Specifications
DMX Console1.Volt:DC12V and DC24V
2.Channel: 3
3.Output power:12V:<144W, 24V:<288w
4.RGB

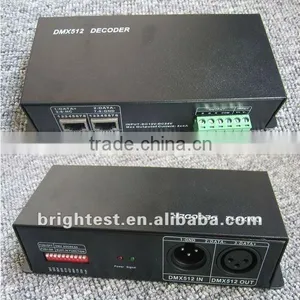

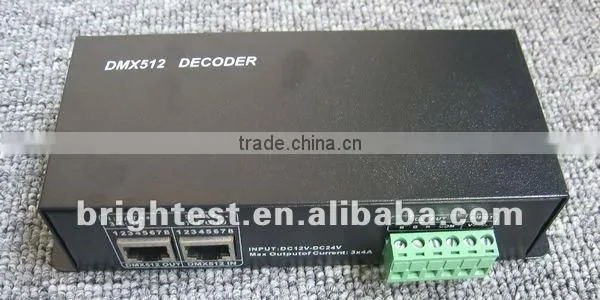

DMX512 DeCoder addressable DMX Controller DMX Console
Parameters:
Working temperature |
-20-60°C |
Supply voltage |
12V~24V |
0utput |
3 channels |
Connecting mode |
common anode |
External dimension |
L164*W65*H40 mm |
Packing size |
L183*W82*H60 mm |
Net weight |
360g |
Gross weight |
410g |
Output gray |
RGB each 256 levels |
Output current |
<4A(each channel) |
Output power |
12V:<144W, 24V:<288W |
Direction for use
This product is in compliance with DMX512 protocol, and compatible autoindex addressing and manual establishment address.
Each universal DMX controller takes up 3 DMX addresses. It adopts 2 ways (autoindex addressing and code switch) to set up the address. When adopting the autoindex addressing, all switches are “off” status. When adopting the code switch to set up address, the 10th bit(FUN) is “off” status, and other 9 bits are binary value code switch which are used to set up the DMX starting address code. The first bit is the lowest order bit, and the ninth is the highest order bit. That can set up 511 address codes. The DMX starting address code is equal to the sum of 1st to 9th bit. If move down one bit of code switch (“ON” set “1”), you can get the placevalue of this bit. If move up (set “0”), the placevalue is 0. For example: if you want to set up DMX starting address code for 73, you should move down the 7th, 4th, and 1st bit of code switch for “1”, and others for “0”, Then the placevalue’s sum of 1st to 9th bit is 64+8+1. That is to say, the DMX512 starting address code is 73.
DMX input/output interface :
