SZ100 RGB Color Controller,RGB LED Controller

Specifications

SZ100 RGB Color Controller,RGB LED Controller
1.Channel: 3
2.Voltage:DC12V-DC24V
3.Power:12V:<216W, 24V:<432W

SZ100 RGB Color Controller,RGB LED Controller

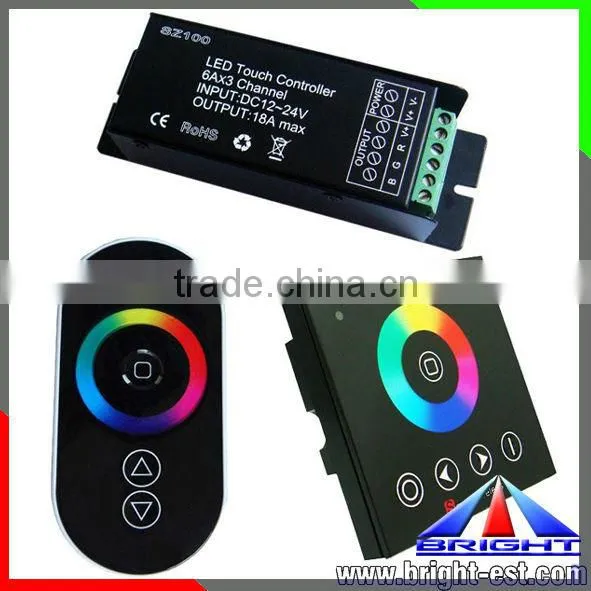

RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through handheld wireless touch remote control and Wall-mounted touch panel remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.



Technical Parameters

Working temperature	-20-60°C
Supply voltage	DC12V~24V
0utput	3 channels
Connecting mode	common anode
External dimension	L127*W41*H32 (mm)
Packing size	L138*W131*H35 (mm)
Net weight	270g
Gross weight	310g
Output gray	256 levels (RGB each)
Output current	<6A(each channel)
Output power	12V:<216W,   24V:<432W
Frequency of RF remote control	433.9MHz



Models in Total

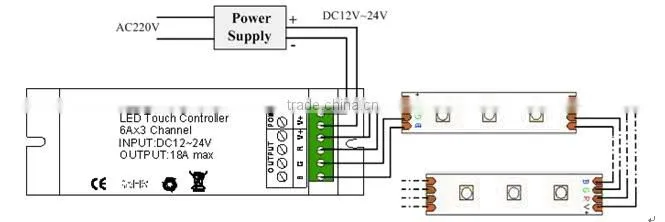

Connection:

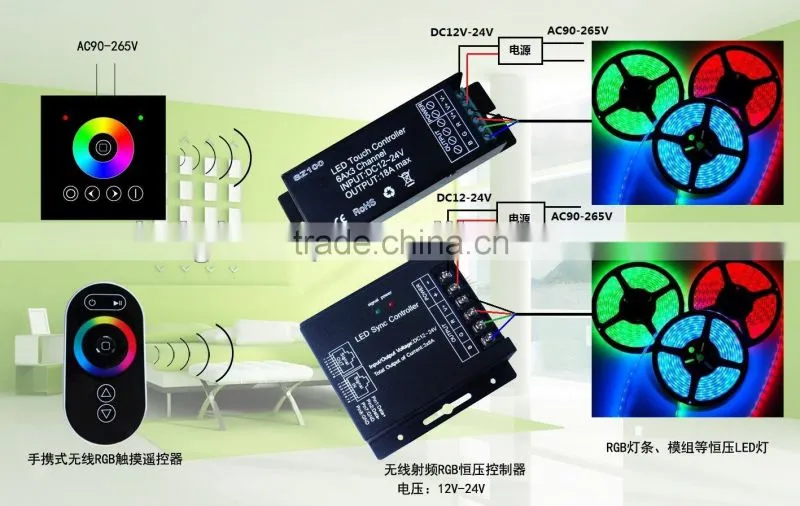

Application:
