Specifications
SZ100-CT,color adjustable Controller,W+WW LED Controller1.Channel: 2
2.Voltage:DC12V-DC24V
3.Power:12V:<144W, 24V:<288W
SZ100-CT, adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, especially design for color temperature adjustable led strip. Adopt handheld wireless touch remote control and Wall-mounted touch panel remote control. 5 function buttons and 1 color temperature ring in the center, all buttons are in the touch form, and the color ring has 128 levels in different color temperature value. Particularly, there is a sense light in the remote control center. It shows the exactly color which been touched. As the led strip is the same. Further, there are 9 dynamic modes in the mode button, and the speed is adjustable. In order to achieve the synchronization of more lamps, RGB Amplifier can be used.
Technical Parameters
Working temperature |
-20-60°C |
Supply voltage |
DC12V~24V |
0utput |
2 channels |
Connecting mode |
common anode |
External dimension |
L127*W41*H32 (mm) |
Packing size |
L138*W131*H35 (mm) |
Net weight |
270g |
Gross weight |
300g |
Output gray |
256 levels |
Output current |
<6A(each channel) |
Output power |
12V:<144W, 24V:<288W |
Frequency of RF remote control |
433.9MHz |
Models in Total
NO |
Patterns |
Remarks |
1 |
Static worm white and cool white |
Brightness is adjustable, speed is unadjustable |
2 |
Worm white andcool white flash |
Speed is adjustable, brightness is unadjustable |
3 |
Worm white andcool white fade |
|
4 |
Worm →cool flash |
|
5 |
Worm →cool fade |
|
6 |
Static worm white,cool white flash |
|
7 |
Static worm white,cool white fade |
|
8 |
Static coo white,worml white flash |
|
9 |
Static coo white,worml white fade
|
Connection:

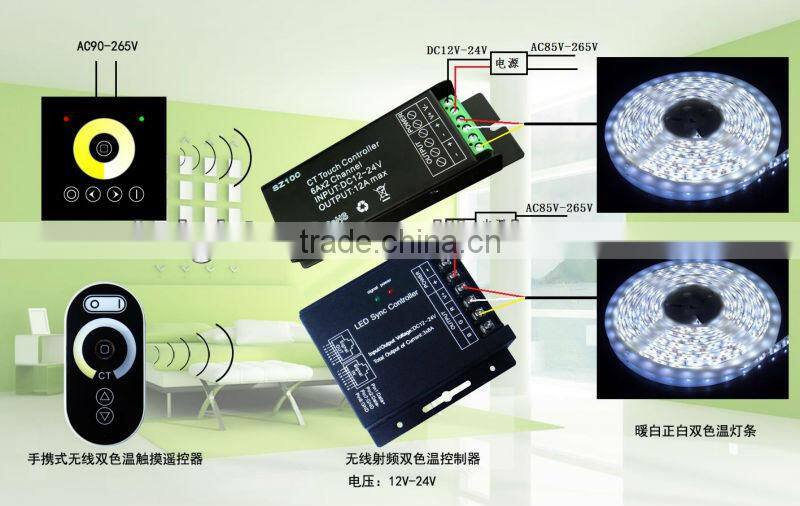

Application:
