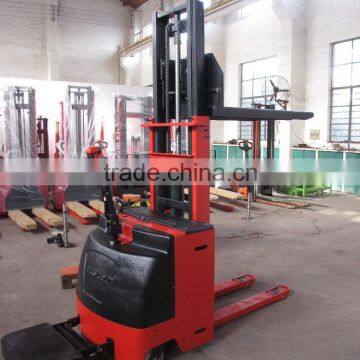

China 1000kg Small Electric Battery Charger Hydraulic Forklift

Name: China 1000kg Small Electric Battery Charger Hydraulic Forklift
Brand: Jetstar
SKU: 110574497
Availability: InStock

US$ 2,900 - 5,800 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Jetstar

Taizhou Jetstar Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Jetstar

Model Number HL10

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 1000kg

Max. Lifting Height 2500mm

Min. Lifting Height 90mm

Fork Length 1150mm

Fork Width 180mm

Overall Dimensions 1988*850*1975mm

Certification CE

After-sales Service Provided Overseas third-party support available

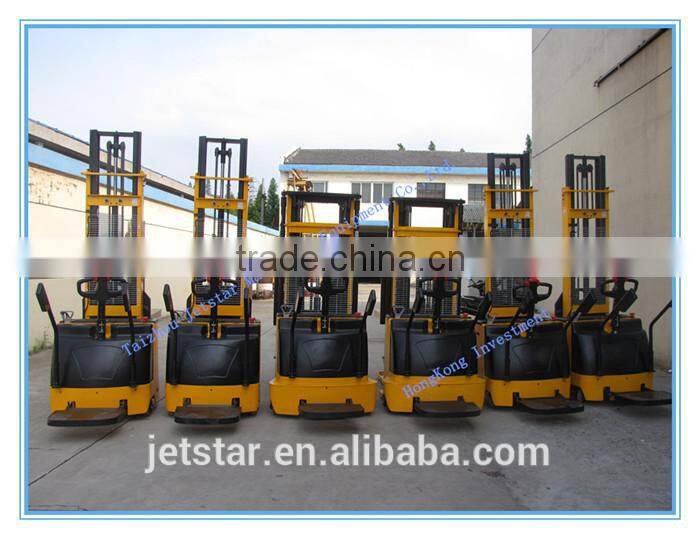

China 1000kg small Electric Battery charger Hydraulic forklift

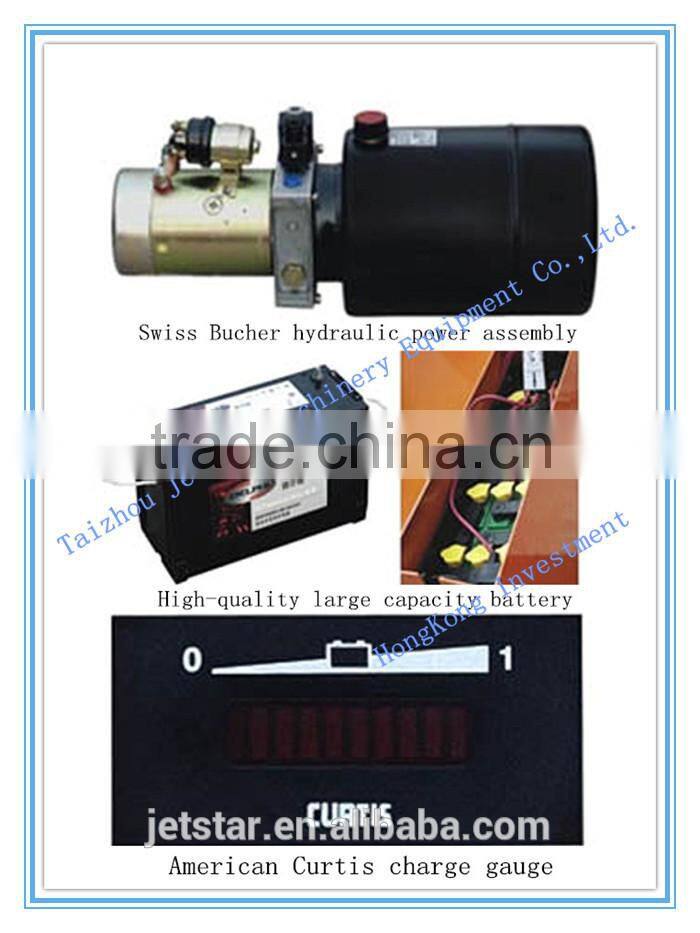

Pictures

Technical Data

General	Model		Unit	HL10	HL12	HL15
	Rated load capacity		kg	1000	1200	1500
	Power			Tractive-type battery
	Operator type			Pedestrian / rider (pedal)
Characteristics	Maximum lifting height		mm	1600	1600	1600
	Lowered height of fork		mm	≤90	≤90	≤90
	Minimum turning radius		mm	1425	1425	1650
	Minimum aisle width		mm	2300	2300	2500
	Minimum ground clearance		mm	30	30	30
	Standard fork length		mm	1150	1150	1150
	Standard fork width		mm	160	175	175
	Fork overall width		mm	560	570	570
	Fork individual width		mm	240	220	220
Chassis	Overall length		mm	1800	1800	1988
	Overall width		mm	850	850	1000
	Mast extended height		mm	1975	1975	1975
	Mast lowered height		mm	1975	1975	1975
Performance	Maximum traveling speed	Laden	km/h	4	4	4
	Maximum traveling speed	Unladen	km/h	6	6	6
	Maximum lifting speed	Laden	mm/h	80	80	80
	Maximum lifting speed	Unladen	mm/h	130	130	130
	Maximum lowering speed	Laden	mm/h	110	110	110
	Maximum lowering speed	Unladen	mm/h	90	90	90
	Gradeability	Laden	%	5	5	5
	Gradeability	Unladen	%	8	8	8
Brake	Braking type			Electromagnetic
Wheel	Wheel type front/rear			Poly/Poly
	Wheels			1×Driven wheel,2×Balance wheel,4×Front wheel
	Balance wheel dimension		mm	Φ156×50	Φ156×50	Φ156×75
	Axis space		mm	1228	1228	1450
Motor	Driving motor		kw	1.2
Motor	Lifting motor		kw	2.2
Battery	Battery(Voltage/Capacity)		V/Ah	12/120×2	12/165	24/210
Control	Control system			Curtis I207a
Weight	Weight		kg	650	690	690
