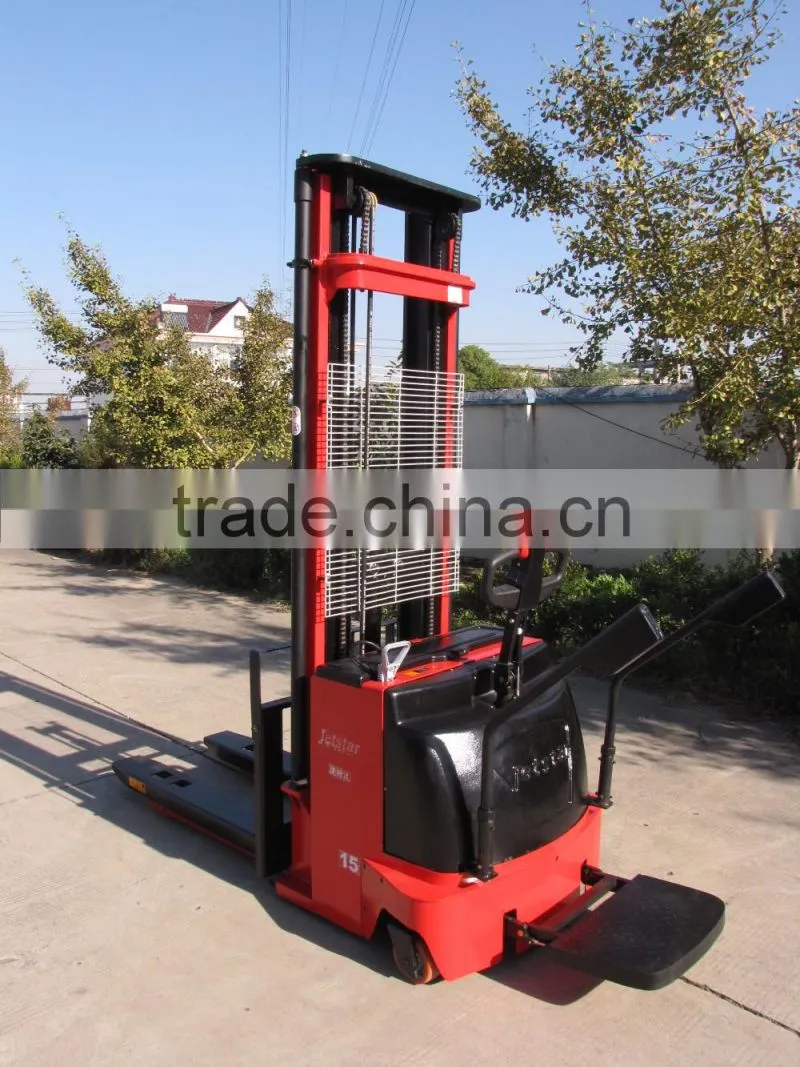

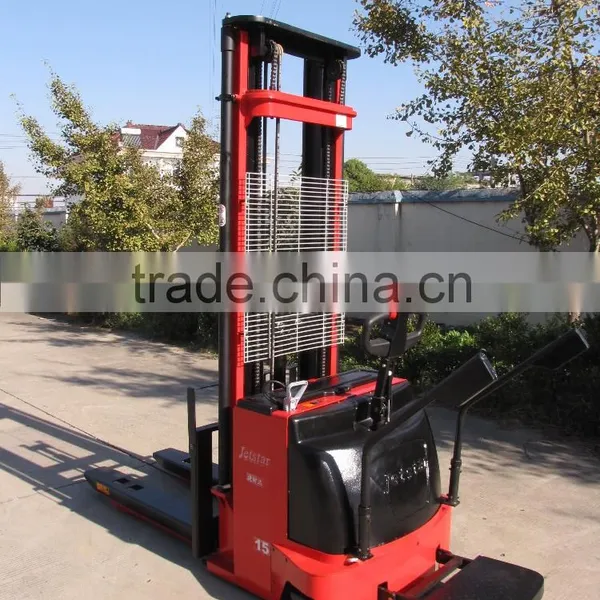

1.5T electric pallet fork lift Stacker for sale
1.5T electric pallet fork lift Stacker for sale are desing to adjust mini stackers to operate in narrow passage and limited space and they are good helper to laod/unload and stack goods in stacking warehouse, supermarket and workshop etc,these trucks have following features and benefits, human system engineering design, continusous y variable drive, wide view mast assembly made of germany stell, maximum lifting height 6 meters, with optional standing plat.
Advantages
- Electronic power steering system,low noise and safety.
- three drop speed mode.
- Drive unit floating bodies with patent design.
- AC driving system,no carbon brush,maintenance free.
- USA CURTIS controller.
- Electromagnetic ,regenerative braking system.
- Automatic lifting limit,proximity switch,long life.
- Permanent warranty.
General |
Model |
Unit |
HL10 |
HL12 |
HL15 |
|
Rated load capacity |
kg |
1000 |
1200 |
1500 |
||
Power |
|
Tractive-type battery |
||||
Operator type |
|
Pedestrian / rider (pedal) |
||||
Characteristics |
Maximum lifting height |
mm |
1600/2500 |
1600/2500/3300/5500 |
2500/3300/5500 |
|
Lowered height of fork |
mm |
≤90 |
≤90 |
≤90 |
||
Minimum turning radius |
mm |
1425 |
1425 |
1650 |
||
Minimum aisle width |
mm |
2300 |
2300 |
2500 |
||
Minimum ground clearance |
mm |
30 |
30 |
30 |
||
Standard fork length |
mm |
1150 |
1150 |
1150 |
||
Standard fork width |
mm |
160 |
175 |
175 |
||
Fork overall width |
mm |
560 |
570 |
570 |
||
Fork individual width |
mm |
240 |
220 |
220 |
||
Chassis |
Overall length |
mm |
1800 |
1800 |
1988 |
|
Overall width |
mm |
850 |
850 |
1000 |
||
Mast extended height |
mm |
1975 |
1975 |
1975 |
||
Mast lowered height |
mm |
1975 |
1975 |
1975 |
||
Performance |
Maximum traveling speed |
Laden |
km/h |
4 |
4 |
4 |
Unladen |
km/h |
6 |
6 |
6 |
||
Maximum lifting speed |
Laden |
mm/h |
80 |
80 |
80 |
|
Unladen |
mm/h |
130 |
130 |
130 |
||
Maximum lowering speed |
Laden |
mm/h |
110 |
110 |
110 |
|
Unladen |
mm/h |
90 |
90 |
90 |
||
Gradeability |
Laden |
% |
5 |
5 |
5 |
|
Unladen |
% |
8 |
8 |
8 |
||
Brake |
Braking type |
|
Electromagnetic |
|||
Wheel |
Wheel type front/rear |
|
Poly/Poly |
|||
Wheels |
|
1×Driven wheel,2×Balance wheel,4×Front wheel |
||||
Balance wheel dimension |
mm |
Φ156×50 |
Φ156×50 |
Φ156×75 |
||
Axis space |
mm |
1228 |
1228 |
1450 |
||
Motor |
Driving motor |
kw |
1.2 |
|||
Lifting motor |
kw |
2.2 |
||||
Battery |
Battery(Voltage/Capacity) |
V/Ah |
12/120×2 |
12/165 |
24/210 |
|
Control |
Control system |
|
Curtis I207a |
|||
Weight |
Weight |
kg |
650 |
690 |
690 |
|
this specification only for reference(1.6m height), please contect me, if you have interest
