Ceramic corona discharge ozone generator for drinking water treatment
- 1200 Set / Sets per Month
- Guangzhou
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Globalozone | Model Number: | GO-AC |
Product Description
Ceramic corona discharge ozone generator for drinking water treatment
**********************************************************************
Features:
1.It is the patent product of our company.
2.Ozone output: 2G/Hr 3G/Hr, 5G/Hr, 6G/Hr
3.Using with adjustable electric card, that’s Ozone output could be regulated from 20% to 100% based customer’s demand.Or using with enclosed electric card, which is best for water proof.
4.We are using imported ceramic powder for ceramic ozone tube; SS316L internal electrode; PVDF material connectors for ensuring several years running without ozone leakage.
5.Internal & external electrodes are both using with aluminum radiator for heating dissipation.
6.Extremely high ozone concentration, about 28-68Mg/L for different pure oxygen flow, different working condition.
7.Low power consumption, power consumption rate of 8~10KW.h/kgO3.
**********************************************************************
Specifications

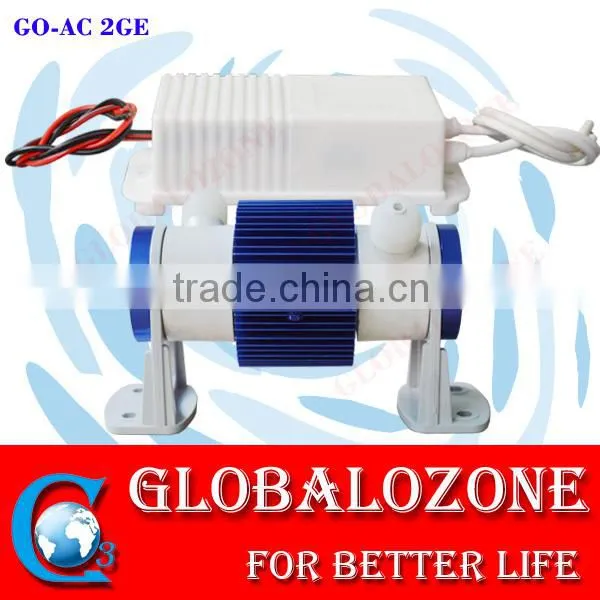

GO-AC 2G/Hr 3G/Hr ceramic corona discharge ozone generators
Item | Unit | GO-AC | ||||
2GE | 2GA | 3GE | 3GA | |||
Oxygen feed flow rate | LPM | 0.5-2 | 1-3 | |||
Ozone concentration | Mg/L | 50.3-28 | 65-28 | |||
Ozone output | G/Hr | 1.5-3.36 | 3.9-5.04 | |||
Power | Kw | 0.040 | 0.050 | |||
Output frequency | KHz | 7-15 | ||||
High voltage output | V | 3600V Peak to Peak | ||||
Power supply dimensions | mm | 138*56*41 | 157*71*65 | 138*56*41 | 157*71*65 | |
Location of mounting holes of power supply | mm | 127(D4) | 141.5*63(D3) | 127(D4) | 141.5*63(D3) | |
Cooling method | / | Air cooling for internal and external electrode | ||||
Fitting size for air & ozone | mm | ID6, ED8 | ||||
Ozone output adjustable range | % | / | 20-100 | / | 20-100 | |
Dew point | ℃ | -45 | ||||
Line power supply | V/Hz | 220V/110V 50Hz/60Hz | ||||
Ozone tube dimensions | mm | 162×60 | 182×60 | |||
Mounting hole foot print of ozone tube | mm | 135×28(D5) | 154×28(D5) | |||
Ozone tube weight | Kg | 0.29 | 0.34 | |||
Power supply weight | Kg | 0.17 | 0.33 | 0.17 | 0.33 |
Working conditions: Ambient temperature: 25℃, Oxygen concentration: >99%, Dew point: >-45℃.

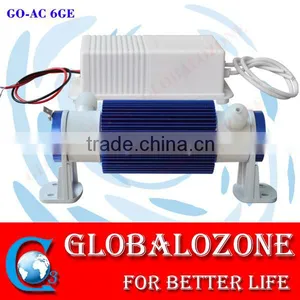

GO-AC 5G/Hr 6G/Hr ceramic corona discharge ozone generators
Item | Unit | GO-AC | |||
5GE | 5GA | 6GE | 6GA | ||
Oxygen feed flow rate | LPM | 1-3 | 1-2.5 | ||
Ozone concentration | Mg/L | 67-44 | 50-39 | ||
Ozone output | G/Hr | 4.02-7.92 | 3-5.85 | ||
Power | Kw | 0.066 | 0.085 | ||
Output frequency | KHz | 7-15 | |||
High voltage output | V | 3600V Peak to Peak | |||
Power supply dimensions | mm | 159*66*51 | 157*71*65 | 159*66*51 | 157*71*65 |
Location of mounting holes of power supply | mm | 146(D4) | 141.5*63(D3) | 146(D4) | 141.5*63(D3) |
Cooling method | / | Air cooling for internal and external electrode | |||
Fitting size for air & ozone | mm | ID6, ED8 | |||
Ozone output adjustable range | % | / | 20-100 | / | 20-100 |
Dew point | ℃ | -45 | |||
Line power supply | V/Hz | 220V/110V 50Hz/60Hz | |||
Ozone tube dimensions | mm | 200×60 | 227×60 | ||
Mounting hole foot print of ozone tube | mm | 172×28(D5) | 182×28(D5) | ||
Ozone tube weight | Kg | 0.40 | 0.43 | ||
Power supply weight | Kg | 0.32 | 0.33 | 032 | 0.33 |
Working conditions: Ambient temperature: 28℃, Oxygen concentration: >99%, Dew point: >-45℃.
**********************************************************************

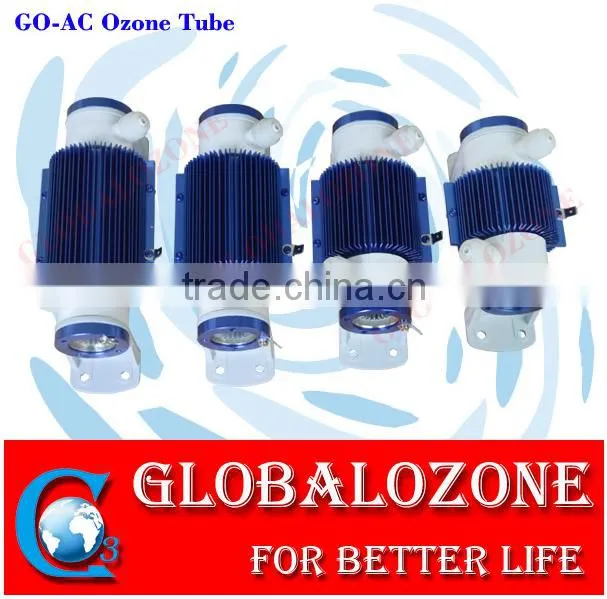

Air cooled ceramic ozone corona discharge ozone generator parts
**********************************************************************
With adjustable electric card, ozone output can be adjusted 20%-100% by customer
With enclosed electric card ensuring water proof
**********************************************************************

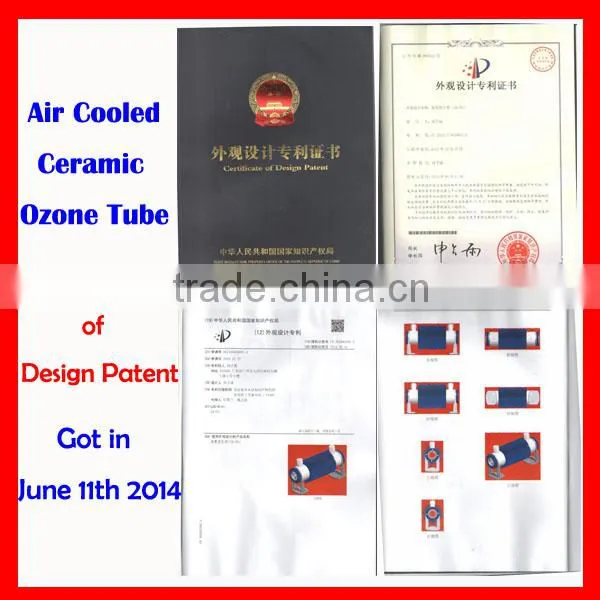

Our ceramic corona discharge ozone generator get the Design Patent
**********************************************************************
Why choose our ceramic corona discharge ozone generator
**********************************************************************
Packaging
A) Inner layer: plastic bag
B) Middle layer: EPE(Expand aple poly ephylene)
C) Outer Layer: carton/composite wooden cases
Prompt delivery
1. 3-7 days for portable ozone generator order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Shipping could be courier, airline or sea.
**********************************************************************
Payment terms
**********************************************************************
About US
WHAT WE DO?
We Provide high-quality ozone generator for:
Ozone generator and accessories to wholesalers
Retailers and oneline shops (Ebay, Amazon...)
OEM-The custom-made ozone generator and accessories are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
2M silicone tube and 2PCS air stone gift for any ozone machine order.
Report on the making process.
Marketing feedbacks tracing.
**********************************************************************
All of our products are favored and trusted by customers with contemporary design (simplicity, innovation, practicability, multifunction and fashion), convenient operate, durable and its competitive price.
Please don't hesitate to contact with us, you are strongly expecting and welcoming to be the one of our partners in the coming day!
**********************************************************************
Factory & Office
**********************************************************************
Tips:
If you will use it for water treatment, please use with check valve together for preventing water into ozone/oxygen machine.
