Fruits Oranges Cleaning Drying and Grading Production Line

Fruits Oranges Cleaning Drying and Grading Production Line thumbnail-3

Fruits Oranges Cleaning Drying and Grading Production Line thumbnail-4

Fruits Oranges Cleaning Drying and Grading Production Line thumbnail-5

Fruits Oranges Cleaning Drying and Grading Production Line thumbnail-6

Fruits Oranges Cleaning Drying and Grading Production Line photo-1

Fruits Oranges Cleaning Drying and Grading Production Line photo-2

Fruits Oranges Cleaning Drying and Grading Production Line photo-3

Fruits Oranges Cleaning Drying and Grading Production Line photo-4

Fruits Oranges Cleaning Drying and Grading Production Line photo-5

Fruits Oranges Cleaning Drying and Grading Production Line photo-6

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Wanxin

Model Number n/m

Type Sorter

Voltage Customized

Power(W) 35kw

Weight 12000kg

Dimension(L*W*H) 13.80*12.00*2.50m

Certification CE Certificate

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Potato washing and grading Line with capacity of 2-3T/hour

Ⅰ Fruit Cleaning, Waxing, Drying and Grading line includes the following components

No	Name	Quantity	Picture
1	Cleaning machine and upgrade platform portion	1 set
2	Air dry machine	1 set
3	Automatic loader for grading machine	1 set
4	Conveying belt	1 set
5	Single-lane Electronic fruit grading machine	1 set

Ⅱ Introduction of each part

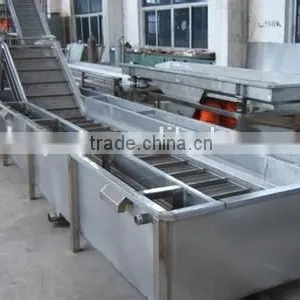

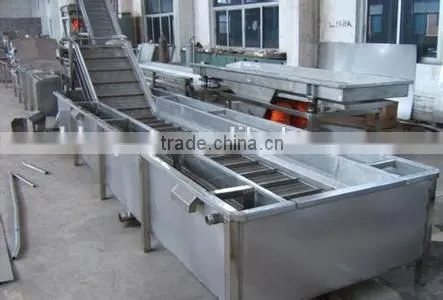

A Cleaning machine and upgrade platform portion

a. Power:2.25kw,380v,50Hz,Stepless speed reducer

b. Structure:stainless steel water tank,select and upgrade platform, high pressure water pump,and spray head.

c. Installed with stainless steel water tank with filter for recycling water. High-pressure water pump is used to wash the fruits, like surf bath, to make sure the fruit is clean and orderly upgrade. (water tank size:4500×1340×770mm)

d. After cleaning in the stainless steel water tank, the fruits will be elevated to the straight selection platform, the plastic roller move forward while rotate, which will make it easier for the inferior fruits to be selected out. While taking advantage of the spray-head spray the fruit surface, to remove residues (fruit elevator:3000×1100×1420mm)

e. The use of rotation brush rollers and secondary spray rinse the fruit surface,spray at the sixth brush roller to eliminate attachment

f. During the conveying process, the brushes will clean out the water on the fruit, and they are also used to brighten the fruit. Four cooling fans are installed in the middle of the brushes for drying the fruits

B Automatic loader for grading machine

a. Power:0.55kw,380v,50Hz,frequency control

b. Size:2600×1450×1250mm

c. Use conveyor belt and rubber-tired to load fruit to the fruit grading machine conveyor belt.

C Conveying belt

Size:2100×300×1200mm

E Single-lane Electronic fruit grading machine

a. Power:1.5kw ,380v,50Hz

b. Size:7300×1900×1400mm

c. Speed:15000-21000pcs/hour

d. Electronic controlling system:Siemens color touch screen display, PLC, Weighing module, Weighing sensor

e. Grade:8 grades,8 compartments

f. Operating system:English/Chinese Interface

Ⅲ Type of control

b. Electronic fruit grading machine :frequency control

IV Type of motor

b. Electronic fruit grading machine

(1) Loading portion

Reducing Motor

Power:0.75kw

Voltage:380V/50Hz

Quantity:1set

(2) Main machine

Reducing Motor

Power:1.5kw

Voltage:380V/50Hz

Quantity:1set

V Main parts and manufacturers(If you have special request on them, please list and let me know, we will change according need, and inform if any price changes.)

Number	Name	Unit	Quantity	Origin and brand
1	Motor	Unit	8	Zhejiang
2	Frequency converter	Unit	2	Hiconics
3	PLC	Piece	1	Siemens
4	Color touch screen	Piece	1	Siemens
5	Weighing MC module	Piece	1	Siemens
6	Weighing sensor	Piece	1	Toledo
7	Temperature controller	Piece	1	Omron
8	Solid-State relay	Piece	7	yuyuan
9	Photoelectric switch	Piece	1	South Korea

VI List of tools spare parts

Number	Name	Unit	Quantity
1	Electromagnet	Piece	2
2	Grading fruit tray	Piece	20
3	Brush roller	Piece	2
4	Plastic roller	Piece	10
5	Bearing	Piece	2
6	Temperature controller	Piece	1
7	Photoelectric switch	Piece	1
8	Solid-State relay	Piece	2
9	Inner hexagon spanner	Set	1
10	Various kinds solid wrench	Set	1
