Potato washing and grading Line with capacity of 2-3T/hour
Ⅰ Fruit Cleaning, Waxing, Drying and Grading line includes the following components
No | Name | Quantity | Picture |
1 | Cleaning machine and upgrade platform portion | 1 set | |

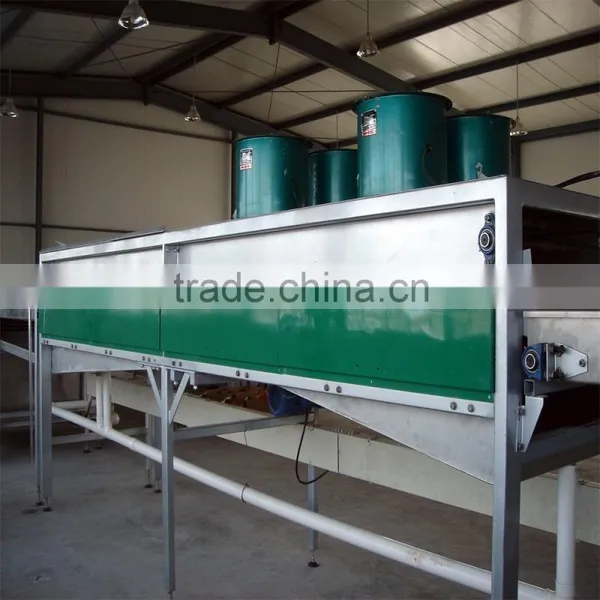

2 | Air dry machine | 1 set | |
3 | Automatic loader for grading machine | 1 set | |
4 | Conveying belt | 1 set | |
5 | Single-lane Electronic fruit grading machine | 1 set |
Ⅱ Introduction of each part

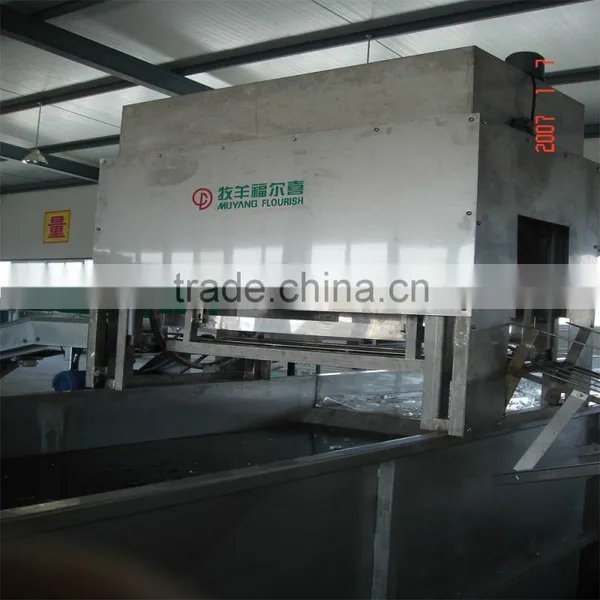

A Cleaning machine and upgrade platform portion
a. Power:2.25kw,380v,50Hz,Stepless speed reducer
b. Structure:stainless steel water tank,select and upgrade platform, high pressure water pump,and spray head.
c. Installed with stainless steel water tank with filter for recycling water. High-pressure water pump is used to wash the fruits, like surf bath, to make sure the fruit is clean and orderly upgrade. (water tank size:4500×1340×770mm)
d. After cleaning in the stainless steel water tank, the fruits will be elevated to the straight selection platform, the plastic roller move forward while rotate, which will make it easier for the inferior fruits to be selected out. While taking advantage of the spray-head spray the fruit surface, to remove residues (fruit elevator:3000×1100×1420mm)

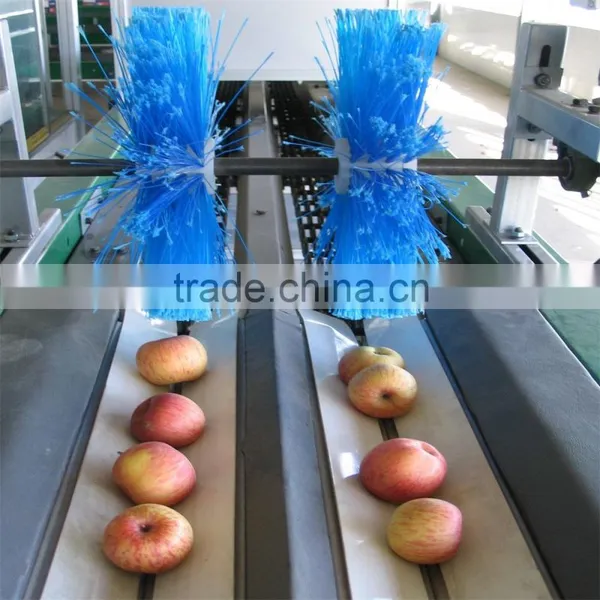

e. The use of rotation brush rollers and secondary spray rinse the fruit surface,spray at the sixth brush roller to eliminate attachment

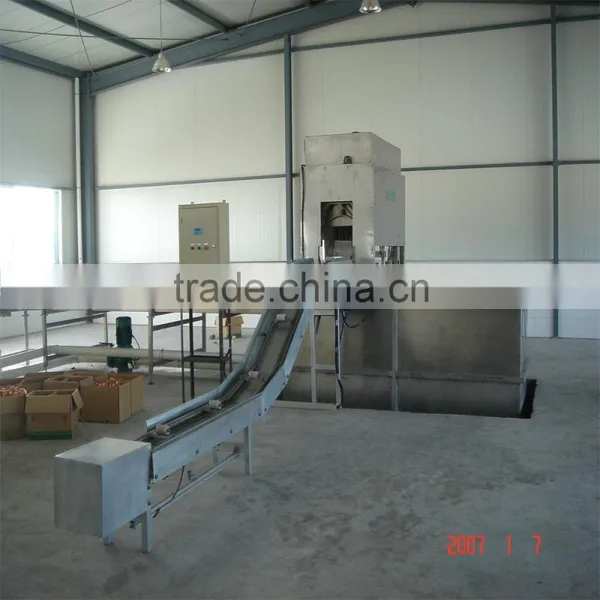

B Automatic loader for grading machine
a. Power:0.55kw,380v,50Hz,frequency control
b. Size:2600×1450×1250mm
c. Use conveyor belt and rubber-tired to load fruit to the fruit grading machine conveyor belt.
C Conveying belt
Size:2100×300×1200mm

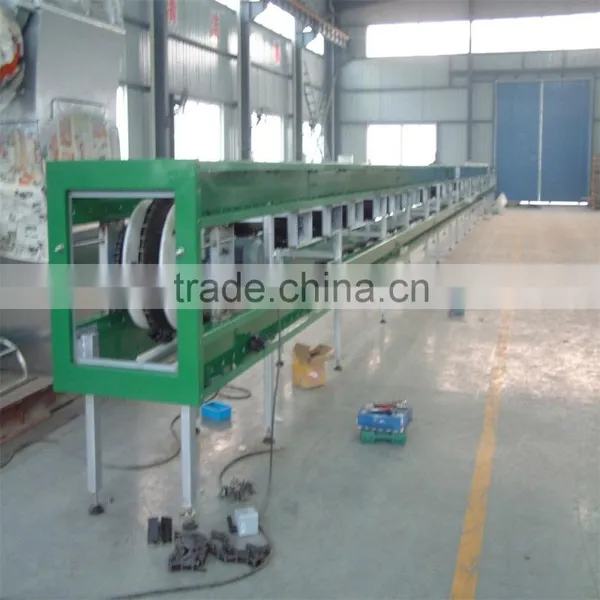

E Single-lane Electronic fruit grading machine
a. Power:1.5kw ,380v,50Hz
b. Size:7300×1900×1400mm
c. Speed:15000-21000pcs/hour
d. Electronic controlling system:Siemens color touch screen display, PLC, Weighing module, Weighing sensor
e. Grade:8 grades,8 compartments
f. Operating system:English/Chinese Interface
Ⅲ Type of control
b. Electronic fruit grading machine:frequency control
IV Type of motor
b. Electronic fruit grading machine
(1) Loading portion
Reducing Motor
Power:0.75kw
Voltage:380V/50Hz
Quantity:1set
(2) Main machine
Reducing Motor
Power:1.5kw
Quantity:1set
V Main parts and manufacturers(If you have special request on them, please list and let me know, we will change according need, and inform if any price changes.)
Name | Unit | Quantity | ||
1 | Motor | Unit | 8 | Zhejiang |
2 | Frequency converter | Unit | 2 | Hiconics |
3 | PLC | Piece | 1 | |
4 | Color touch screen | Piece | 1 | Siemens |
5 | Weighing MC module | Piece | 1 | Siemens |
6 | Piece | 1 | ||
7 | Temperature controller | Piece | 1 | |
8 | Solid-State relay | Piece | 7 | yuyuan |
9 | Photoelectric switch | Piece | 1 |
VI List of tools spare parts
Name | Unit | Quantity | |
1 | Electromagnet | Piece | 2 |
2 | Grading fruit tray | Piece | 20 |
3 | Brush roller | Piece | 2 |
4 | Plastic roller | 10 | |
5 | Bearing | Piece | 2 |
6 | Piece | 1 | |
7 | Piece | 1 | |
8 | Piece | 2 | |
9 | Inner hexagon spanner | Set | 1 |
10 | Various kinds solid wrench | Set | 1 |
--------------------------------------------------------------------------------------
