10G ceramic ozone tubes
- 1100 Set / Sets per Month
- Guangzhou
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | globalozone | Model Number: | GO-AC |
Product Description

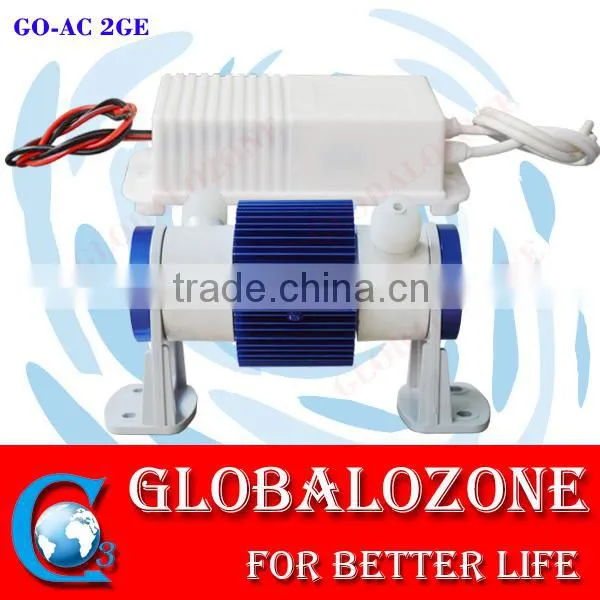

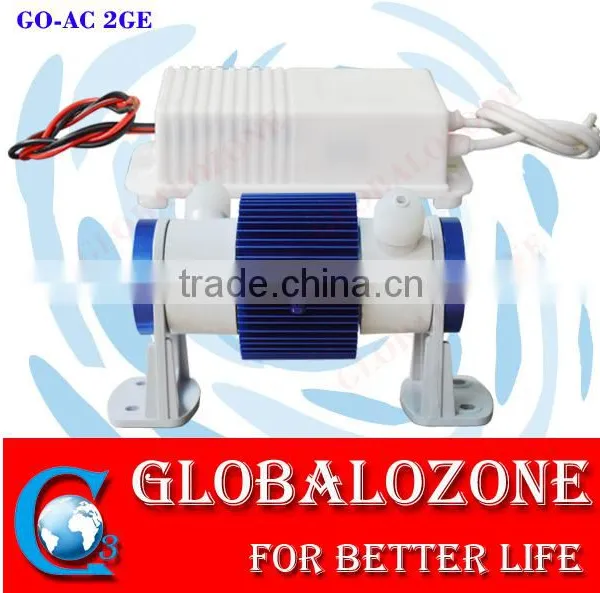

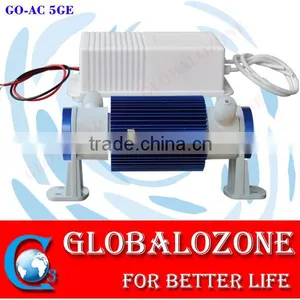

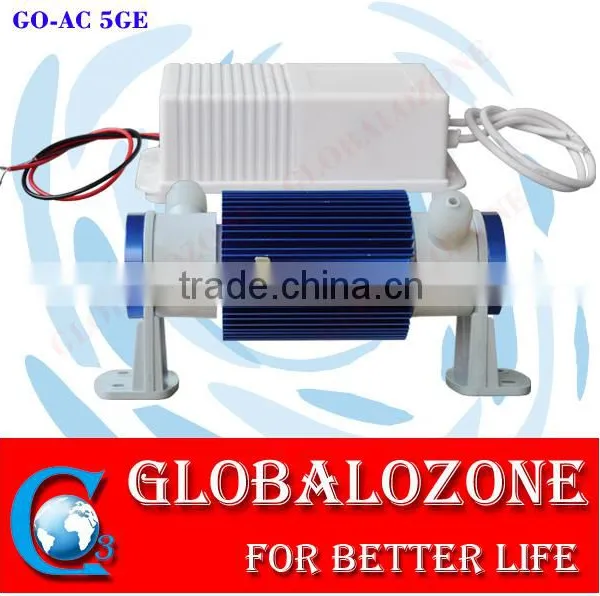

10G ceramic ozone tube
***************************************************************
Features:
1. It is the patent product of our company.
2. Ozone output: 2G/Hr 3G/Hr, 5G/Hr, 6G/Hr
3. Using with adjustable electric card, that’s Ozone output could be regulated from 20% to 100% based customer’s demand.
Or using with enclosed electric card, which is best for water proof.
4. We are using imported ceramic powder for ceramic ozone tube; SS316L internal electrode; PVDF material connectors for ensuring several years running without ozone leakage.
5. Internal & external electrodes are both using with aluminum heat sink for heating dissipation.
6. Extremely high ozone concentration, about 28- 68Mg/L for different pure oxygen flow, different working condition.
7. Low power consumption, power consumption rate of 8~10KW.h/kgO3.
***************************************************************
Specifications
Item | Unit | GO-AC | ||||||||||
2GE | 2GA | 3GE | 3GA | 5GE | 5GA | 6GA | ||||||
Oxygen feed flow rate | LPM | 0.5-2 | 1-3 | 1.2-3 | 1-2.5 | |||||||
Ozone concentration | Mg/L | 50.3-28 | 65-28 | 60-32 | 50-39 | |||||||
Ozone output | G/Hr | 1.5-3.36 | 3.9-5.04 | 4.32-5.76 | 3-5.85 | |||||||
Power | Kw | 0.040 | 0.050 | 0.080 | 0.085 | |||||||
Output frequency | KHz | 7-15 | ||||||||||
High voltage output | V | 3600V Peak to Peak | ||||||||||
Power supply dimensions | mm | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 165×65×52 | 200×75×83 | 215×87×85 | ||||
Location of mounting holes of power supply | mm | 152(φ5) | 190.5×57 | 152(φ5) | 190.5×57 | 152(φ5) | 190.5×57 | / | ||||
Cooling method | / | Air cooling for internal and external electrode | ||||||||||
Fitting size for air & ozone | mm | IDφ6, EDφ8 | ||||||||||
Ozone output adjustable range | % | / | 20-100 | / | 20-100 | / | 20-100 | |||||
Dew point | °C | -45 | ||||||||||
Line power supply | V/Hz | 110/220V 50/60Hz | ||||||||||
Ozone tube dimensions | mm | 162×60 | 182×60 | 200×60 | 227×60 | |||||||
Mounting hole foot print of ozone tube | mm | 140×28(φ5) | 160×28(φ5) | 177×28(φ5) | 204.5×28 (φ5) | |||||||
Ozone tube weight | Kg | 0.50 | 0.53 | 0.56 | 0.65 | |||||||
Power supply weight | Kg | 0.59 | 0.76 | 0.59 | 0.76 | 0.59 | 0.76 | 1.10 |
Noted:
Working conditions: Ambient temperature:20°C, Oxygen concentration: >99%, Dew point: >-45°C
Our Quality
Packaging
A) Inner layer: plastic bag
B) Middle layer: EPE(Expand aple poly ephylene)
C) Outer Layer: carton/composite wooden cases
Prompt delivery
1. 3-7 days for portable ozone generator order;
2. 10-30 days for industrial/middle size ozone generator order;
3. Shipping could be courier, airline or sea.
Payment terms
About US
We Provide high-quality ozone generator for:
Ozone generator wholesalers
Retailers and oneline shops (Ebay, Amazon...)
OEM-The custom-made ozone generator are available. Upon customer's idea, drawings, photos etc.
ODM-The modification of the ozone generator after customer's selection is accepted.
Excellent after-sales service:
1 year warranty again the manufacture defect, offer life time consultation on problems occurred.
2M silicone tube and 2PCS air stone gift for any ozone machine order.
Report on the making process.
Marketing feedbacks tracing.
Tips:
110V 220V are both available, when you make order pls kindly note us the voltage, thanks a lot!
