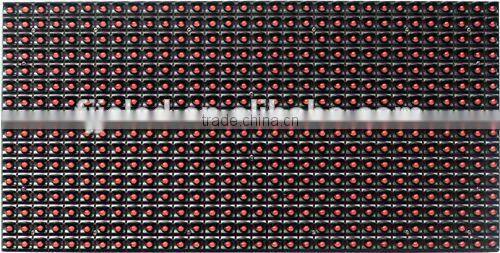

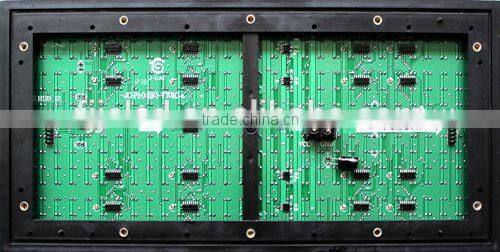

P10 red color ourdoor LED display module
We are the professional manufacturer of led displays in Quanzhou, Fujian, close to Xiamen Port. The products we can offer you, besides the P10 outdoor monochrome red text info led display sign for outdoor Use, also include:
1. P3P4P5P6...indoor full color led display;
2.P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3.Indoor/outdoor/semi-outdoor single/dual color led panel etc.
Technical Parameters
P10 outdoor monochrome red text info led display sign
Technical Parameters
| Pixel Pitch | 10mm |
| Module Size(W×H) | 320mm*160mm |
| Module Resolution(W×H) | 32*16dots |
| Pixel Density | 10,000 (dots/ m2) |
| Lamp Origin | Epistar |
| Pixel Configuration | 1R |
| Led Specification | DIP546 |
| Gray Level/ Color | 256 lever / red |
| Brightness | ≥ 2,500 cd/m2 |
| Best view angle | Horizon: 120° Vertical : 90° |
| Control method | asynchronous OR synchronous |
| Scanning method | 1/4 constant voltage |
| Power consumption | Average: 250w/m2 Max : 450w/m2 |
| Best viewing distance | 10~150m |
| Lifespan | ≥100,000 H |
| MTBF | ≥10,000H |
| Frame frequency | ≥60HZ |
| Refresh frequency | ≥300HZ |
| System Working Temperature | –20°C ~ 50°C |
| System Working Humidity | 10 ~ 90%RH |
| Power | 5V/40A |
Automotive panel :
The cross screen:
Package ways:
Die casting aluminum cabinet:
Our service: 1).Your inquiry related to our products or prices will be replied in 24hrs. 2).Well-trained and experienced staffs to answer all your enquires in fluent English . 3).OEM&ODM, any your customized screen we can help you to design and put into product. 4).Distributer ship are offered for your unique design and some our current models . 5).Protection of your sales area, ideas of design and all your private information.
Company Introduction JINGCAI photoelectric consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre -sale tracking service system and truly customer-centric marketing model. Through the effects and collaboration of all employees of the company,the products are exported to Europe,North America,Australia,the Middle East,South Asia ,and the establishment of a stable distribution agents in the respective regions.Company in good faith with the desire talents and distribution to join the LED display system and common development ,and make due contribution to the development of LED display system.
workshop:
Company certificaftons:
Brightness test:
Our Factory is a Technology Based Firm of MOST China Patented 3D Full Color Led Display Owner Cooperative Factory of National Led Test Center,Peking University,Xiamen University and Fuzhou University
| Main Markets | Total Revenue (%) | Main Product(s) |
|---|---|---|
| Northern Europe | 23.45% | LED Display Systems |
| North America | 20.40% | LED Display Systems |
| South Asia | 18.40% | LED Display Systems |
| Western Europe | 16.35% | LED Display Systems |
| Eastern Europe | 15.30% | LED Display Systems |
| Southeast Asia | 6.10% | LED Display Systems |
| Total Revenue: | USD 2,362,000.00 | |
|---|---|---|
| Total Export Revenue: | USD 2,362,000.00 | |
| Export Percentage: | 21% - 30% |
Business Terms
| Accepted Delivery Terms: | FOB, CIF, EXW, DDU | |||
|---|---|---|---|---|
| Accepted Payment Currency: | USD, EUR, CNY | |||
| Accepted Payment Type: | T/T, L/C, Escrow | |||
| Nearest Port: | Xiamen, Quanzhou, Fuzhou | |||
| Language Spoken: | English, Chinese, Spanish, French, Russian | |
|---|---|---|
| No. of Employees in Trade Department: | 3-5 People | |
| Average Lead Time: | 14 Day(s) | |
| Export Mode: | Using an agent |
