Home > Consumer Electronics > LED Display > Indoor LED Display > Large Amount of Information Semi-outdoor Display Led P10

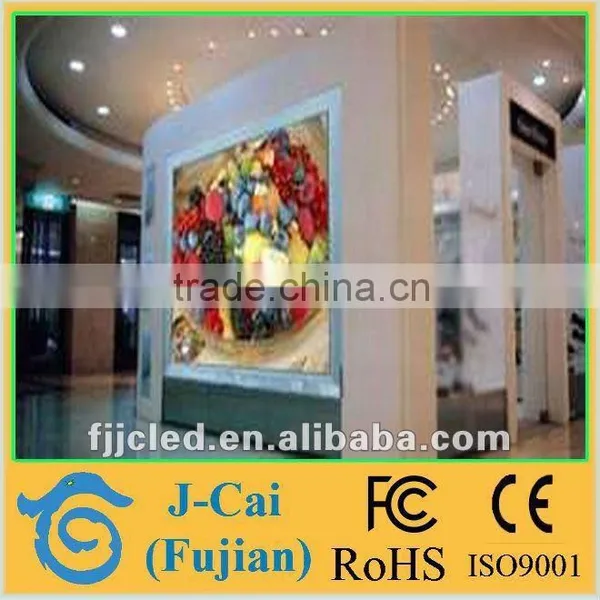

Large Amount of Information Semi-outdoor Display Led P10

Name: Large Amount of Information Semi-outdoor Display Led P10
Brand: Jing Cai
SKU: 110541125

Large Amount of Information Semi-outdoor Display Led P10 thumbnail-1

Large Amount of Information Semi-outdoor Display Led P10 photo-1

US$ 400 - 600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Jing Cai

Model Number:

p10

Contact Supplier Request Quote Chat Now

Fujian Brilliantopto Co., Limited

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Jing Cai

Model Number p10

Usage Semi-outdoor

Tube Chip Color Other, 1R1B.1R1G

Display Function Video

Specifications

semi-outdoor display led p10
1.CE,RoHS,FCC
2.low consumption
3.quality insuranced by CPIC

Semi outdoor display led p10

pixel: 10mm

Physical Pitch: 10mm

color: 1R1G,1R1B

Unit Board Rssolution: 32*16

Cell Board Dimension: 320*16 0

Module density: 10000dots/sqm

Features:

> Good price: our price lower than 10% of the market for the introduce of the full automatic production reducing the cost of labor and management.

> Best quality tube: the GREE, SILAN, OPTO, EPISTAR, assurring the high brightness and long life span.

> Light: Aluminum carbinet: saving the feight cost and convenient for installation.

> Stable performance: our most basic guarantee: the aging time exceed 24H, malfunction dot rate less than 0.0001,MTBFmore than 1000H,

> support different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment.

> quality insuranced by CPIC,

> 3 years QA

Technical Parameters of P10Semi- Outdoor Full Clor Display
Item	Speciation
Physical Pitch	10mm
Pixel Configuration	1R1G 1R1B
LED Specification	346
Cell Board Dimension	320*160
Unit Board Dimension(Length*Width)	32*16
Dot ensity (Dot/m²⁾	10000
Brightness(cd/m²⁾	≥6000
The Best Visual Distance	38m
Scanning Mode	Static constant-current
Peak Power Consumption	1600
Visual Angle	Horizon 110Degree, Vertical 90Degree
Grey Scale	Red,Green,Blue,Each 4096 Levels
Display Colors	4096 ^∧3Pixels
Brightness Adjustment	Manual opration,Red,Blue 256Levels,Automatically8 Level Adjustment.
Control Method	in SYNCHRONISM(off-control System,S-UTP Neting Twine OR optical Fiber Transimission)
Lamp Beads Life	One Hundred Thousand Hours
Operating Pressure	AC110v/AC220V±15%50HZ/60HZ
Control Distance	less Than 140 Meter(No Replaying),Multimodes 500Meters/Single Mode.
Systematic Operating Ambient Temperature	–30°C to50°C
Systematic Operating Ambient Humidity	10% to 90%RH
Cabinet Material	Frame/Cabinet

our factory founded in 2005, registered capital 20.18 million, owned workshop area 20000 sqms, A Tech Based Firm of Ministry of Science & Tech of china, specializing in making No.1 Costeffective LED display, Launched latest p10 module series by improving optical design enhancing the Efficacy 10% above & avoid Screen Blurred effectively, p10 door lintel semi-outdor full color led display is very competitive: first factory launch patented 3D led display on LED CHINA 2012,

We attach great importance in technology & a cooperative factory of National LED Test Center, PKU,XMU&FZU, Joins us, we'll be your strong support and work for long-term biz relationship and friendship.
