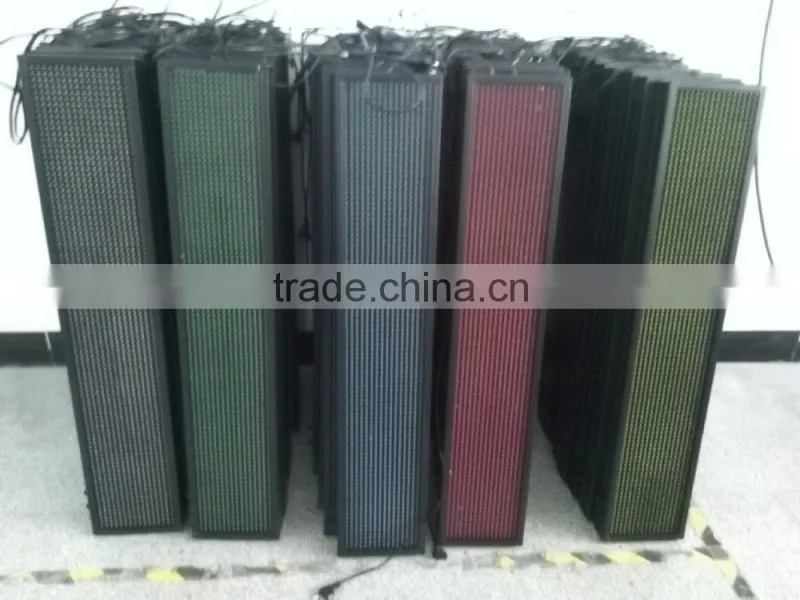

Ali P10 Single Yellow Led Sign With High Bright Ness!

Name: Ali P10 Single Yellow Led Sign With High Bright Ness!
Brand: Jingcai
SKU: 110537857
Availability: InStock

US$ 6 - 10 MOQ: 1 Piece

Key Specifications

Place of Origin:

Fujian, China

Brand Name:

Jingcai

Model Number:

P10 1R

Fujian Brilliantopto Co., Limited

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Brand Name Jingcai

Model Number P10 1R

Usage Outdoor

Tube Chip Color Red

Display Function Graphics

Pixels 10mm

Screen Dimension 1*n M/4*3M/9*6M

Specifications

P10 Single color 1R led digital display
1.visual distance :10m
2.display color: Red

Product Description

P10 Single color 1R led digital display

Technical Parameters of P10 Semi-outdoor Single Clor Display
Item	Speciation
Physical Pitch	10mm
Pixel Configuration	1yellow

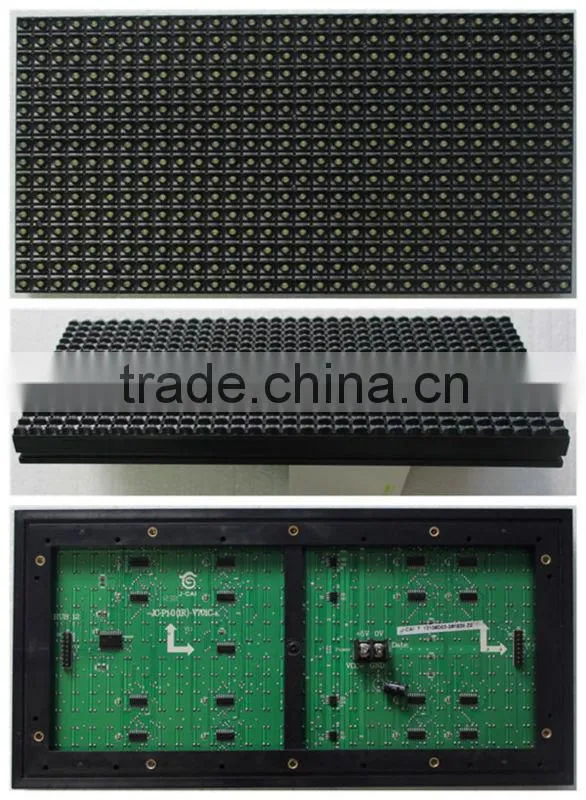

Cell Board Dimension	320*160
Unit Board Rssolution(Length*Width)	32*16
Dot ensity (Dot/m²)	10000
Brightness(cd/m²)	2500
The Best Visual Distance	10--50m
Scanning Mode	1/4Scanning
Peak Power Consumption	400
Visual Angle	Horizon 120Degree, Vertical 100Degree
Grey Scale	White Each4096 Levels
Brightness Adjustment	Manual opration,Eed,Blue 256Levels,Automatically8 Level Adjustment.
Control Method	Synchronous with Computer Display
Lamp Beads Life	One Hundred Thousand Hours
Operating Pressure	AC110v/AC220V±15%50HZ/60HZ
Control Distance	less Than 140 Meter(No Replaying),Multimodes 500Meters/Single Mode.
Systematic Operating Ambient Temperature	–30°C to 50°C
Systematic Operating Ambient Humidity	10% to 90%RH
Cabinet Thickness	100mm
Cabinet Style	Frame/Cabinet
