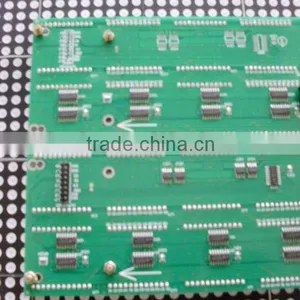

P3.751r1g led digital display module
- 5000 Piece / Pieces per Month
- xiamen
- T/T
- HD,warm receiption and quick sale!!!P4.751r led digital display module
- Alibaba High Resolution New Products Screen intdoor Rental P6 LED Wall
- P16 dual RED digital display rock bottom price!
- Whosale!! led display for stage wall with factory price!
- Price off!!!!!!!!!! 2015smd 3in1 IndoorP7.62Full color rgb led video wall on sale
- NEW!!! P6 full color led display screen board
Product Details
Place of Origin: | Fujian, China | Brand Name: | Jingcai | Model Number: | P3.75 1R1G |
Usage: | Outdoor | Tube Chip Color: | Other, red&green | Display Function: | Graphics |
Pixels: | Other, 3.75 | Screen Dimension: | fit in 4*3m or 9*6m screen |
Packaging Details
As for client's request , Air shipping next day.
Product Description
Specifications
P10 Single color 1R led digital display for outdoor1.visual distance :3.75mm
2.display color: Red&Green
P10 Single color 1R1G led digital display
Technical Parameters of P10 Semi-outdoor Single Clor Display | |
Item | Speciation |
Physical Pitch | 3.75mm |
Pixel Configuration | 1R1G |
Cell Board Dimension | 304*152 |
Unit Board Rssolution(Length*Width) | 64*32 |
Dot ensity (Dot/m2) | 71,111 |
Brightness(cd/m2) | 1500 |
The Best Visual Distance | 4m--25m |
Scanning Mode | 4Scanning |
Peak Power Consumption | 400 |
Visual Angle | Horizon 120Degree, Vertical 100Degree |
Grey Scale | White Each4096 Levels |
Brightness Adjustment | Manual opration,Eed,Blue 256Levels,Automatically8 Level Adjustment. |
Control Method | Synchronous with Computer Display |
Lamp Beads Life | One Hundred Thousand Hours |
Operating Pressure | AC110v/AC220V±15%50HZ/60HZ |
Control Distance | less Than 140 Meter(No Replaying),Multimodes 500Meters/Single Mode. |
Systematic Operating Ambient Temperature | –30°C to 50°C |
Systematic Operating Ambient Humidity | 10% to 90%RH |
Cabinet Thickness | 100mm |
Cabinet Style | Frame/Cabinet |
Hot Sales!!! professional LED outdoor display/ led display board
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our led display have proceeded aging test before shipment,
and we guarantee to use our products safety.
4: All the led display are inspected before shipment, If any problems happen,
do not hesitate to contact with us, our team will do our best to solve for customer
within 48hours.
The Products we supplied including :
1. P1.9/P2.5/P3/P4/P5/P6/P10...indoor full color led video wall screens;
2. P6/P8/P10/P12/P12.5/P16/P20/P25...outdoor full color led screens;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
professional manufacturer of LED display system and lighting products which founded in 2005;
Own workshop area 40,000 squarmeter, including new branch factory founded in 2013;
Branch office and agents all over china.
Our Factory located in Quanzhou ,and which is close to Xiamen .Welome to visit !
Company Profile
Jingcai (Fujian) Photoelectric Co., Ltd. was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
