Home > Products > indoor single color LED display > Wholesale Indoor Single Red Color Dot Matrix 5.0/P7.62 Bus LED Display

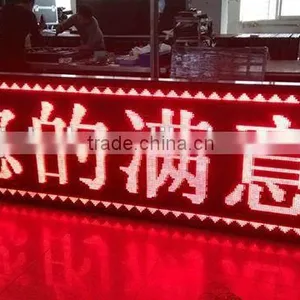

Wholesale Indoor Single Red Color Dot Matrix 5.0/P7.62 Bus LED Display
- 10 Piece / Pieces per Month
- XIAMEN
- T/T D/P D/A Credit Card
- Seven color led signs P10 indoor 1r/g/b with high brightness
- 3 colors scrolling led display sign/module P10 outdoor IP65
- full color hanging led display P10 indoor/semioutdoor led display
- Wireless programable led display sign board with wholesale price
- LED SIGN 10mm indoor/semioutdoor use manufacturer price
- Ali hot sale programmable led name badge/led display tag
Product Details
Place of Origin: | Fujian, China | Brand Name: | J-CAI | Model Number: | P7.62-R |
Usage: | Indoor | Tube Chip Color: | Red | Display Function: | Graphics |
Pixels: | Other, 7.62mm | Screen Dimension: | Customized |
Packaging Details
Carton box or customized with Red Color P7.62 Bus LED Display package.
Product Description
Specifications
Indoor Red Color P7.62 Bus LED Display1: Low consumption
2: Wider viewing angle
3: Stability
Wholesale Indoor Single Red Color Dot Matrix 5.0/ P7.62 Bus LED Display
1: Easy install;
2: Light weight;
3: Energy-saving;
Technical Parameters
Spot Diameter | 5.0mm |
Pixel Pitch | 7.62mm |
Module Size(W×H) | 484mm*242mm |
Module Resolution(W×H) | 64*32 dots |
Pixel Density | 17,222 (dots/ m2) |
Lamp Origin | Epistar |
Pixel Configuration | 1R |
Led Specification | SMD |
Brightness | ≥ 2,000 cd/m2 |
Best view angle | Horizon: 120° Vertical : 90° |
Control method | asynchronous OR synchronous |
Scanning method | 1/16constant current |
Power consumption | Average: 150w/m2 Max : 250w/m2 |
Best viewing distance | 4~20m |
Lifespan | ≥100,000 H |
MTBF | ≥10,000H |
Frame frequency | ≥60HZ |
Refresh frequency | ≥480HZ |
System Working Temperature | –20°C ~ 50°C |
System Working Humidity | 10 ~ 90%RH |
Power | 5V/40A |
Product Show
Application
Brilliant Optoelectronic Co., Ltd
Brilliant Optoelectronic CO,LTD was founded in 2005, which is a national high-tech enterprises specialized in LED display products R&D, production, sale and engineering services. Brilliant will be committing to provide more cost-effective, more energy-efficient, and greener LED optoelectronic products, contributing to building a green home.
Jingcai Group
Equipments
Assembly Area (inclduing aging process and cabinet)
Certifications
1: Warranty: 2 years.
2: Service time: 24 hours*7 days.
3: All of our led display have proceeded aging test before shipment,
and we guarantee to use our products safety.
4: All the led display are inspected before shipment, If any problems happen,
do not hesitate to contact with us, our team will do our best to solve for customer
within 48hours.
Besides Red Color P7.62 Bus LED Display , Also Include:
1. P1.9/P2.5/P3/P4/P5/P6...indoor full color led display video;
2. P6/P8/P10/P12/P12.5/P16/P20/P25...outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc.
More Products introduce:
Thanks for your time, welcome to contact us for more information.
Skype: Susie-brilliantopto
Company Profile
Jingcai (Fujian) Photoelectric Co., Ltd. was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
