Specifications
HANNIU Laser Cutting&Engraving1.good for cutting all the no-metal materials
2.high speed cutting speed
3.digital control

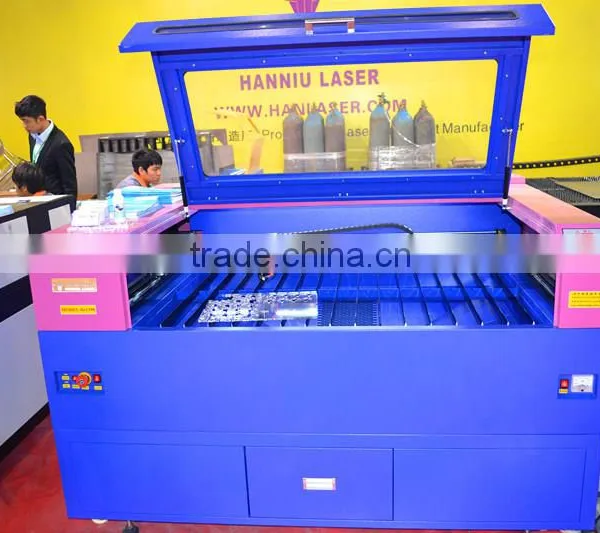

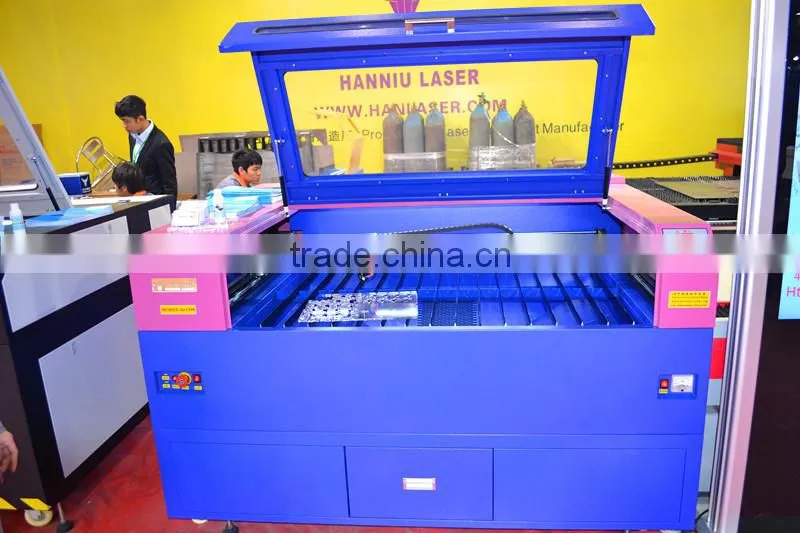

wool leather cutting CO2 laser cutter machine from Hanniu K1390
Details of the machine
Specifications:
Control system: |
DSP control system |
Laser type: |
Sealed CO2 glass laser tube |
Working area: |
1300*900mm |
Laser power: |
80w/100w/120W/130w/150w/180w |
Pass-thru doors: |
Allow to cut extremely long materials(max thickness 35mm) |
Interface: |
USB connection ( Work in Windows XP, 2000,Vista,7) |
Memory: |
1Gb Buffer Memory |
Driver system: |
Stepper motor |
Auxiliary equipments: |
Exhaust-fan, air-exhaust pipe |
Laser Tube life hours: |
3000 Hours |
Repeating precision: |
±0.05mm |
Moving system: |
CNC controlling units |
Cooling mode: |
Water-cooling and protection system |
Engraving speed: |
0-64000mm/min(stepless speed regulating) |
Working voltage: |
AC110/220±10% 50/60Hz |
Whole power: |
<1250W |
Operating temperature: |
0-45°C(32° - 113° F) |
Operating humidity: |
5%-95% |
Controlling software: |
Original hanniu software |
Graphic format supported: |
BMP,PLT,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF, TIF,TGA,PCX |
Compatible software: |
Auto CAD, CoreIDraw 12 |
Resolution: |
User controlled 100-500DPI(standard model), up to 1000DPI(high resolution attachment) |
Machine dimension: |
1800*1400*1000mm |
Packing dimension: |
1900*1600*1250mm |
Net weight: |
280kg |
Gross weight: |
320kg |
Packing: |
stronger wooden case |
Applicable Matericals
Wood,paper,leather,cloth,organic glass,resin,acrylic,wollens,plastic,rubber,ceramic,tile,crystal,bowlder,bamboo,non-metal etc.
Applicable Industry
Cloth embroide fabric toy,fabricture,glove,bag,leather,advertising,decoration,electric product,rubber,acrylic product,middle density,board etc non-metal sheet precision cutting &engraving.
Feature Description:
(1)The software can support AutoCAD/CorelDRAW/CAD/CDR and other graphical software
(2)The USB interface can support heat play & pluy
(3)Quick data transitting
(4)Chinese&English edition liquid display can make it easy for user to operate
Standard accessories:
1) 1×Air pump for Air Assist ( for blowing off debris as the laser engrave or cut)
2) 1×Exhaust fans with Tube ducts (install inside machine)
3) 1×Industrial chiller
4) 1×USB Cable (connecting PC and laser)
5) 1×DVD (including software, guiding videos etc)
6) 2×Power cables
Optional accessories:
1) High resolution(for engraving extremely high quality photos, even 3D photos).
2) Rotary (for engraving round items).
3) New red dot design(make the laser beam visible).
4) Motorized up and down worktable.
Samples of the macine
Features:
1,USB offline control system and interface.
2,small noise, home making with anhydrous alarm and automatic protection features.
3,dust, pollution prevention design.
4,high-precision die casting and flying optics design.
5,adopts high quality aluminum, professional model.
welcome to our factory
The exhibition of canton fair
We will take part in the canton fair and shanghai fair every year, we have the high repulation in this area, we sell our products to all over the world
The celebrating of 2013
welcome to visit our other machines
FIBER and YAG laser cutting machine for metal and stainless steel and other non-metal products cutting
Laser marking machine for metal and non-metal products marking
laser cutting machine for acrylic and leather and other
Package:
Address: Buiding 2 WangGang Changshui Industrial Baiyun District Guangzhou China
TEL:+ 86 13922247841
Web: https://img13.fr-trading.com/
we pack it in strong wooden case
Thank you for your visting our website.
Any interested, Please contact us
