6KVA 10KVA Mining Explosion Proof Intrinsically Safe Load Center

Name: 6KVA 10KVA Mining Explosion Proof Intrinsically Safe Load Center
Brand: DIANGUANG
SKU: 110522191
Availability: InStock

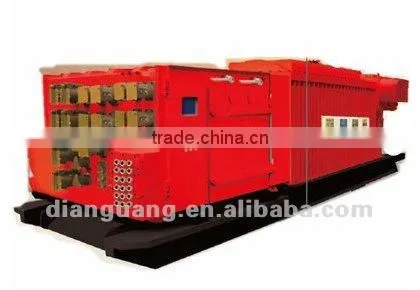

6KVA 10KVA Mining Explosion Proof Intrinsically Safe Load Center thumbnail-1

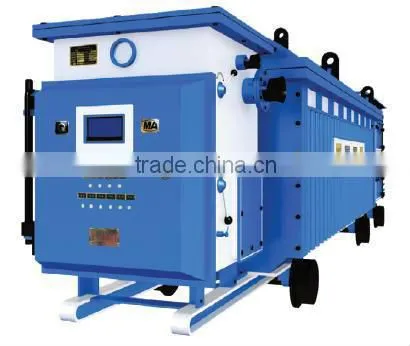

6KVA 10KVA Mining Explosion Proof Intrinsically Safe Load Center photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

DIANGUANG

Model Number:

KJSGZD3150~4000/6~10/3.5,1.2(A)

Contact Supplier Request Quote Chat Now

Dianguang Explosion Protection Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name DIANGUANG

Model Number KJSGZD3150~4000/6~10/3.5,1.2(A)

Purpose

Applicable to large mechanized coal mine , transport and other large comprehensive equipment load, set mobile substation, vacuum distribution device, load switch and protection device for multi voltage large integrated devices, it has characteristic of strong power, multi-loop multi voltage output, takes up small area , concentrated communication etc.

Features

The split type structure design, seamless electrical connection;
Multi voltage multi-circuit design, realize the whole working face air control;
The key components are original matching, strong compatibility;
Load switch modular design, full function, interchangeable and Single reversing; each circuit is isolated ,an arc does not affect the neighborhood;
Adopts imported original 64 high-speed chip microcomputer intelligent control system, realize the complete three-dimensional protection device, processing digital information fast;
All load loop with intelligent logic control mode, individual use, also can be used with other linkage, atresia, logic operation;
The load switch module can realize independent reversing function, single reversing, mass reversing;
Industrial control computer realize each parts centralized communication, through the computer network port or serial upload, convenient for centralized control, remote monitoring requirements

Mining Explosion-proof Intrinsically safe high voltage vacuum switch

Rated voltage (V)		Frequency	Rated current(A)	Current setting range
3300,1140	3150,4000	50HZ	outlet 12*400A,six-circuit 1140,six-circuit 3300	10-400A adjustable,step length 1A
operating handle operation module is connected, break the main circuit, the disconnect switch of the main circuit has mechanical electrical interlocking, the contactor will separate from the main bus till it break; mechanical interlocking open the front door after all modules break from the bus
Main circuit vacuum contactor	connect capacity (times)	Break capacity(times)	Limit breaking capacity(times)	Electrical endurance(10000 times)
Main circuit vacuum contactor	4000A/50times	3200A/50Times	4500A/3Times	AC3/30,AC4/3
Intrinsically Safety plug input voltage AC36V, output parameters of the maximum open-circuit voltage of AC20V, the maximum short-circuit current 136mA.Remote control cable length ≤300m,distributed inductance≤0.3mH, distributed capacitance ≤0.03uF
Control mode		Single control, on-line control (control time arbitrarily set, maximum 99.99s, 0.1s minimum), single item double speed control;automatic switching, double item double speed control
Combination switch double speed switching time		Low-speed a high-speed conversion time 75-100 ms

Mining Explosion-proof safe dry transformer

Rated total capacity(KVA)	800.1000.1250.1600.2000. 2500.3150.4000
Rated voltage and the tap voltage	High-voltage	high voltage subsection	Tapping range of high voltage	Link group label
Rated voltage and the tap voltage	6KV,10KV	3.45,1.2 or 1.2,0.693	+- 5%	Dynlly0(d11) or Yyn0y0(d11)
No-load loss (W)	6KV:2050.2350.2750.3350.3800.4500.5300.6100 10KV:2300.2600.3100.3800.4500.5200.6100.7000
1.Load loss and short circuit impedance is 145°C(heat insulation levels and H reference temperature) of value; 2.Short circuit impedance for 100% capacity parameters after conversion. 3.Capacity allocation according to the customer demand can also use other allocation scheme.
