Purpose
Used in coal mine or underground where exists methane compound gases and dangerous explosive gases, plays the control and protect role in the circuit of AC50Hz, 10kV,6kV rated voltage,630A Rated current .Device has a, b, c, d four forms of structure in order to meet the usage modes such as closing circuit, contact, feeder, league table, direct control.
Features
Adopt micro-monitor integrated device, full Chinese backlit LCD display, real-time showing voltage, three phase current, etc;

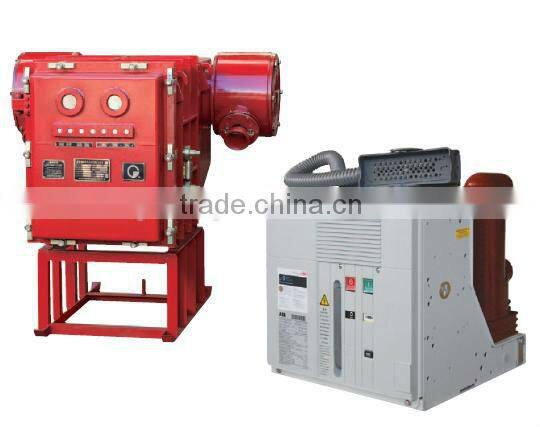

The main breaking component use VD4 made by ABB, high ability of breaking.
With various protective functions: overload, short circuit, leakage, insulation monitoring, over-voltage, under-voltage;
With stop skipping level trip function, avoid widespread power failure due to short circuit.
With electricity measurement function;
With reliable mechanical and electrical atresia, remote control tripping, emergency tripping devices to ensure safety;
Standard RS485 communication interface attached in KJ254 mining power monitoring system makes power distribution automatically, bringing about remote-measure, telecommunication, remote-control, remote regulate,
playing the functions of remote opening and closing , long-distance meter reading to realize full automatically management.
Technical Data
Type |
PJG-/6(A) |
PJG-/10(A) |
Rated Current(A) |
630.500.400.315. 200.100.75.50 |
630.500.400.315. 200.100.75.50 |
Rated Voltage(KV) |
6 |
10 |
Rated short-circuit breaking current (KA) |
25 |
25 |
4Seconds Thermal Stabilization Current(KA) |
25 |
25 |
Mechanical Life (Times) |
20000 |
20000 |
Times(multiple) of operating over voltage |
<3 times of peak of phase voltage |
<3 times of peak of phase voltage |
Intrinsically safe parameters |
Uo:AC23V,Io:130mA |
Uo:AC23V,Io:130mA |
