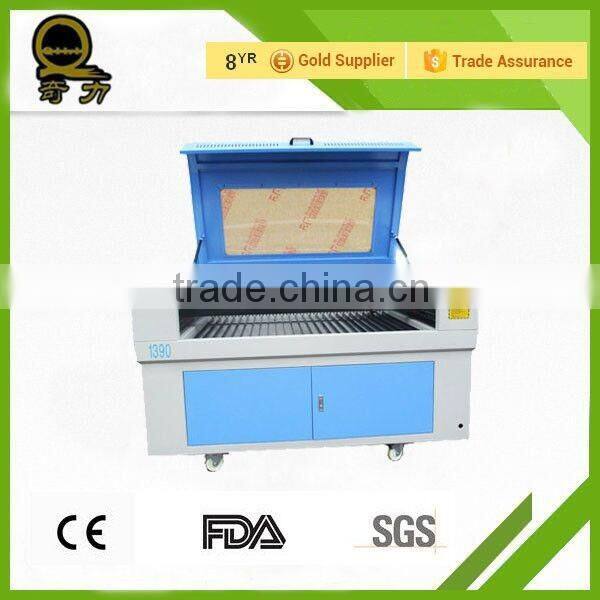

Shandong Jinan Manufacturer Wood engraving machine CO2 laser power Reci tube 80W paper plates machine
1.Specifications
reci laser tube Laser Cutting Mahine
1.good for cutting non-metal materials
2.able to division cutting
3.with CE certificte
2.Machine characteristics
1.QILI series of laser engraving-cutting machines adopt new-type hi-speed laser tube,which make beam more stable than common laser tube,the service life of the laser tube can reach 1000 hours.
2.Compared with common laser engravers,QL serious of laser engravers adopt more scientific design of machine-body,higher strength steel frame structure,which make strength forty percent more higher,never deformable.
3.Humanized and mosr modernized design of appearance reflects caring idea of QILI, it is simple to operat and maintanence.
4.Advanced DSP control system and special motion control ship make the machines cut curve continuously and rapidy,the selection function of the shortest path makes efficiency higher.
5.All machined are configurated with U-disk offline control system,so it is more simple and easier to operat.
6.The red-light positioning device can indicats process site of laser head to avoid trouble of manual position.
3.Technical Specification
Model |
QL-1610 |
Effective area |
1600*1000mm (customerized available) |
Laser power |
60w,80w,100w,130w,150w,180w |
Laser type |
10.6um,co2 sealed glass laser tube |
Cooling mode |
Water cooling |
Engraving scanning speed |
0-60000mm/min |
Cutting speed |
0-30000mm/min |
Laser energy control |
1-100% software setting |
Mini-shaping character |
Chinese character2.0*2.0mm,English1.0*1.0mm |
Max-scanning precision |
2500DPI |
Positioning precision |
0.01mm |
Supported graphic format |
DSP PLT BMP DXF AI |
Supported software |
Tiandao embroidery,photoshop,coreldraw,autoCAD |
Division cutting yes or no |
Yes |
power |
AC110V-220V+10%,50-60HZ |
Driving system |
Stepper motor |
Optional configuration |
Lift table,honeycomb table,rotary,double laser heads. |

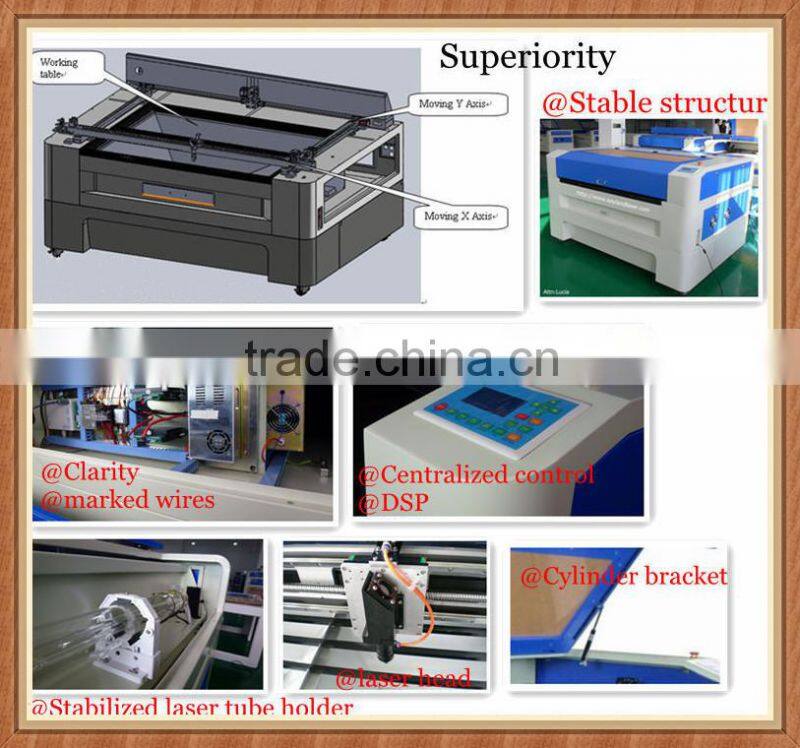

4.Machine details
5.Samples show
6.After-sale service:
1.one year free warranty, main products are free of charge when problem happened during the guarantee period.
2.free training course at our factory with professional engineers.
3.we provide the consumable parts at agent price when you need replacement.
4.24hours online service each day, free technical support with different languages.
7.certificate
8.our factory
Jinan Hongye CNC Machine Co.,Ltd is a professional manufactuer of CNC Routers. We are CNC Machine factory with 13 yearsexperience and mainly deal in Woodworking/Stone/Advertisement/Metal/Plasma Machine&Laser engraver.
We have own factory and we can produce the machine according to your requirement.
We have other machines and you can contact us if you need it.
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
6)Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
We look forward to your inquiry,If you are interested in our machines,please contact me at any time.
Contact: Tell:0086-531-88611918 Skype:Nancy Liang
