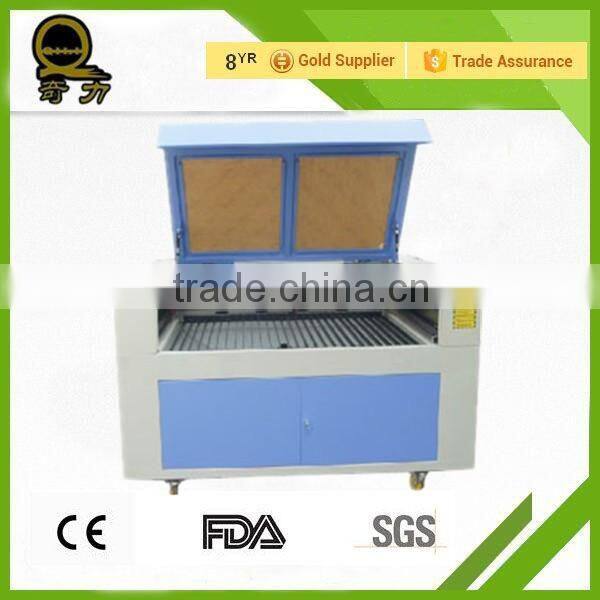

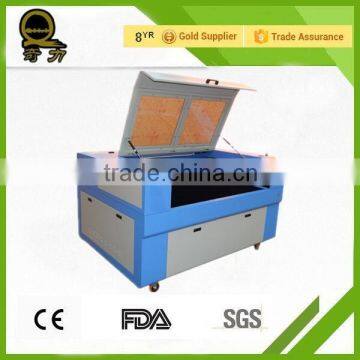

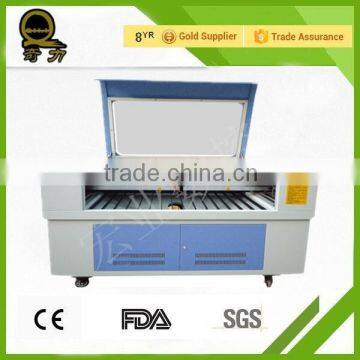

360-degree slope carving QL-1210 laser engraving machine
1210 laser engraving machine cnc router
Specifications
QL 1210 china embroidery laser engraving machine
1.high speed&accuracy
2.1200mm*1000mm working size
3.customization is avaliable
Product features of laser cutting machine
2.DSP controlling system, rich functions, can effect engraving on plane, gradient engraving by 360 degree, cutting and drilling holes etc.
3.Owns functions of restoring from power off, continuation on break point.
4.Transmit files directly in CorelDraw, AutoCAD etc.
5.Adopt international linear rail, more precision
Technical specification
Model | QL-1210 |
Working area | 1200mm*1000mm / 47in*39in (L*W) |
Laser power | 80W/100W/130W |
Laser type | CO2 sealed laser tube,water-cooled |
Engraving speed | 0-6000cm/min |
Power supply | 220V/50HZ , 110V/60HZ |
Min. shaping character | English 1.0 x 1.0mm |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 2 phases stepper motor |
Equipment Dimension | 1720mm*1520mm*1100mm |
Packing Dimension | 1900mm*1700mm*1310mm |
Net Weight | 350kg |
Optional parts | Up-down worktable, USB Port, Red light pointer, Autofocus |
Applicable materials of laser cutting machine
Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leather
Applicable industry of laser cutting machine
Mold industry(building model,air navigation mould,wood mould),advertisement trade,decoration trade,draft gift industry,electrical and
electronic industry.
Acrylic,wood plate(cork wood,fortune paulownia wood),bamboo ware,double color plate,paper,leather,shell,coconut shell,ox horn,
pitch,ABS plate,lampshade and other non-metal materials.
Samples of laser cutting machine
Components
Credit Insurance
Jinan Hongye CNC Machine Co.,Ltd has the credit insurance system, you can trust us to purchase our products.
Our company
1.Jinan Hongye CNC Machine Co.,Ltd is a professional manufactuer of CNC Routers which was built in 2002. Since our factory was founded, we are devoted in CAD/CAM carving technology and the research and development of CNC numerical control technology.
2.For 12 year's hardworking and perfect management, Hongye CNC rely the competitive price ,excellent quality and good service won the good reputation of domestic and overseas clients.
3.With fine fitting parts and advanced technique, our products expand stably, in the fields of advertisement, carpentry, and metal molds.
4.With superior performance-to-price ratio, high quality, and perfect post-sales service, the market share of our products expands unceasingly. We will unceasingly develop and innovation with our full enthusiasm, to carry forward our brand and offer better products for our users.
Certificate
Factory
Package
Exhibition
Guarantee&Aftersales Service
1.Guarantee for one year
2.24-hour technical support by email or phone
3.User-friendly English manual and video CD for machine using and maintaining
4 .Providing free operation training service in our factory.
Training and Use
1. We will supply with the machine operation manual in English version for installing and operation.
2.Customer can come to our factory training .
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
Payment terms
a. 30% by T/T in advance,70% bY T/T before shiping.
b. L/C is acceptiable ,if the amount is big,please issue the draft for our confirmation at first.
Delivery terms
We will arrange the delivery as the terms we both agreed with after the confirmation by the buyer.
Welcome your inquiry and to be our agents,all kinds of cnc routers you can choose.
