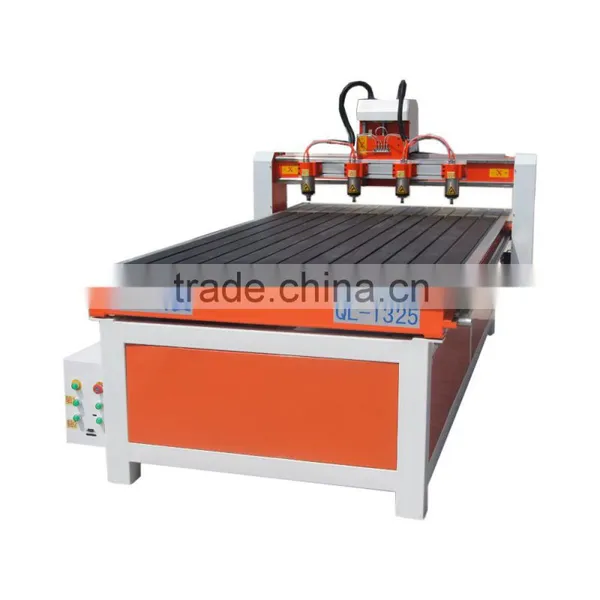

QL-1325-1 hot sale high quality science working models
Specifications
A lot of golden members all over the world, you can really trust us!
1. Model: QL-1325-I
2.Working Area: 1300*2500*200
3. Three axis circle
4.Taiwan square linear rail
5.Water-cooled spindle
6.Stepper system
7.Factory supply
After sales service:
1.We will deliver the machine as soon as possible. We will deliver the normal models
within 7 days after depost payment For abnormal models, the delivery time is at most
15 days .
2.Our technicians will provide on-site service to customers in china. We will supply the
whole day on-line service to foreign customers. According to foreign customer's
requirement, we will arrange technicians go abroad to install or maintenance the
mahcines.
3.Within the warranty period and the machine parts were damaged
under normal using condition, we will offer new parts for free.
4.We will offer software upgrades for free.
5.The company will research the staffs service attitude aperiodically to
improve the service satisfaction.

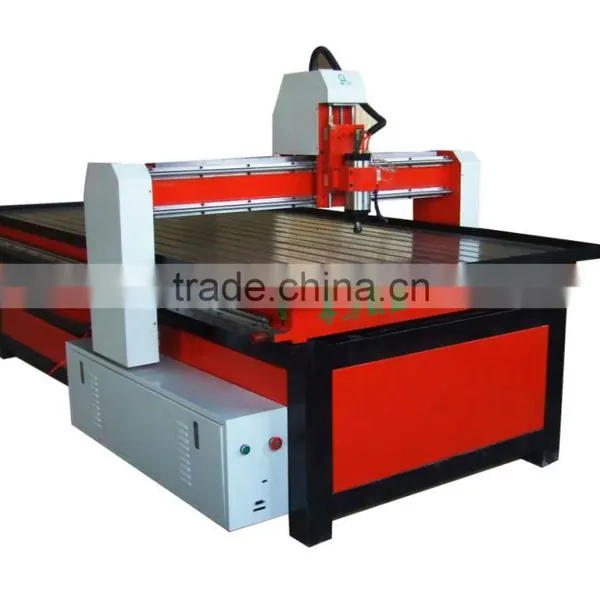

Product Overview
QL-1325-II is economical CNC machine for woodworking, fulfilling the need for the production with most wooden materials,
Devices like vacuum system and dust collctor etc, are optional choice for different
requirement as convenience to work fast and efficiently.
Product Features
1.Whole lathe bed is in steel structure of high stability.
2.Racks and gears transmission with high-speed motor keeps smooth movement in fast and accuracy.
3.Break point restoring function enable the machine conue to work affer sudden stop, such as accident,
tool breaking.
4.Wide software compatibility with processing files generated by Type3,ArtCAM,Artcu,AutoCAD,JDPaint etc,CAD/CAM design software.
5.Ayto lubrication system lubricating tracks automatically, ensures machine’s precision and service time.
Features:
1 |
Industry development: Face to the industry development relief sculpture, thus can adjust the environment with dusty. |
2 |
Free processing:It can be used a single spindle processing, but also moreprocessing the same workpiece at the same time, so greatly improve the production efficiency |
|
3 |
Key parts: adopted with imported high precision square linear rail and gear , and equipped again high speed stepper system,ensuring the lathe with stable movement,high speed and high positioning precision. |
|
4 |
Control system: XYZ axis all adopt high subdivision stepper system,Y axis equips dual motor drive and high speed stepper motor with strong torsion |
|
5 |
Electrical system: Equipped with independent control cabinet, facilitate machine maintenance, equipped with high power drive, torsion more big, the power is strong, multilevel protection alarm, understand machine tool condition, industrial-class wiring standards, the anti-interference ability outstanding. |
|
6 |
Energy saving system: Electric spindle is used by high performance of frequency conversion technology control, and have the fast response, the advantages of small power consumption. |
|
7 |
Lubrication system: Equipped with manual lubrication system, slightly press, can easily finish machine slideway, slider, screw, nut and other key parts of the lubrication, make your machine keep good condition. |
Technical specifications:
Model |
QL-1325 |
|
Working size |
1300*2500*200mm |
|
|
Table size |
1950x3100mm |
|
Machine Structure |
Steel structure lathe bed and T-slot of sectional material |
|
Precision(mm) |
0.07 |
|
Positioning accuracy(mm) |
0.02 |
|
Repeat ability()mm |
0.02 |
|
Idling speed(mm/min) |
15.00 |
|
Working speed(mm/min) |
10.00 |
|
|
Transmission |
X.Y |
NO.20 Taiwan Hiwin square linear guide , Racking driving |
|
Z |
Taiwan Hiwin square linear guide on Z,-No.20, Germany Imported double ball screw - driving NO.25 |
|
Drive systems |
X.Y.Z |
Step motor 85BYGH-450B, Leadshine drive DM-1182 |
|
Spindle |
Power |
3.0KW water-cooling spindle |
Inverter |
Fuling |
|
Collet diameter |
Ø3.175-Ø12.7 |
|
|
Control System |
NcStudio |
|
|
Working Voltage |
AC380V±30V, 50HZ |
|
Command Code |
G Code, *.mmg, *.plt, *.eng |
|
Tool sensor system |
Available |
|
Compatible Software |
Type3/Artcam/UcancamV9/Castmate/corelerow/Autocad |
|
Packing type |
Fumigation-Free Wooden Case |
|
Packing Size |
3200*1800*1700mm/3200*1840*1900mm |
|
Gross Weight |
750/1000kg |
|
AII THE PARTS OF MACHINE CAN DO SOME CHANGES TO MEET YOUR REQUIREMENTS
Such as the motor (step motor or servo motor optional), spindle (air cooled or water-cooled optional ),guide rail (linear guide rail or square linear guide optional ) and the table of the machine (Vacuum table, T-shot table, Combination of T-shot &Vacuum table)
Standard accessories:
(01) User Manual (CD in English Version)
(02) NCSTUDIO
(03) Communication cable
(04) Water pump for Spindle, Water tank, Water pipe head
(05) Power cable: 3 pieces
(06) Tool case : 1 set
(07) Wrench: 1 set
(08) Collet: 2 pieces
(09) Other tools
Applicable Fields:
It is widely used in woodworking industry,furniture industry,advertising industry,mould industry,and other industry
Furniture Decoration Industry: A large area flat plate engraving, wood, panel furniture carving, wood art murals, wood cabinet doors carving.
Wood Products Processing: Sewing machine table, electrical counter table, sports equipment. Artwork: Photo Frame, jewelry box.
Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting.
The samples show
inventory
package
The exhibition
Certification:
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, pls tell me the max working area, materials
for processing and the thickness for materials processing engraving or cutting. Then perfect suitable cnc router will be recommended
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours service from phone and skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you
Looking for agent around the world,further informationss,pleases do not hesitate to contact me,hope to build cooperation with you.24hours service, your inquiry will be replied very soon.
welcome your inquiry and to be our agents.all kinds machines you can choose.
