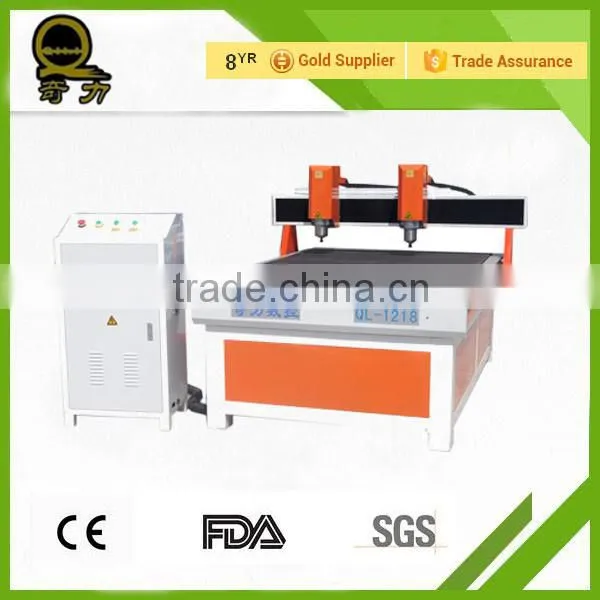

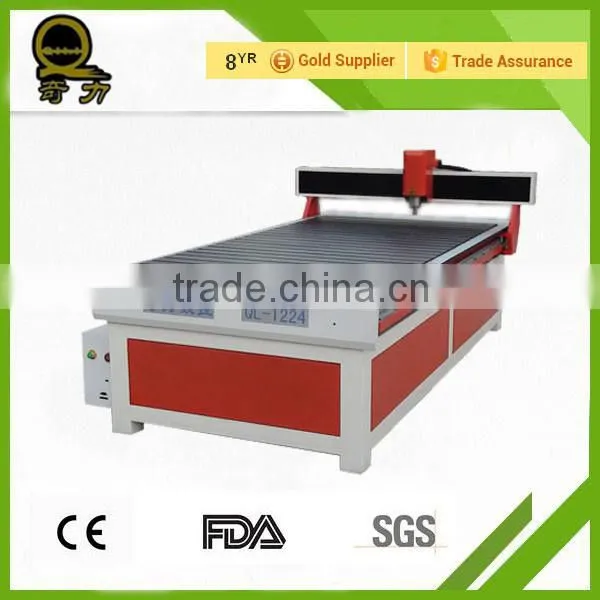

Cut & engrave Advertisement materials cnc router engraver machine carving wood,MDF,Aluminum,stone
Product overview
Advertising series is designed for engraving and cutting most advertising material with various application and
reasonable price.High precision engraving meets the diverse needs in advertising industry.
Product features
- Square linear guide tracks provide large loading capacity.
- Double-nut ball screws from German offer high working accuracy.
- Restoring function enable the machine continue to work after sudden stop,such as accident,tool breaking.
- Sample made out is not only delicate without serration,the bottom is also smooth and in high edge sharpness.
- Square guides on axis Y is optional for high accuracy request in large size material.
Technique parameter
| Model | QL-1212 | Optional |
| Working area | 1200*1200*120(X*Y*Z,mm) | Customization is avaliable |
| Machine structure |
steel structure lathe bed , T-slot table of sectional material |
Vacuum table |
| Working holding | By clamps | |
| Overall dimensions | 1650*1650*1250mm | |
| Precision | 0.07mm | |
| Positioning accuracy | 0.02mm | |
| Repeatability | 0.02mm | |
| Idling speed | 6,000mm/min | |
| Working speed | 4,500mm/min | |
| Spindle | 1.5KW water-cooling (0-24000rpm) |
specified power,air-cooling (0-18000rpm),mutli-head |
| Available tools | φ3.175~φ6mm | automatic tool changer |
| Drive system | stepper motors | |
| Working voltage | AC220v±30v,50HZ | |
| Command code | G code(*.nc.*.mmg.*.u00,ect.),*.eng | |
| Control system | Ncstudio control systm | DSP hand-held |
| Compatible software |
Compatible with any software generating G code file in windows 98/XP/7 |
|
| Other options | Dust collection,tool cooling system with sink,rotary axis | |
Scope of application
Advertising sign making,plastic molding,characters cutting,LED light slot,light box molding etc.
For most advertising material working,such as acrylic,plastic board,double-color plates,MDF,PVC to named a few,
And also no problems with soft metal like copper,aluminum and simple woodworking on similar material with MDF.
1)Guarantee for one year
2)24-hour technical support by email or phone
3)User-friendly English manual and video CD for machine using and maintaining
4)Jinan Hongye CNC Machine Co.,Ltd provides free operation training service in Hongye factory
The more details of machine,please feel free to contact me.
Hope to hear from you soon~~~
