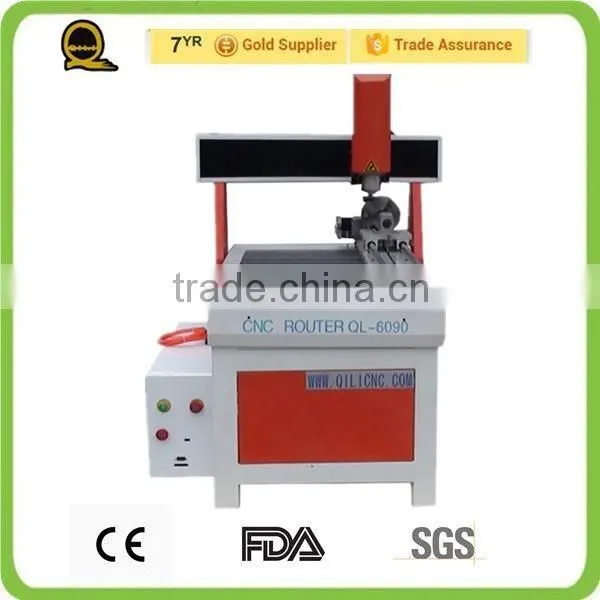

2015 jinan high quality T-slot table 6090 cheap price mini ball screw 3 axis cnc carving machine router
Features:
1. Steel struurectlathe table
2.Imported ball screw
3.Watercooling brushless spindle:low noise,vigorous cutting strength and long time mass processing.
4.Special X axis dust-proof system:ensure the good performance of the machine.
5.Broken-point memory :ensures the continuity of work when inciddent happens.
Applications:
1.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,lightbox mold,stamp,mould.
2.Application: acrylic, density board, organic glass, soft metals like aluminum, etc
Specifiction and technical parameters:
|
Standard Configurations |
Options |
Machine structure |
Steel Lathe Bed |
|
Working table |
T-slot |
Vacuum table |
Spindle |
1.5kw water-cooling |
air-cooling |
X/Y/Z Transmission |
X/Y/Z Ball screw |
|
Guides type |
round guides |
Square guides |
Drive motor |
Stepper |
Servo |
Drive |
Leadshine 542 |
|
Control system |
NCSTUDIO system |
DSP |
Technical parameters:
Model |
QL-6090 |
X Y Working Area |
600mm*900mm*100mm |
Z Working Area |
120mm |
Max. Speed |
8m/min |
Max. Working Speed |
6m/min |
Working Delicacy |
0.01mm |
Repositioning Accuracy |
0.02mm |
Feeding Height |
100mm |
Command Code |
G Code*.u00*.mmg*.plt |
Working Software |
Windows98/2000/xp |
Power (not including spindle) |
1.5kw |
Working Voltage |
AC220V/50HZ |
Spindle Power |
1.5kw |
Spindle Running Speed |
0-18000rpm |
Motor |
Stepper |
Samples:

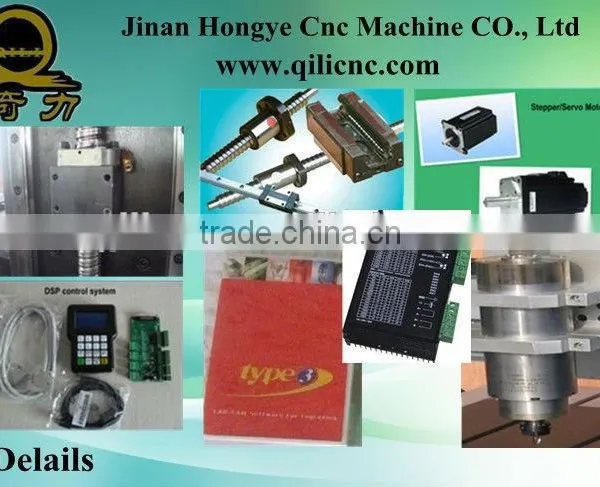

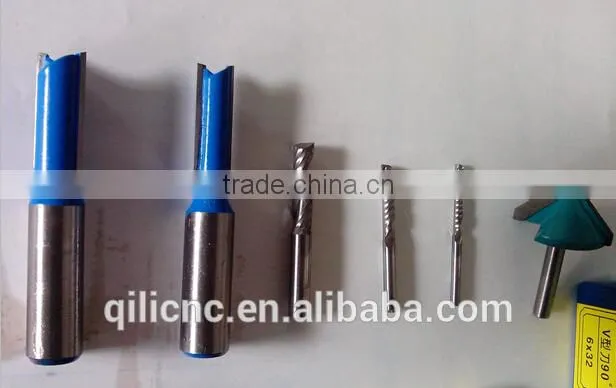

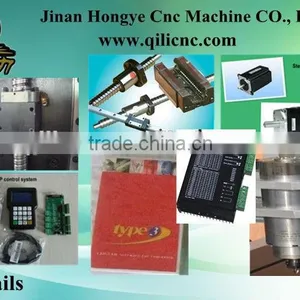

Spare parts:
Our company:
Hongye cnc machine is a high-technology enterprise which is specialized in developing
andmanufacturing advanced high grade CNC Router.Having around 12 years’ experience, our company ranks in the front of the fields and enjoys good honor from worldwide.
Meanwhile, our products has been granted CE and SGS certificate. Now we have three main series machines and around 50 models: CNC engraving machine, 3D woodworking machine and laser engraving machine.
And we wish you knew that perfect quality and good after-sales service is our specialty

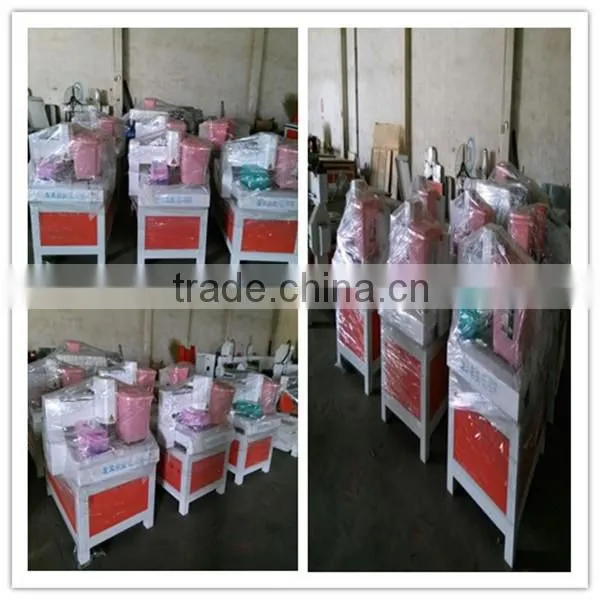

Our workshop :
Clients:

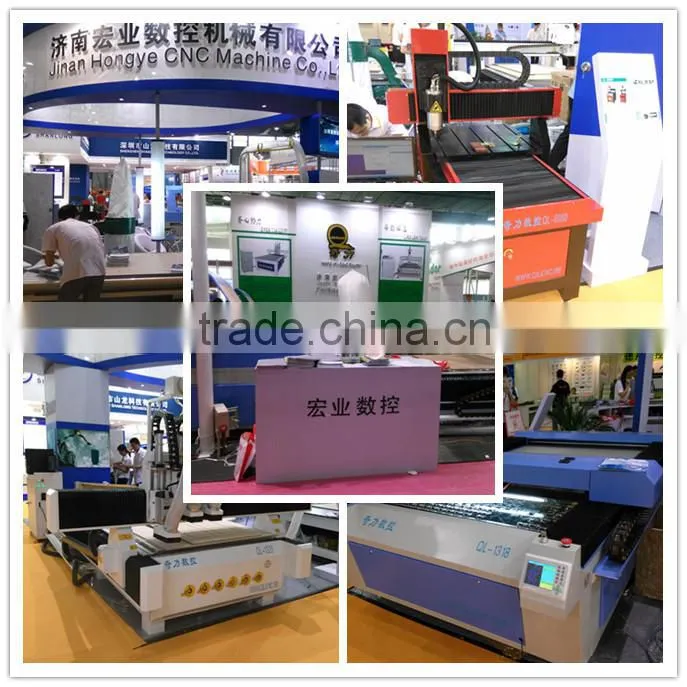

Exhibition:
Certificate:
Guarantee&Aftersales Service:
1)Guarantee for one year
2)24-hour technical support by email or phone
3)User-friendly English manual and video CD for machine using and maintaining
4)Jinan Hongye CNC Machine Co.,Ltd provides free operation training service in Hongye factory.
Jinan Hongye factory has been established for 12 years since 2002 .
QILI machine get many agents both in China and in foreign countries depend on high quality and good after sales service .
You can see other kind of cnc router on our website .
Any need feel free to contact me !!!
