HOT 24 Channel H264 Cctv Camera Kit Home Alarm System

HOT 24 Channel H264 Cctv Camera Kit Home Alarm System photo-1
US$ 300 - 300 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
sunivision/OEM
Model Number:
AP-KIT2404
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name sunivision/OEM
Model Number AP-KIT2404

HOT 24 channel h264 cctv camera kit home alarm system

Product Description

HOT 24 channel h264 cctv camera kit home alarm system

HOT 24 channel h264 cctv camera kit home alarm system

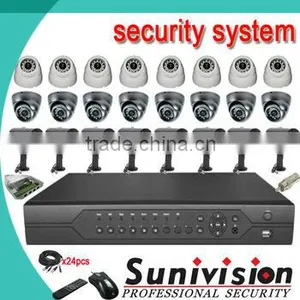

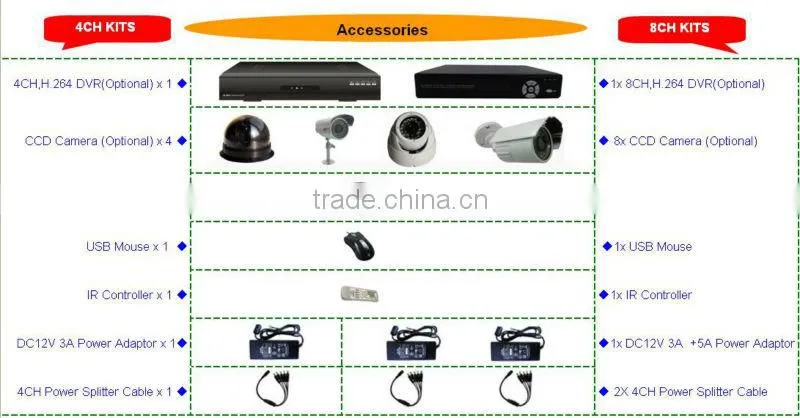

Packing details:

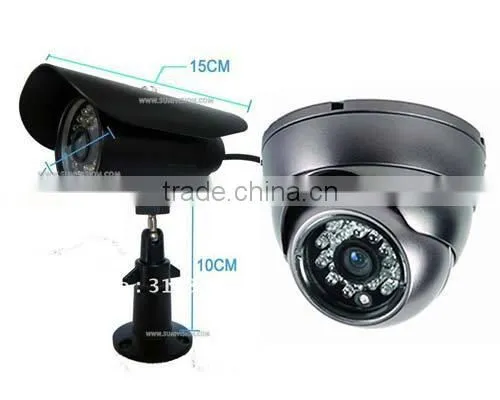

16pcs metal dome camera sony 420TVL 24pcs IR leds (AP-144G)
8pcs outdoor bullet camera sony 420TVL 36pcs IR leds (AP-1474A)
8pcs 20meter(65ft) video+power Cable

12pcs 30meter video+power Cable
4pcs 50meter video+power Cable
1pc   12V 20A 18channel  power supply box
1pc   12V 10A 9channel  power supply box
1pc   1 metre crossed network patch lead
1pc   BNC to TV connector
1pc   DVR mouse
1pc   DVR remote control
24pcs  CCTV Sign



 Camera Specifications:



MODEL

AP-144G/ AP-1474A

Image Device

1/3" SONY

TV Format

PAL/NTSC

Number of Pixel

NTSC: 510x492/ PAL: 512x582

Resolution

420 TV lines

Sync.System

Internal

IR LED

24 units IR LEDs

IR Effective Range

UP to 15 meters

Minimum Illumination

0LUX(IR ON)

LEN

f3.6MM/6MM (F2.0)

IP Rating

IP66

AGC

AUTO

S/N Ratio

≥48dB

Smart Light Control

YES

Gain Control

Auto

White Balance

Auto(2500°K~9500°K)

Electronic Shutter

Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL)

1/60~-1/120,000 Sec(NTSC)

Back light Compensation

AUTO

Video Output

1.0Vp-p composite 75ohm

Power Consumption

300mA/350mA

Power Supply

DC12V

Operation Temp

-10°C~+50°C





DVR Specification:



System

Model

AP-9624D

AP-9632D

Main Processor

1 X HI3520A

1XHI3521

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

User Interface

GUI,on-screen menu tips

Control Device

Front panel,USB mouse,IR remote control

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s



Video Compression

H.264 High profile



Video Recording

CIF:PAL 1f/s-25f/s NTSC 1f/s-30f/s;



Motion Detection

Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)

Trigger recording,PTZ movement,tour,alarm,e-mail & FTP



TV Output Audjustment

Adjust TV output color & display zone

Audio

Audio Conpression

G711A

Bidrectional Talk

Support

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

Max 16 channels playback simultaneously,

Pause,stop,rewind,fast play,slow play,next file,previous file,repeat,shuffle,backup selection

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch,

D1 16~20G/day/ch ; Audio: 691.2M/day/channel

HDD Management

Hard disk hibernation technology,HDD faulty alarm & Raid(Redundancy)

Backup Mode

Network download/Flash stick

Interface

Video Input

24 channel

32 channel



Video Output

2ch BNC output, 1ch VGA output,1ch HDMI

2ch BNC output (include 1ch Spot output),1ch VGA output,1ch HDMI



Audio Input

8 channel

16 channel



Audio Output

1 channel



Alarm Input

8 channel



Relay Output

1 channel



Hybrid mode

Only Analog(DVR):

24*CIF

Only IP(NVR):

8*960H/4*720P/2*1080P/ 1*720P+7*D1/ 1*1080P+1*720P+2*D1

Only Analog(DVR):

32 *CIF

Only IP(NVR):

16*D1/2*1080P +2*720P

/1*1080P+1*720P+6*960H

/8*720P



Net Interface

RJ-45 10M/100M



PTZ Control

1 RS485, 1 RS232



3G/WIFI

Support



USB Interface

2* USB2.0 port for mouse and backup



Hard Disk

2 SATA port(Max 2 x 3T)

Environmental

Power Supply

12V/4A

Power Consumption

<15W

Working Temperature

0-55

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

475*115*338mm

Weight

5kg

Mounting

Desktop



 HOT 24 channel h264 cctv camera kit home alarm system



Application

HOT 24 channel h264 cctv camera kit home alarm system


HOT 24 channel h264 cctv camera kit home alarm system

Certifications

HOT 24 channel h264 cctv camera kit home alarm system

Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.

HOT 24 channel h264 cctv camera kit home alarm system

Hot sale

HOT 24 channel h264 cctv camera kit home alarm system

HOT 24 channel h264 cctv camera kit home alarm system

Factory Shots

HOT 24 channel h264 cctv camera kit home alarm system

Trade Shows

HOT 24 channel h264 cctv camera kit home alarm system

Company Information

HOT 24 channel h264 cctv camera kit home alarm systemSunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.

Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
