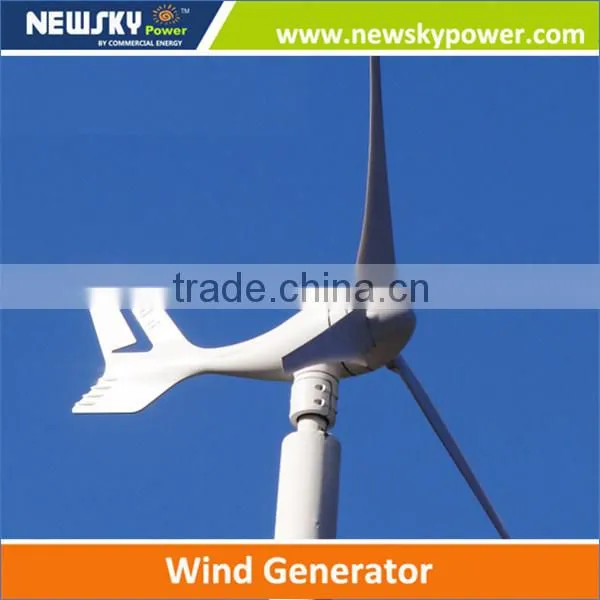

Chinese wind generator 400W mini wind generator wind power generator

FOB Price

USD $200 - $400 / Piece

1 Piece(Min.Order)

Product Details

Place of Origin:	China	Brand Name:	Newsky	Model Number:	Max600W
Type:	Wind Power Generator

Chinese wind generator 400W mini wind generator wind power generator
1,Bearing from "SKF"
2,Easy installation,
3,Free of ma

Chinese wind generator 400W mini wind generator wind power generator

Features: Chinese wind generator 400W mini wind generator wind power generator

1.Bearing from “SKF” Sweden.

2.Stainless steel screw bolt from “THE”.

3.Primary aluminum housing, not secondary aluminum.

4. Low start-up wind speed.

5.High-efficient Generator

6.Innovative Noise Reduction Technology

7.Perfect Wind Wheel System

8.Unique Design Of The Rudder

9. Damp-proof, sand-proof, Anti-rust, Anticorrosion

10 .Easy installation, Free of maintenance, Long lifespan over 15years.

Specification Chinese wind generator 400W mini wind generator wind power generator

Model	MAX 600W	MAX 800W	MAX 1200W	MAX 1600W
Rated power	600W	800W	1200W	1600W
Max power	750W	950W	1300W	1800W
Rated voltage	24 VDC	48 VDC	48VDC/110VDC	48VDC/110VDC
Rated current	25A	16.7A	25A/10.9A	33A/14.5A
Rated Rpm	650
Rated wind speed	12m/s
Blades	5 Pcs Nylon Fiber glass
Start-Up Wind Speed	1.5 ( m/s)	1.5 ( m/s)	2.0 ( m/s)	2.0 ( m/s)
Cut-In Wind Speed	2.0 (m/s)	2.0 (m/s)	2.5 (m/s)	2.5 (m.s)
Rotor Diameter	1.7 m	1.8 m	2.0 m	2.2 m
N.W	28.5KG	30KG	36KG	41KG
G.W	33KG	35.5KG	41KG	46KG
Shipping Dimensions	1690540290mm	1690540290mm	1890540290mm	1890540290mm
Mount	Flange connection
Turbine Controller	MPPT wind solar hybrid controller
Body	Cast aluminum
Overspeed Protection	Electromagnetic & blade aerodynamic braking
Working temperature	—40°C~ 150°C
Certificate	ISO9001:2008 ,CE, Rohs
Survival Wind Speed	50 m/s
Warranty	3 year limited warranty

Dimmensions Chinese wind generator 400W mini wind generator wind power generator

Power Curve

Pictures Show in Detail Chinese wind generator 400W mini wind generator wind power generator

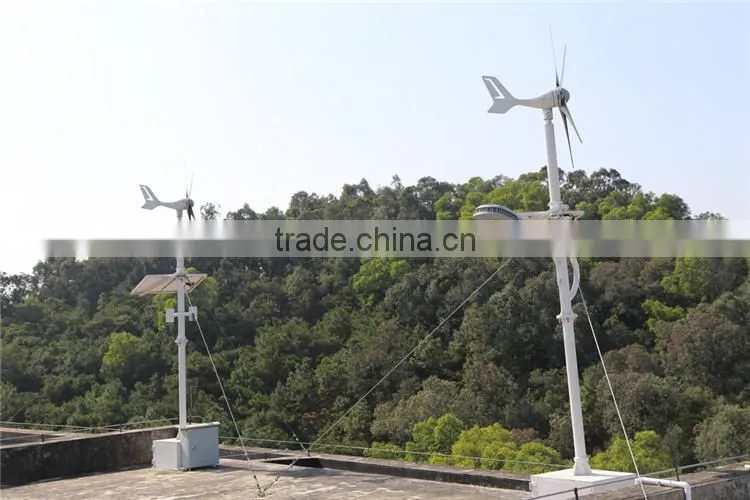

Applications in Our Life Chinese wind generator 400W mini wind generator wind power generator

Work Shop mini wind generator wind power generator
