Specifications
horizontal wind generator,horizontal axis wind turbine,wind turbine generatorCE, ROHS
5blades
3years warranty
horizontal wind generator,horizontal axis wind turbine,wind turbine generator Feature of 400W wind turbine
- 3 / 5blades, built-in / without controller 4models for choice
- Bearing from “SKF” Sweden.
- Stainless steel screw bolt from “THE”.
- Primary aluminum housing, not secondary aluminum.
- Low start-up wind speed
- High-efficient Generator
- Perfect Wind Wheel System
- Unique Design Of The Rudder
- Damp-proof, sand-proof, Anti-rust, Anticorrosion
- Easy installation, Free of maintenance, Long lifespan over 15years.

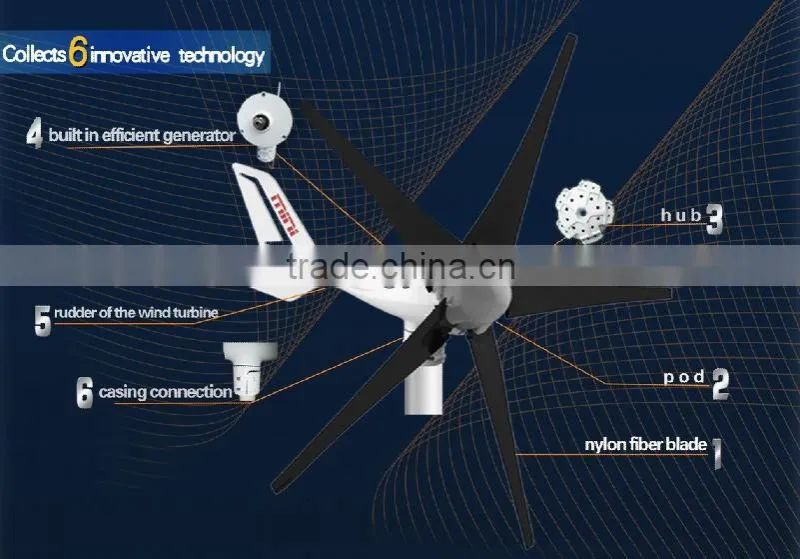

horizontal wind generator,horizontal axis wind turbine,wind turbine generator advantages
1. Guangxi Pingguo primary aluminum, not recycled aluminum, the free of impurities, higher hardness
2. Innovative unique square design. No exposed screws, abandon the traditional single screw connecting stress, adopts embedded connection, the overall motor and blade stress is uniformly distributed on the circular mosaic surface
3. SKF Sweden original import bearing,low temperature resistant of -40 degrees , adapt to the alpine areas (Tibet, Xinjiang, Inner Mongolia, Northeast China, Russia, Europe, Canada), longer service life
4. Taiwan Dongming 304 stainless steel screws, quality assurance, no rust and fracture, enhance its durability and life expectancy
5. Blade and hub: unique patented design, inserted connection, closely connected effectively ensure the safety
6. Nylon / glass fiber composite high strength blade, resistant to -40 degrees is not broken, anti UV UV aging, longer life. Enhancement and thickness design of blade, high density and intensity pressure injection, better ablility of wind resistance ,and reduces the noise.
7.Body rotation yaw sleeve, the first use of built-in type design, more beautiful. Yaw shaft built-in way, make the yaw and the host machine body increased upper and lower connecting area, uniform stress distribution, safe and beautiful
8. Longer tail rudder design, enhance the ability of matching wind, giving higher generation efficiency. The use of novel high-quality aerospace industry level color galvanizing technology, longer oxidation time.
9. Clip: double insurance, prevent the wheels fly off.
horizontal wind generator,horizontal axis wind turbine,wind turbine generator
SPEC of 400W wind turbine
Model |
Mini400W-3 |
Mini400W-5 |
Rated power |
400 watts at 12 m/s |
|
Max Capacity |
450watts |
|
Voltage |
12, 24 VDC |
|
Blades |
3 Pcs Nylon Fiber |
5 Pcs Nylon Fiber |
Start-Up Wind Speed |
2.0 ( m/s) |
1.5 ( m/s) |
Cut-In Wind Speed |
2.5(m/s) |
2.0(m.s) |
Rotor Diameter |
1.16 m |
1.21m |
Weight |
6.2 kg |
7.1 kg |
Shipping Dimensions |
770x 410x 200 mm (8.3 kg) |
770x 410x 200 mm ( 9 kg) |
KWH per Month |
30KWh at 3.2 m/s |
42KWh at 3.2 m/s |
Mount |
1.9 inch (48 mm) OD pipe |
|
Turbine Controller |
Microprocessor-based smart internal regulator with Maximum Power Point Tracking |
|
Body |
Cast aluminum |
|
Overspeed Protection |
Electronic torque control |
|
Working temperature |
—40°C~ 150°C |
|
Certificate |
ISO9001:2008 ,CE, Rohs |
|
Survival Wind Speed |
50 m/s |
|
Warranty |
3 year limited warranty |
|
horizontal wind generator,horizontal axis wind turbine,wind turbine generator
Dimension of 400W wind turbine

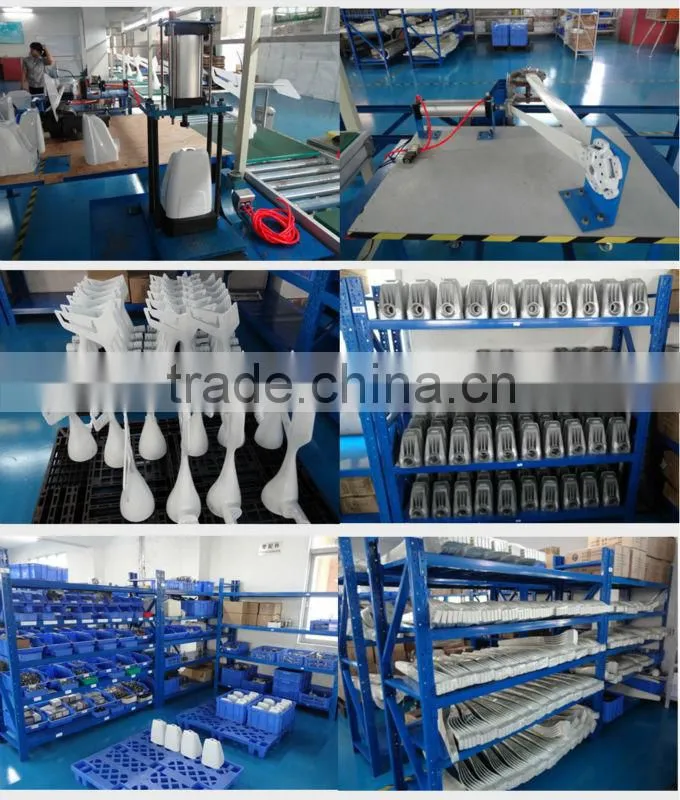

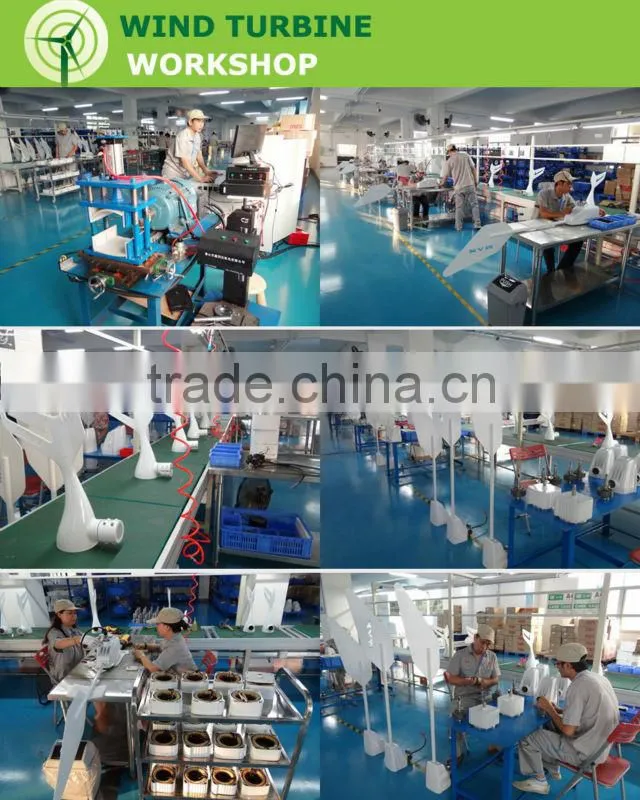

horizontal wind generator,horizontal axis wind turbine,wind turbine generator work shop

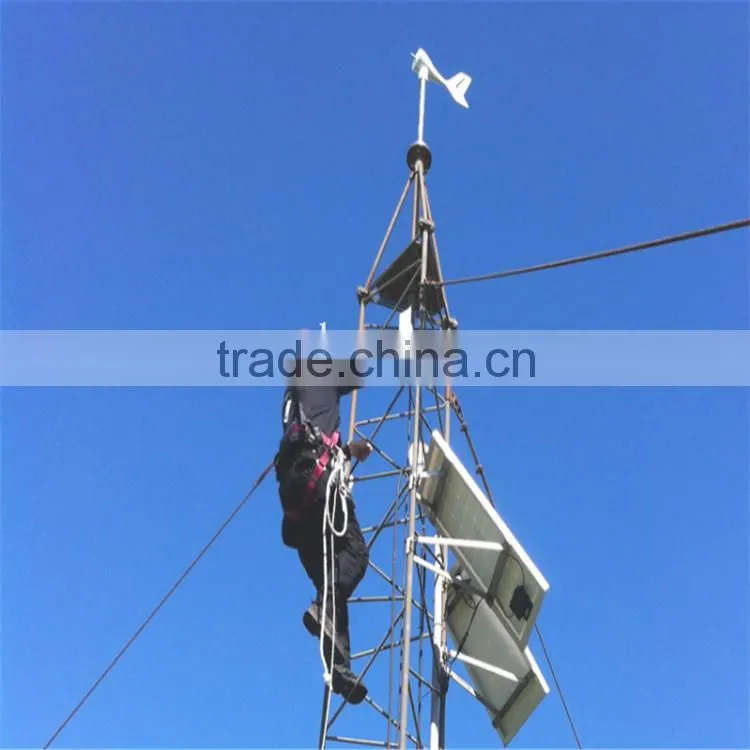

wind generator power for household,wind power turbine for home,wind power generator for household pictures

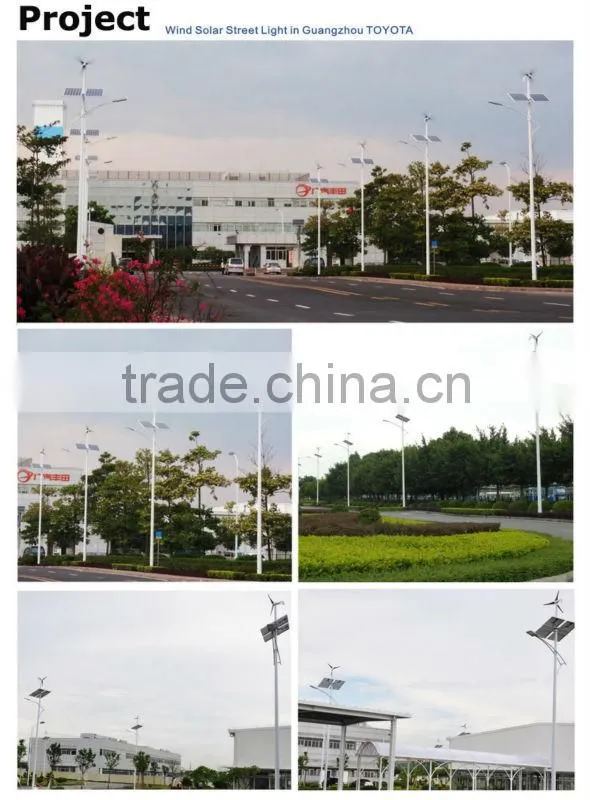

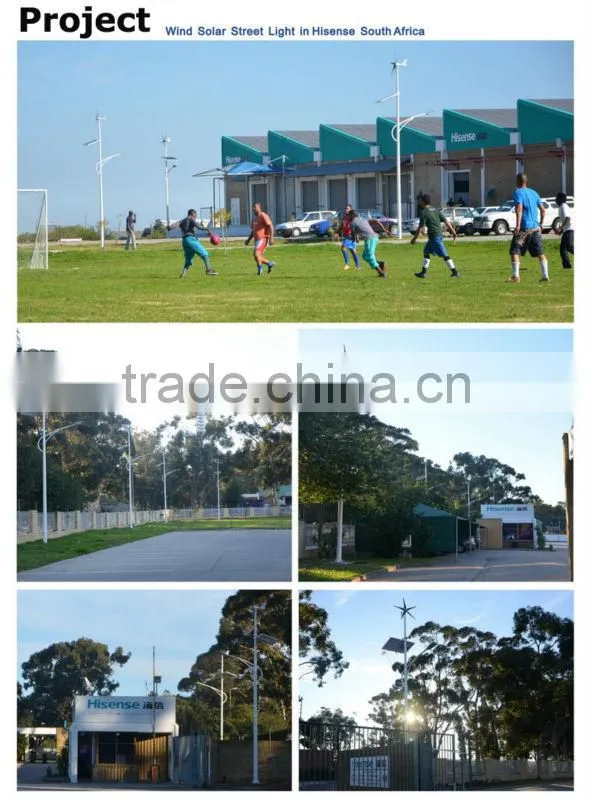

horizontal wind generator,horizontal axis wind turbine,wind turbine generator Project of 400W wind turbine
