Specifications
wind generator china wind turbine generator1,Bearing from "SKF"
2,Easy installation,
3,Free of maintenance
4,Primary alumi
High quality wind generator china wind turbine generator wind power generator
Advantages of High quality wind generator china wind turbine
1.Bearing from “SKF” Sweden.
2.Stainless steel screw bolt from “THE”.
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.
Specifications for different mordels of wind power generator
Model | MAX 600W | MAX 800W | MAX 1200W | MAX 1600W |
Rated power | 600W | 800W | 1200W | 1600W |
Max power | 750W | 950W | 1300W | 1800W |
Rated voltage | 24 VDC | 48 VDC | 48VDC/110VDC | 48VDC/110VDC |
Rated current | 25A | 16.7A | 25A/10.9A | 33A/14.5A |
Rated Rpm | 650 | |||
Rated wind speed | 12m/s | |||
Blades | 5 Pcs Nylon Fiber glass | |||
Start-Up Wind Speed | 1.5 ( m/s) | 1.5 ( m/s) | 2.0 ( m/s) | 2.0 ( m/s) |
Cut-In Wind Speed | 2.0 (m/s) | 2.0 (m/s) | 2.5 (m/s) | 2.5 (m.s) |
Rotor Diameter | 1.7 m | 1.8 m | 2.0 m | 2.2 m |
N.W | 28.5KG | 30KG | 36KG | 41KG |
G.W | 33KG | 35.5KG | 41KG | 46KG |
Shipping Dimensions | 1690*540*290mm | 1690*540*290mm | 1890*540*290mm | 1890*540*290mm |
Mount | Flange connection | |||
Turbine Controller | MPPT wind solar hybrid controller | |||
Body | Cast aluminum | |||
Overspeed Protection | Electromagnetic & blade aerodynamic braking | |||
Working temperature | —40°C~ 150°C | |||
Certificate | ISO9001:2008 ,CE, Rohs | |||
Survival Wind Speed | 50 m/s | |||
Warranty | 3 year limited warranty | |||

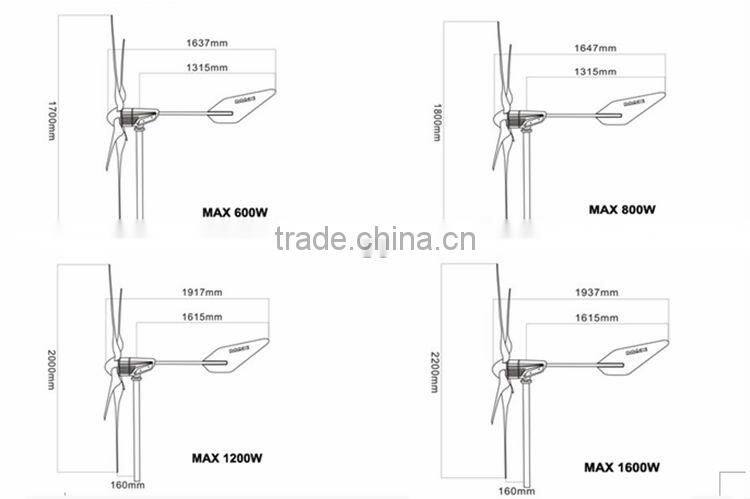

Dimmensions of different models

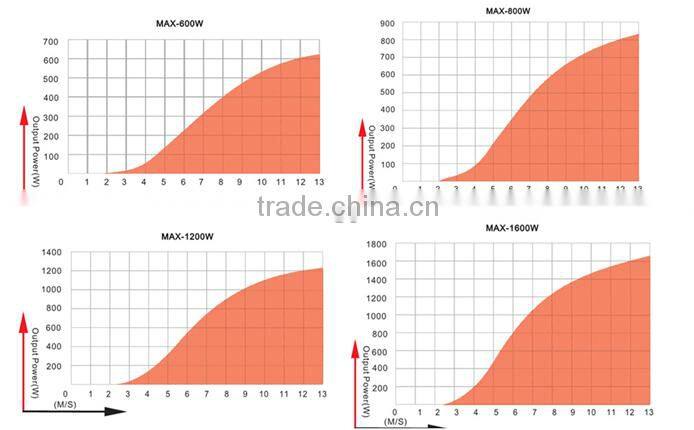

Power Curve

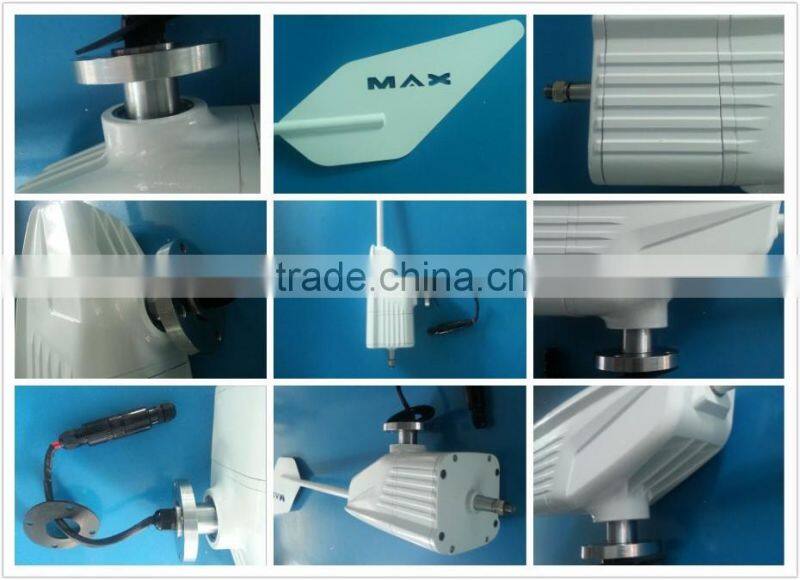

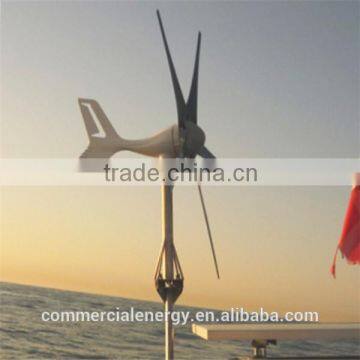

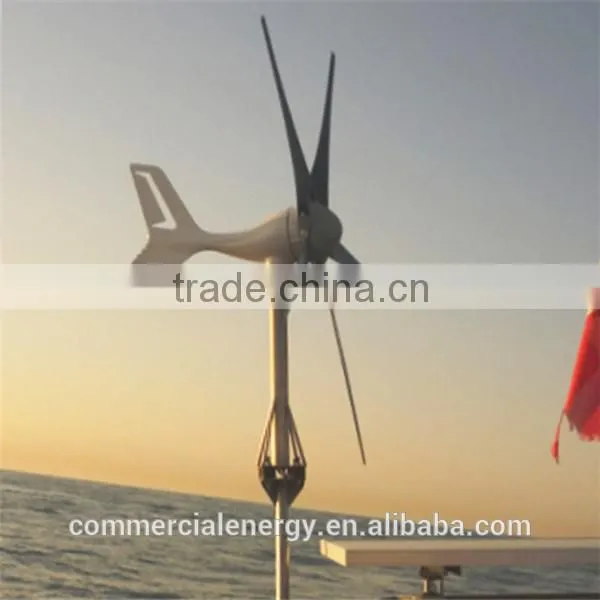

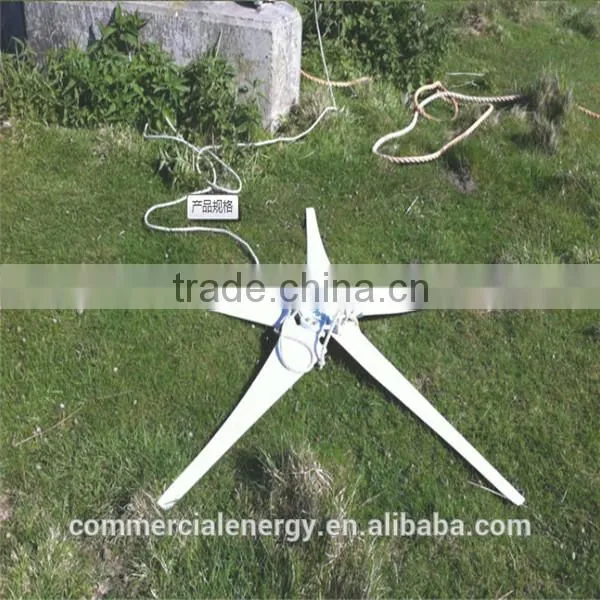

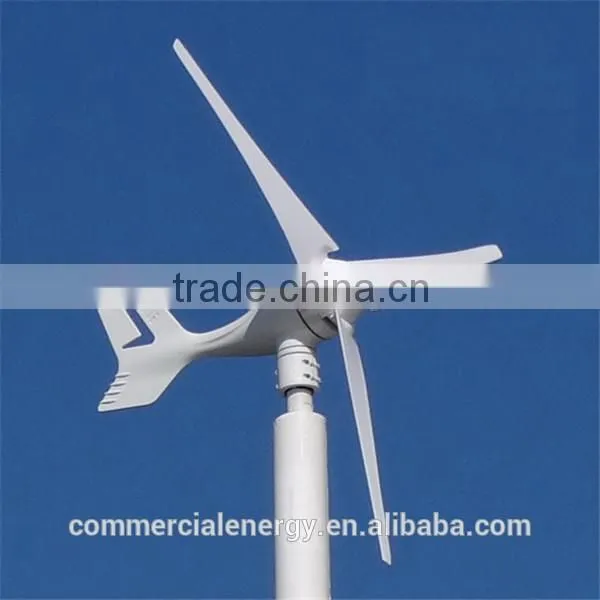

Pictures Show in Detail

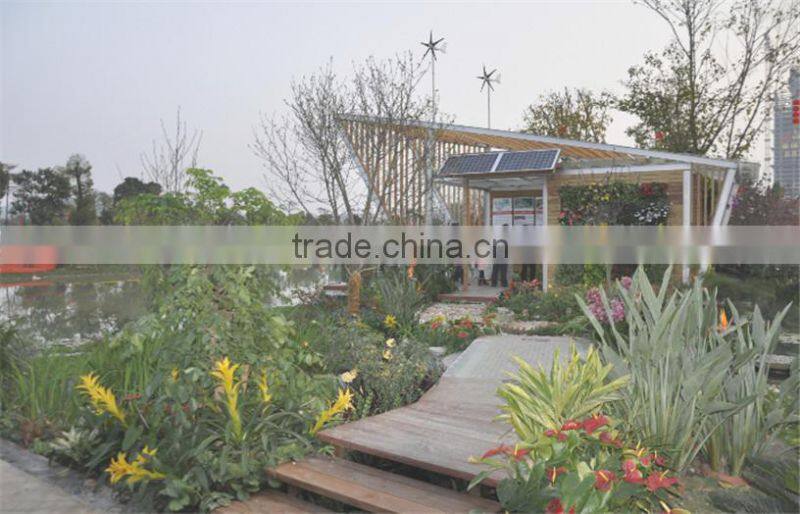

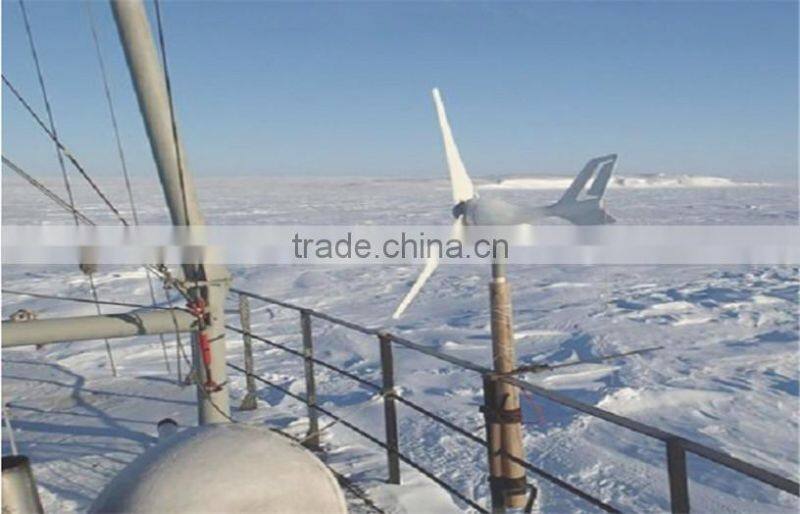

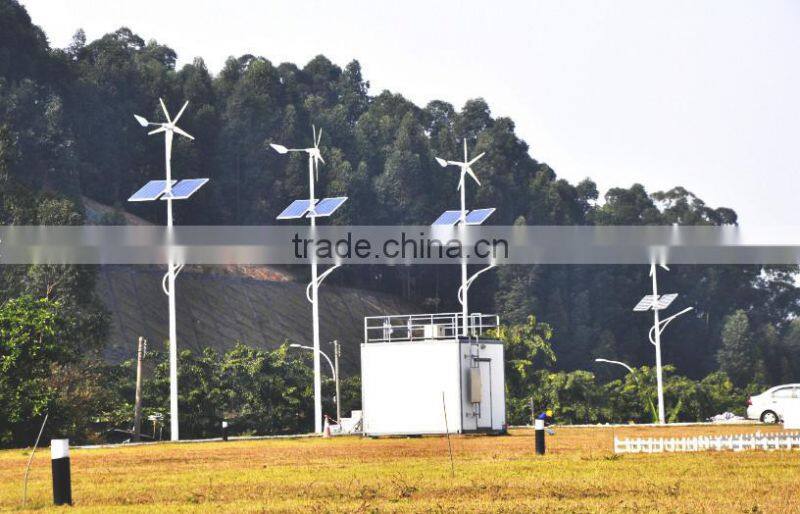

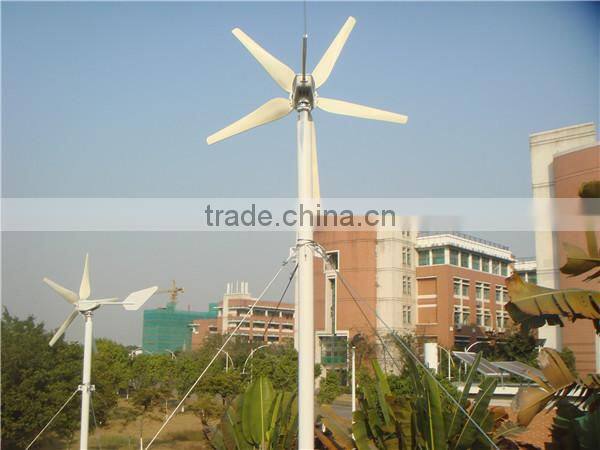

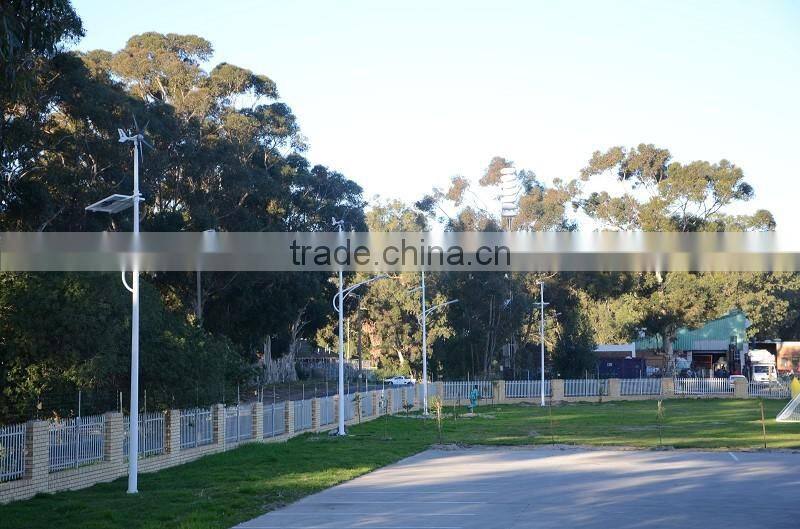

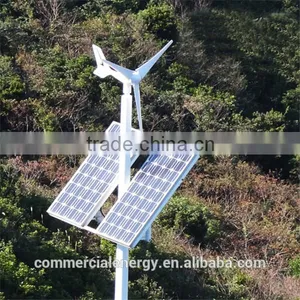

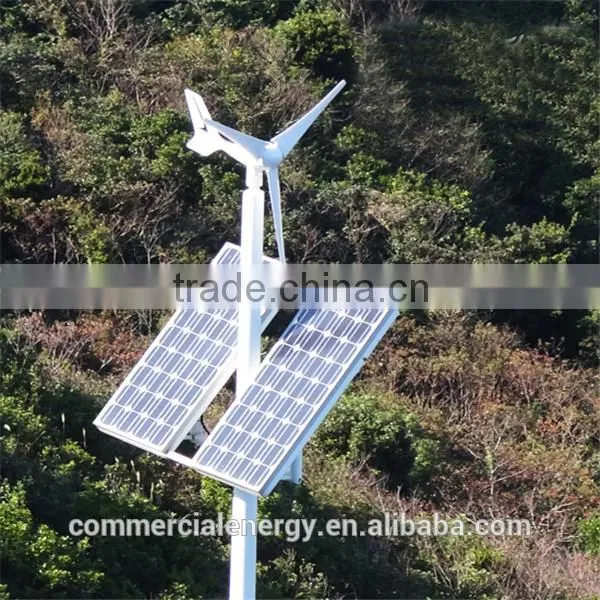

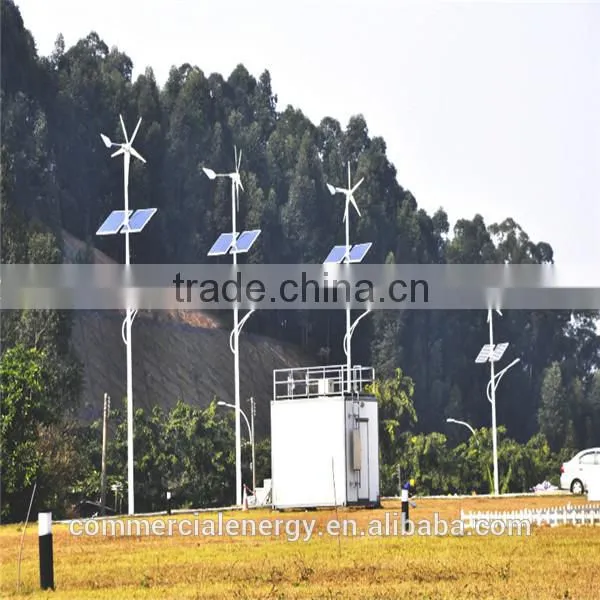

Applications in Our Life

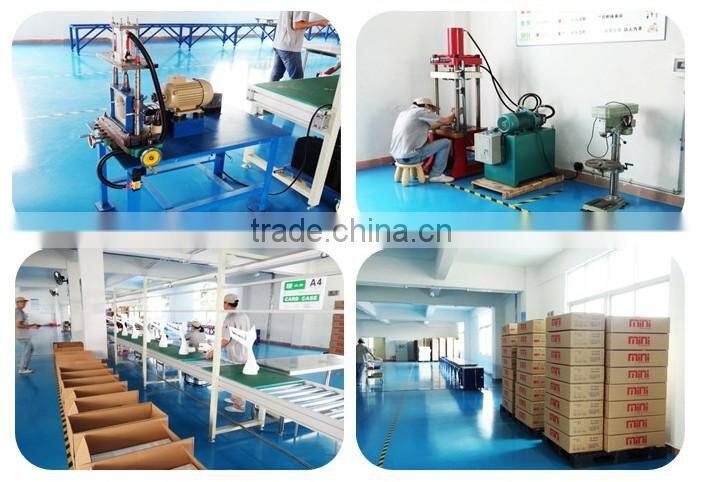

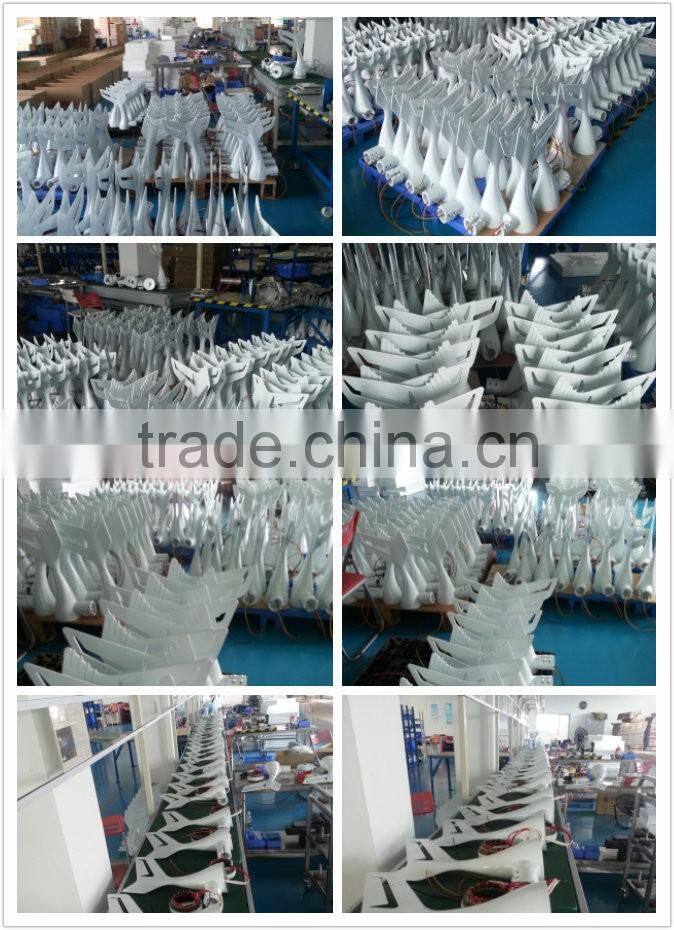

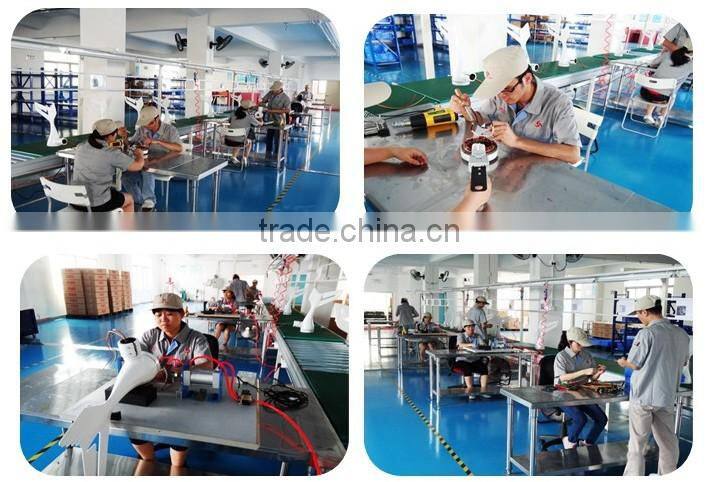

Work Shop
