dc TIG Welder

dc TIG Welder photo-1
US$ 115 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KENMAI
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name KENMAI
Model Number Digital TIG-200
Arc Current 10-200
Pulse Frequency 50/60hz
Pilot Arc Current 10-200
Rated Duty Cycle 60%
Dimensions 475*255*385(mm)
Usage TIG DC Argon Arc welding machine
Voltage 230v
Certification CE, ROHS
Warranty one year

Specifications

Digital display TIG Welder
1.DC dual voltage 110/220V
2.argon arc welding machine
3.light and portable
4.Fan-cooled

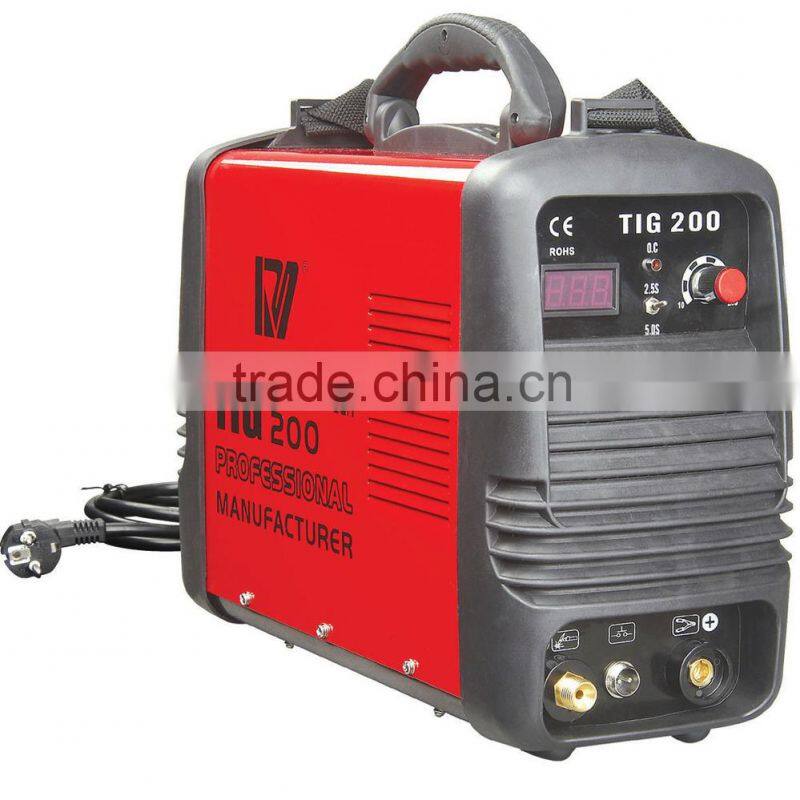

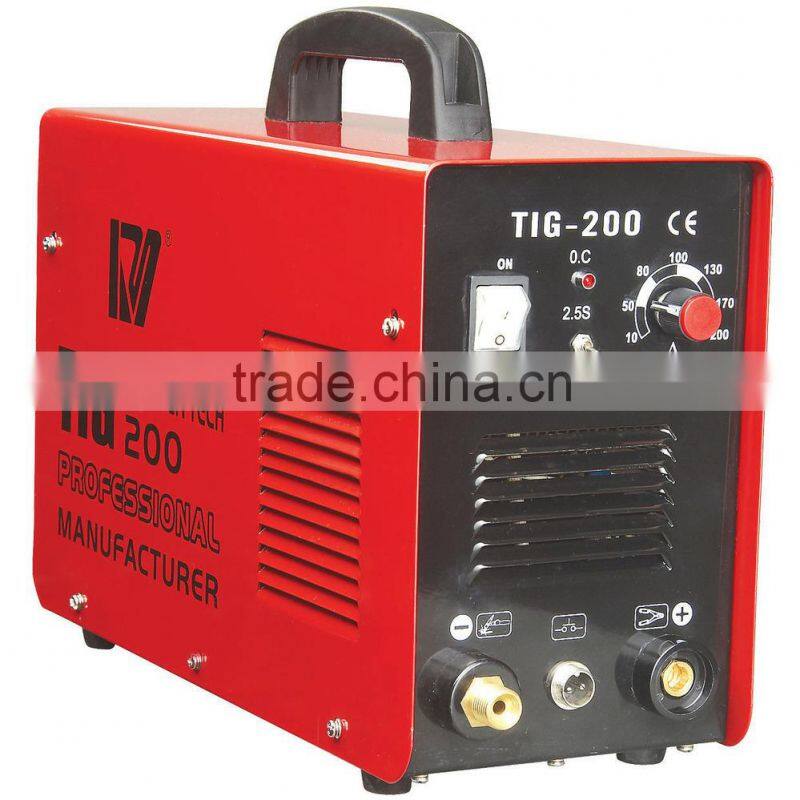

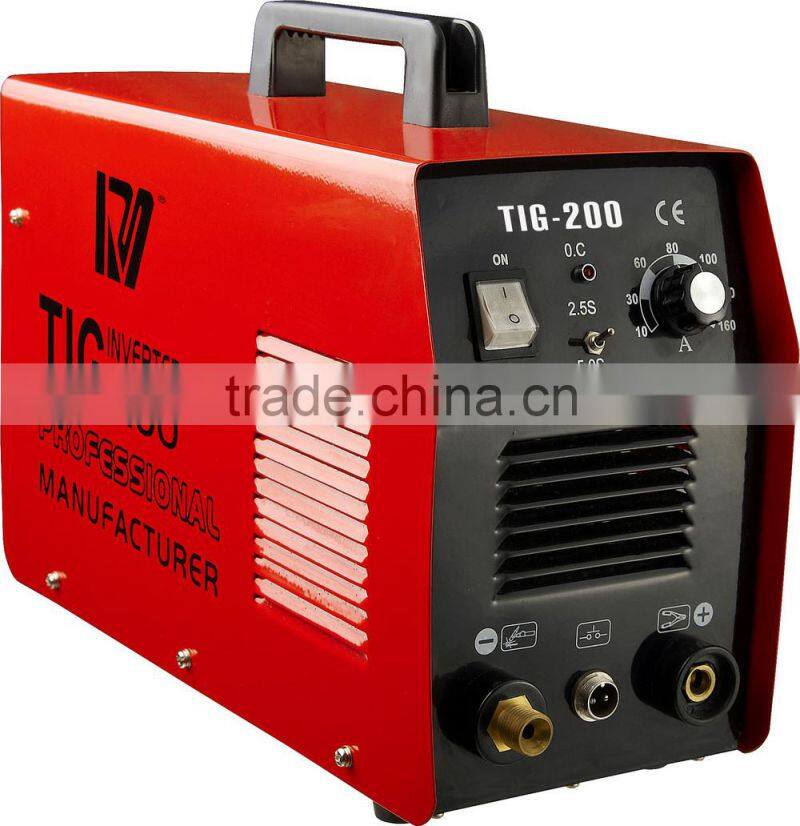

 TIG-200 Digital display TIG Welder


Technical Specification

               Model   Specification                        Digital TIG-200
Rated input voltage(V)230
Input capacity(KW)4.6
Frequency(Hz)50/60
No-load voltage(V)44
Current range(A)10-200
Output voltage(V)18
Rated duty cycle(%)60
Class of insulationF
Case protection degreeIP21S
Arc-startingHF
Weight(KG)9
Dimension(mm)475*255*385



dc TIG Welder





dc TIG Welder





dc TIG Welder





dc TIG Welder





Main Features of Digtal TIG-200

1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.

2.Current can be adjusted stepless, high efficiency.

3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.

4.Touched arc technique or HF arc-starting, be free from electromagnetisms disturb, no slag, smooth welding line.

5.Argon, suit for stainless steel, copper, aluminum, steel, titanium, nickel and other alloy material.

6.With complete accessories.

7.Carton box
