Help Centerhf Welder
US$ 105 - 110
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KENMAI
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KENMAI
Model Number
TIG-160
Arc Current
10-160
Pulse Frequency
50/60
Pilot Arc Current
10-160
Rated Duty Cycle
60%
Dimensions
410*230*320(mm)
Usage
TIG DC Argon Arc welding machine
Voltage
230v
Certification
CE, ROHS
Warranty
one year
Specifications
TIG Welder1.Save engery
2.DC argon arc welding machine
3.MOS/IGBT inverter technology
TIG Welder
1.Save engery
2.DC argon arc welding machine
3.MOS/IGBT inverter technology

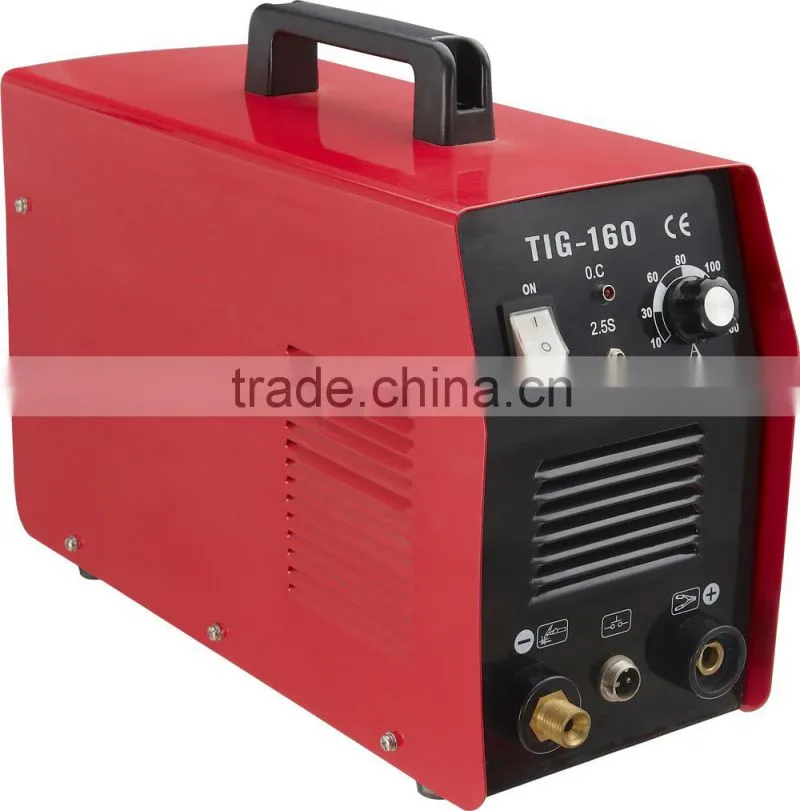

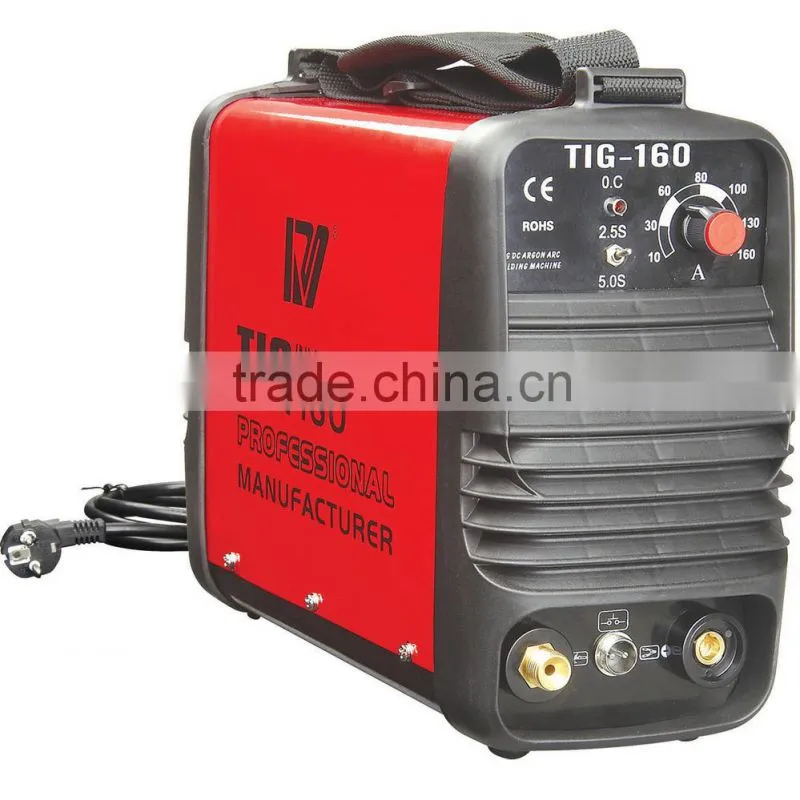

TIG-160 TIG Welder
Technical Specification
| Model Specification | TIG-160 |
| Rated input voltage(V) | 230 |
| Input capacity(KW) | 3.3 |
| Frequency(Hz) | 50/60 |
| No-load voltage(V) | 44 |
| Current range(A) | 10-160 |
| Output voltage(V) | 16.4 |
| Rated duty cycle(%) | 60 |
| Class of insulation | F |
| Case protection degree | IP21S |
| Arc-starting | HF |
| Weight(KG) | 9 |
| Dimension(mm) | 410*230*320 |
Main Features of TIG-160
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Touched arc technique or HF arc-starting, be free from electromagnetisms disturb, no slag, smooth welding line.
5.Argon, suit for stainless steel, copper, aluminum, steel, titanium, nickel and other alloy material.
6.With complete accessories.
7.Carton box
TIG Welder
