inverter tig welding machine

Specifications

TIG Welder
1.Save engery
2.DC argon arc welding machine
3.MOS/IGBT inverter technology
CE, ROHS

TIG Welder
1.Save engery
2.DC argon arc welding machine
3.MOS/IGBT inverter technology

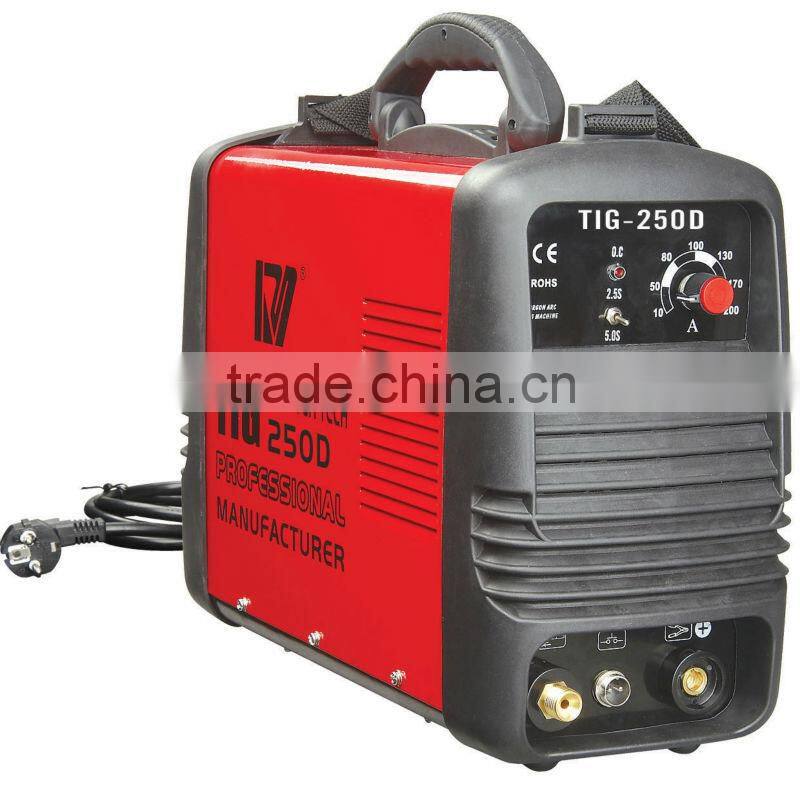

 TIG-250D TIG Welder



 Technical Specification





Model   Specification	TIG-250D
Rated input voltage(V)	110/220
Input capacity(KW)	6.3
Frequency(Hz)	50/60
No-load voltage(V)	46
Current range(A)	10-250
Output voltage(V)	20
Rated duty cycle(%)	60
Class of insulation	F
Case protection degree	IP21S
Arc-starting	HF
Weight(KG)	9
Dimension(mm)	475*255*385

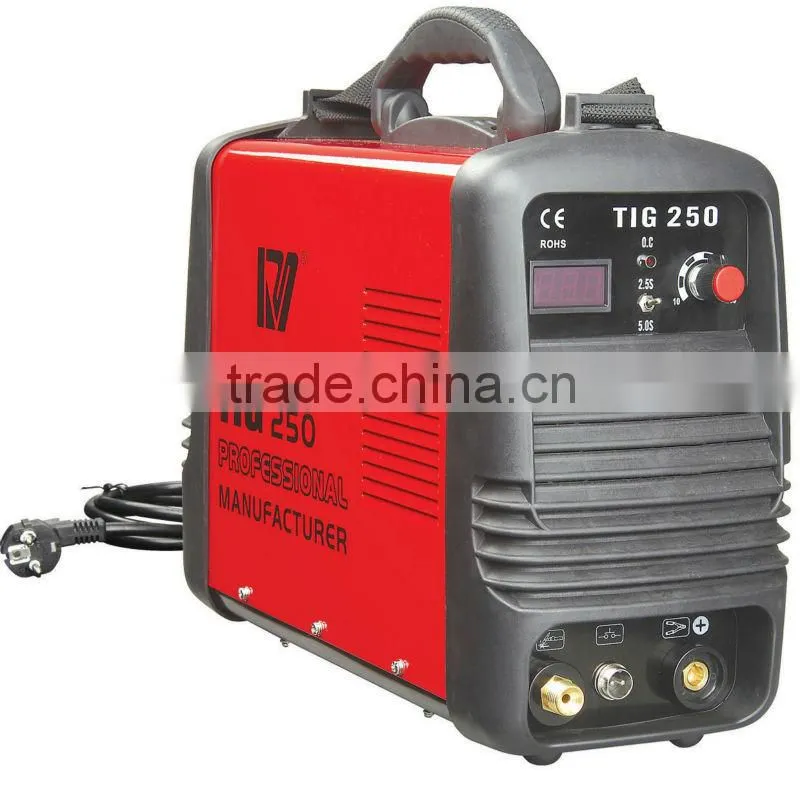

Main Features of TIG-250

1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.

2.Current can be adjusted stepless, high efficiency.

3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.

4.Touched arc technique or HF arc-starting, be free from electromagnetisms disturb, no slag, smooth welding line.

5.Argon, suit for stainless steel, copper, aluminum, steel, titanium, nickel and other alloy material.

6.With complete accessories.

7.Carton box
