Help CenterAir Plasma Cutter
US$ 140 - 145
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
KENMAI
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Zhejiang, China
Brand Name
KENMAI
Model Number
CUT-40
Input Voltage
230V
Rated Current
20A-40A
Dimensions
475*250*385(mm)
Usage
welding machine
Certification
CE, ROHS
Specifications
Air Plasma Cutter1.Save energy
2.Portable,light
3.CUT DC air plasma cutter
4.Advanced MOS/IGBT inverter technology

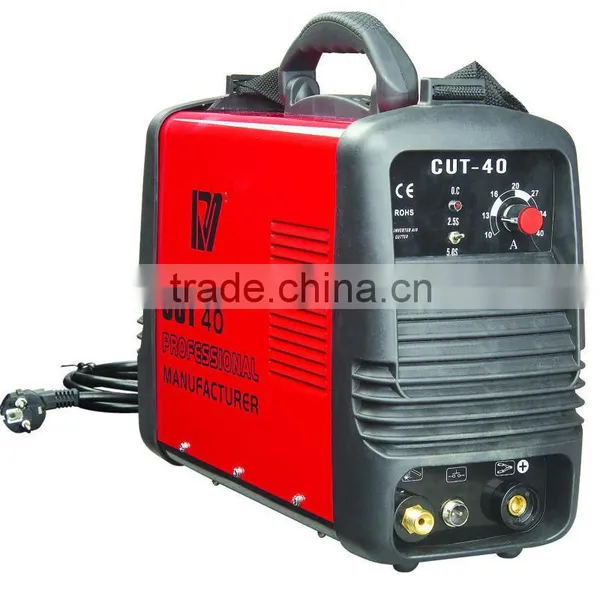

CUT-40 Air Plasma Cutter
Technical Specification
| Model Specification |
CUT-40 |
| Rated input voltage(V) | 230 |
| Output Voltage(V) | 96 |
| No-load Voltage(V) | 244 |
| Input Capacity(KVA) | 4.8 |
| Frequency(Hz) | 50/60 |
| Current Range(A) | 20-40 |
| Rated Duty Cycle(%) | 60 |
| Efficiency(%) | 85 |
| Class of Insulation | B |
| Case Protection Degree | IP21S |
| Arc-starting | Touch |
| Weight(KG) | 9.0 |
| Dimension(mm) | 475*250*385 |
Main Features of CUT-40
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Starting arc with or without contact, useable curve cutting celerity, no curliness, stable output and long working life, able to be operated continuously.
5.Suit for steel, stainless, plating steel, aluminum, copper and all kinds of metal plates.
6.With complete accessories.
7.Carton box
