CT-416 Inverter Welding Machine1.Three functions integrate to be one:MMA, TIG and CUT,
2.Widely used
3.Convenient operation

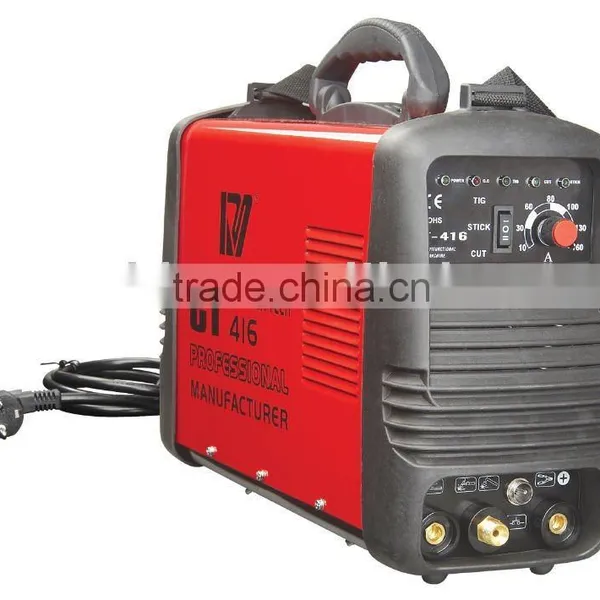

CT-416 Inverter Welding Machine
Technical Specification
| Model Specification | CT-416 | ||
| Rated input voltage(V) | AC220V | ||
| Input Capacitance(KVA) | 6 | ||
| No-load Loss(W) | 40 | ||
| Rated duty cycle(%) | 60 | ||
| Efficiency(%) | 85 | ||
| Weight(KG) | 10 | ||
| Dimension(mm) | 505*250*385 | ||
| TIG | MMA | CUT | |
| Input Current(A) | 15 | 22 | 21 |
| Current Range(A) | 15-160 | 15-150 | 20-40 |
| No-load Voltage(V) | 62 | 62 | 250 |
| Working Voltage(V) | 16.5 | 26 | 120 |
| Nozzle Internal(mm) | φ1.2 | ||
| Air pressure(Mpa) | 0.4 | ||
| Gas Flow(L/min) | 2-5 | 80 | |
| Cut Thickness(mm) | 1-12 | ||
| Arc-leading | HF Vibrate | Torch | HF Vibrate |
Main Features of CT-416
1. Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Three functions integrate to be one: MMA, TIG and CUT, widely used, convenient operation, understandability, and production efficiency improved greatly
5.Suit for all kinds of basic and acid electrodes.
6.Suit for steel, stainless, plating steel, aluminum, copper, titanium, nickel and other alloy material,as well as all kinds of metal plates.
7.With complete accessories.
8.Carton box.
