Specifications
MMA/TIG Welder1.Two welding model: DC MMA, DC TIG
2.Widely used
3.Touched arc technique or HF arc-starting

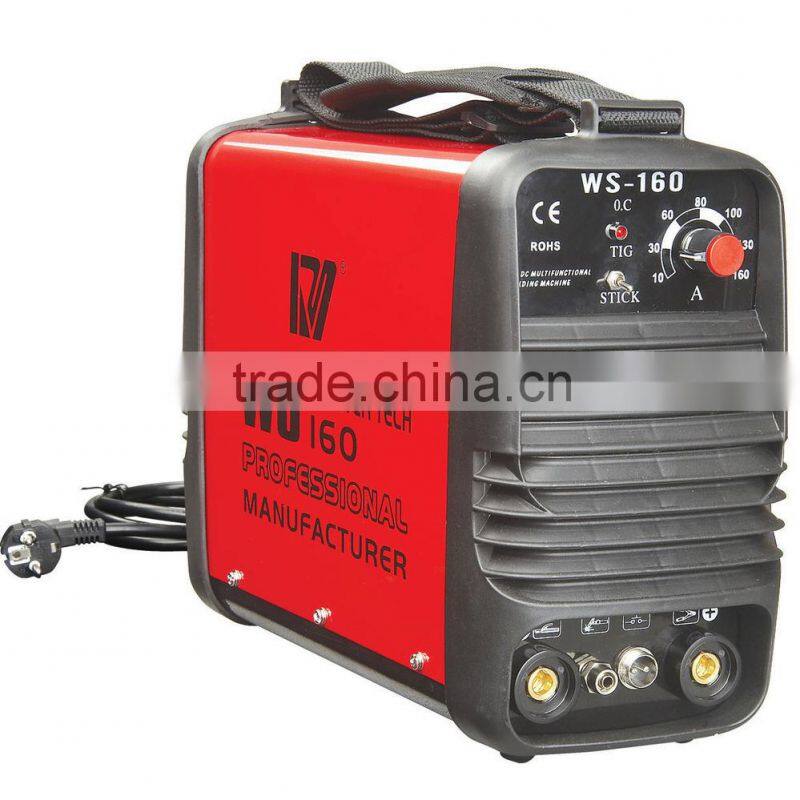

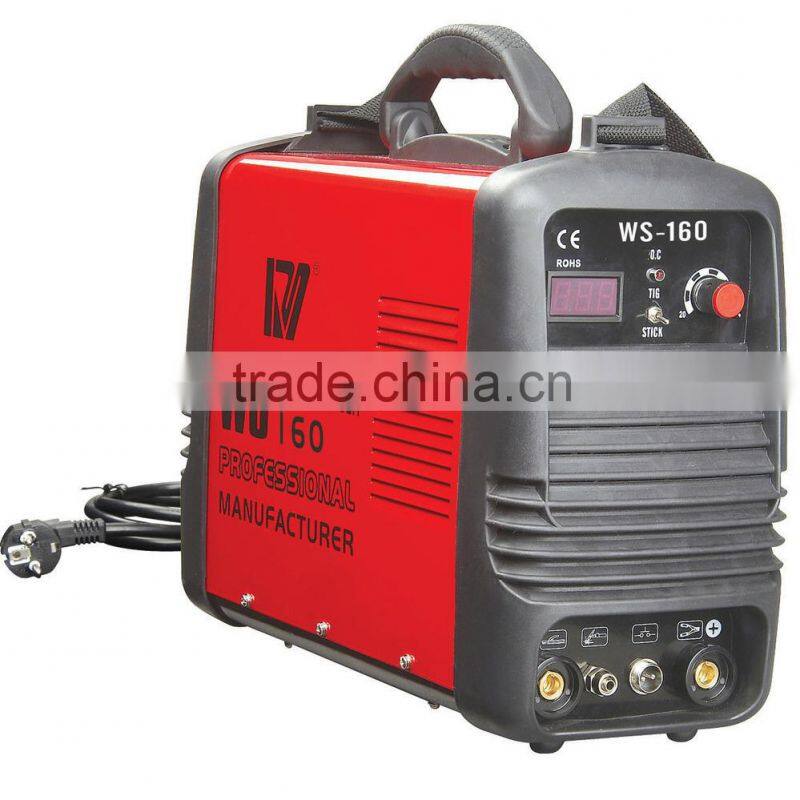

WS-160 MMA/TIG Welder
Technical Specification
| Model Specification | WS-160 |
| Rated input voltage(V) | 230 |
| Input capacity(KW) | 5.3 |
| Frequency(Hz) | 0.5-30 |
| No-load voltage(V) | 56 |
| Current range(A) | 5-160 |
| Output voltage(V) | 15.2 |
| Rated duty cycle(%) | 35 |
| Up-slope time(S) | 2 |
| Down-slope time(S) | 4 |
| Postflow time(S) | 10 |
| Basic current(A) | 5-160 |
| Pulse rate | 0.1-0.9 |
| Arc-starting | HF |
| Power factor COS(Φ) | 0.8 |
| Weight(KG) | 14 |
| Dimension(mm) | 485x245x380 |
Main Features of WS-160
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Two welding model: DC MMA, DC TIG, widely used, touched arc technique or HF arc-starting and convenience arc-starting, stable welding current, strong welding permeability.
5.Suit for all kinds of basic and acid electrodes.
6.Be able to weld steel, carbon steel, stainless steel, copper,aluminum, titanium, nickel and other alloy material.
7.With complete accessories.
8.Carton box
