Home > Products > Multifunctional Welder > Wsm 200 Welder

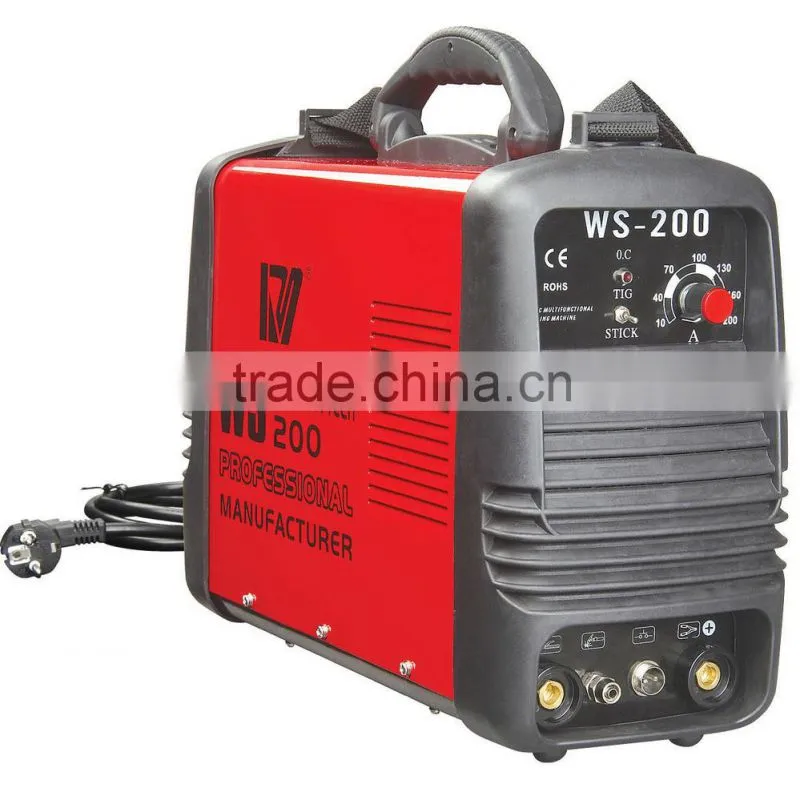

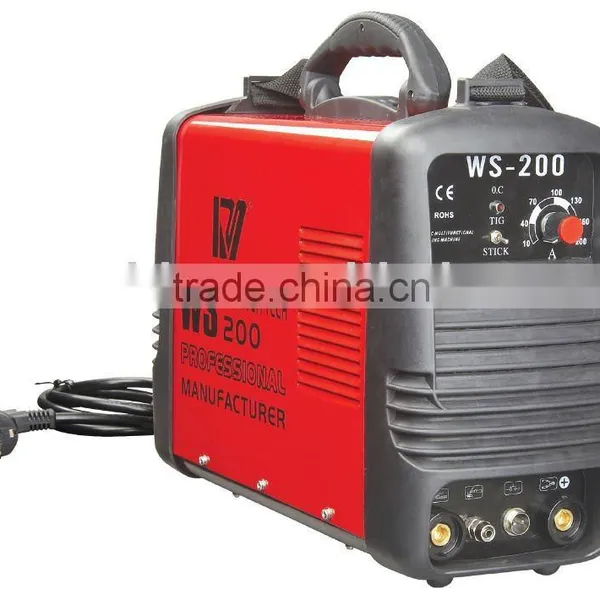

Wsm 200 Welder
- NINGBO or SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | KENMAI | Model Number | WS-200 | |
| Arc Current | 10-200 | Pulse Frequency | 50/60 | |
| Pilot Arc Current | 10-200 | Rated Duty Cycle | 60% | |
| Dimensions | 475*255*385(mm) | Usage | WS DC mutifunctional welding machine | |
| Voltage | 230v | Certification | CE, ROHS | |
| Warranty | one year |
Product Description
Specifications
MMA/TIG multifunctional Welding machine1.Welding : DC MMA, DC TIG
2.widely used
3.Touched arc technique or HF arc-start
WS-200 MMA/TIG DC multifunctional Welding machine
Technical Specification
| Specification | WS-200 |
| Input voltage(V) | 230 |
| Output Voltage(V) | 18 |
| No-load Voltage(V) | 62 |
| Rated Duty Cycle(%) | 60 |
| Input Capacity(KVA) | 6.7 |
| Current Range(A) | 10-200 |
| Insulation Class | B |
| Up-slope Time(s) | 2 |
| Down-slope Time(s) | 4 |
| Postfolw time(s) | 10 |
| Base Current(A) | 10-180 |
| Power Factor (COS φ) | 0.8 |
| Frequency(Hz) | 50/60 |
| Pulse Rate(%) | 0.1-0.9 |
| Arc-starting | HF |
| Weight(KG) | 14 |
| Dimension(mm) | 475*255*385 |
Main Features of WS-200
1.Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with EMC standard.
2.Current can be adjusted stepless, high efficiency.
3.Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4.Two welding model: DC MMA, DC TIG, widely used, touched arc technique or HF arc-starting and convenience arc-starting, stable welding current, strong welding permeability.
5.Suit for all kinds of basic and acid electrodes.
6.Be able to weld steel, carbon steel, stainless steel, copper,aluminum, titanium, nickel and other alloy material.
7.With complete accessories.
8.Carton box
