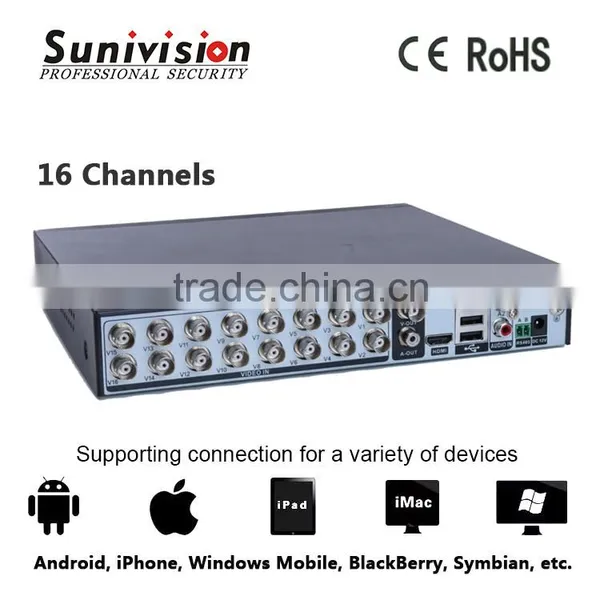

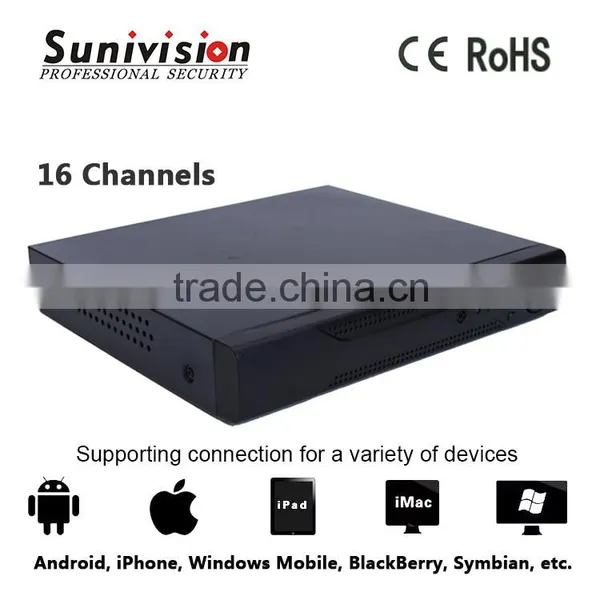

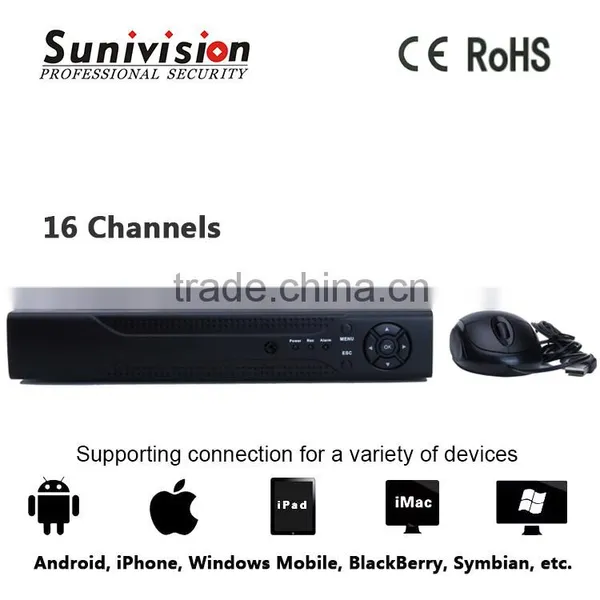

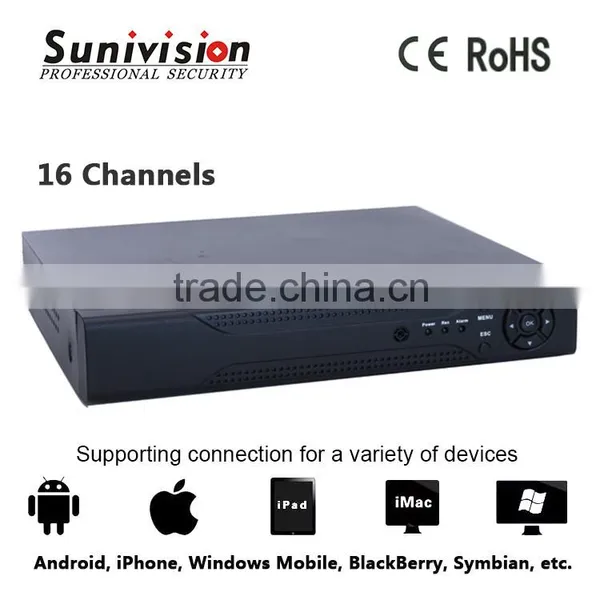

Hot sale multi-channel real-time recording/ playback /network operation/ USB backup16CH ahd dvr h 264 kit
User interface
Model |
AP-5016T-S |
|
system |
main processor |
HI3520D |
operating system |
embedded linux |
|
system resources |
Simultaneous multi-channel real-time recording, playback, network operation, USB backup |
|
interface |
user interface |

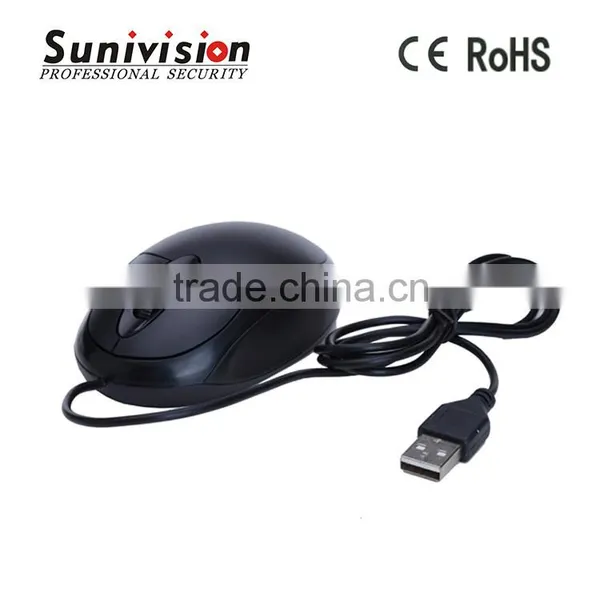

support 16-bit true color graphical menu interface and mouse operation |
preview screen |
1/4/8/9/16 |
|
Video |
vdieo standards |
PAL(625line,50f/s);NTSC(525line,60f/s) |
vdieo compression |
H.264(High Profile) |
|
display quality |
monitor:D1,VGA,HDMI:1024*768 |
|
play quality |
D1/HD1/CIF/QCIF |
|
encode capacity |
16ch CIF real-time |
|
decode capacity |
16ch CIF real-time |
|
motion detect |
Zones: 192(16*12)detection zones,sensitivity: multi-level sensitivity (Only local channels) |
|
audio |
audio compression |
G.711A |
bidrectional talk |
supported |
|
Record&playback |
record mode |
manual>alarm>motion detection>timing |
local playback |
Multi-channel Simultaneously playback(1-16ch) |
|
search mode |
Time/calendar/event/channel search |
|
Storage&backup |
space occupation |
Video: CIF:4~5G/ day*channel D1:8~10G/ day*channel |
record storage |
HDD,network |
|
backup mode |
Network backup,USB,U disk |
|

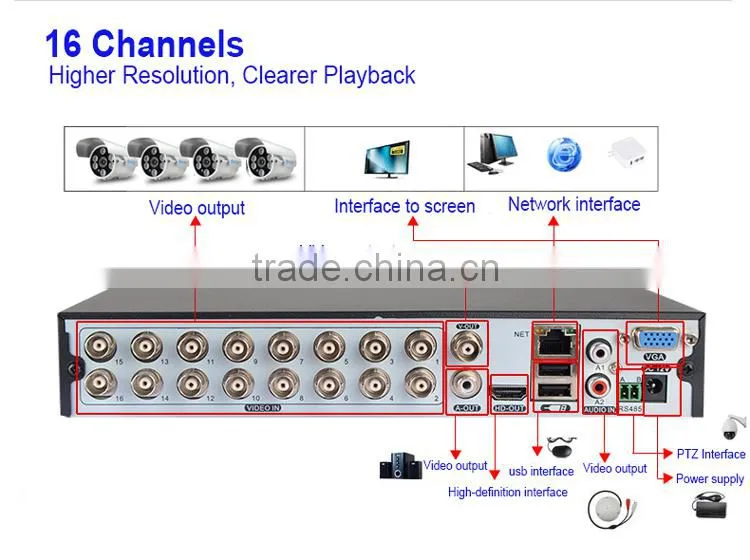

interface |
video input |
16ch BNC |

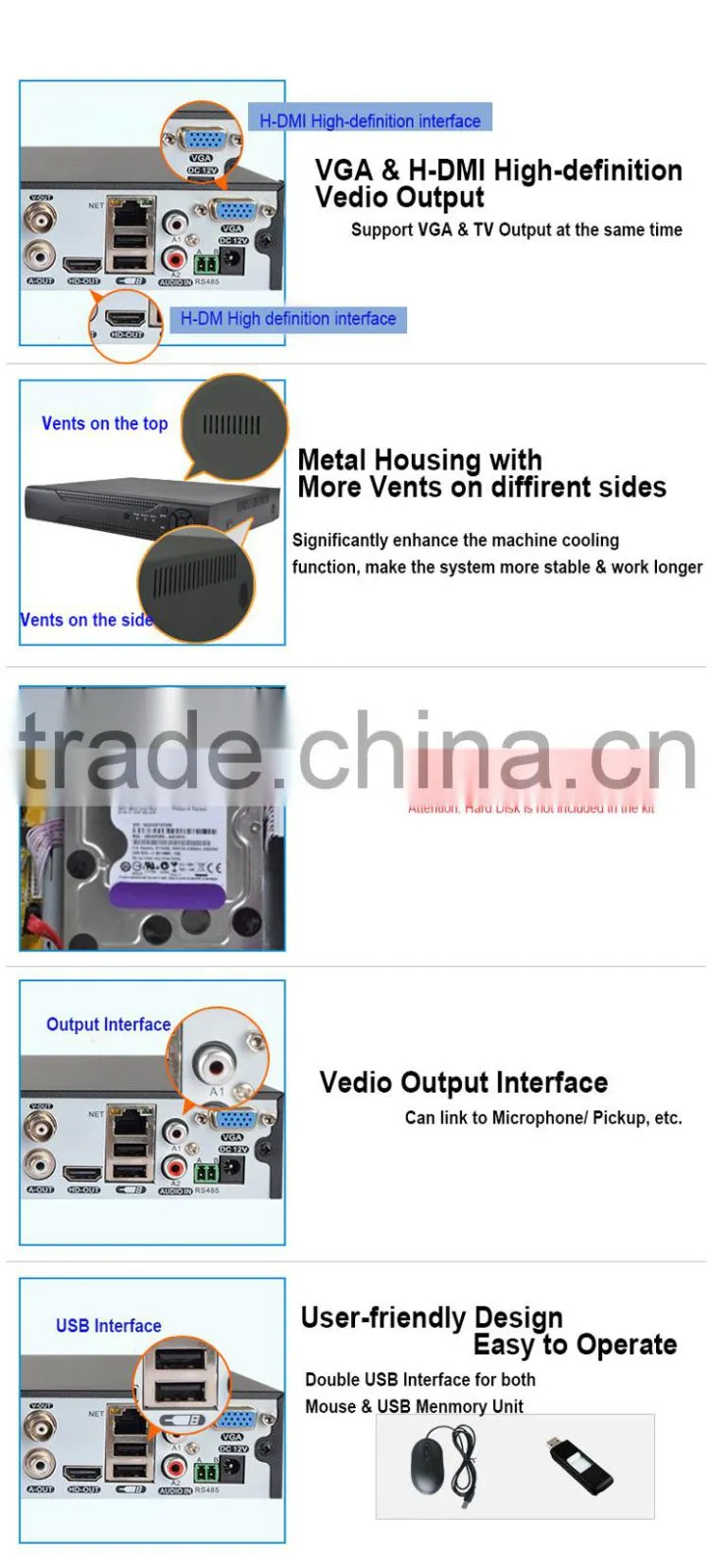

video output |
1ch BNC,1ch VGA,1ch HDMI |
|
audio input |
2ch RCA |
|
audio output |
1ch RCA |
|
alarm input |
no |
|
alarm output |
no |
|
net interface |
One RJ45 10M/100M |
|
PTZ control |
One RS485 port, support 18 PTZ protocols |
|
USB |
2 USB2.0 ports |
|
HDD |
1 SATA ports(4T at most per one) |
|
others |

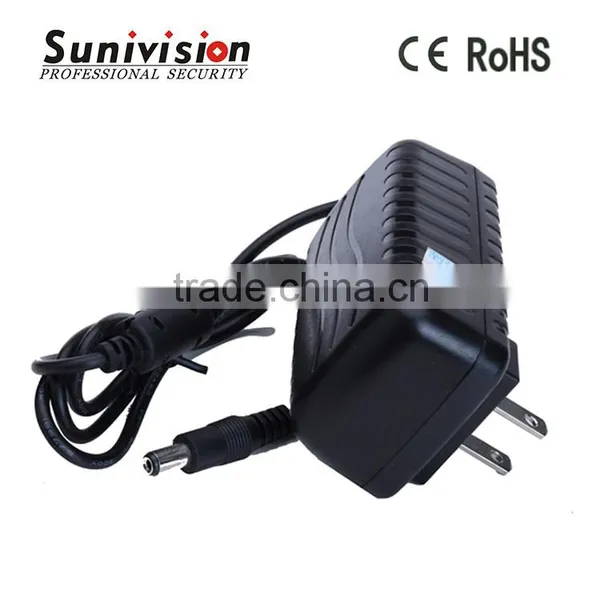

Power supply |
12V/2A |
dimension |
255mm(Length)* 225mm(width)* 45mm(height) |
|
|
|
| 2mp bullet h.264 p2p cctv wireless wifi ip camera | 5M pixels 50 meter wifi h.265 ip camera | wireless cctv ip camera with speaker microphone |
|
|
|
| wireless cctv dvr ir camera kit | 4ch full outdoor camera cctv dvr kit | Sony 700tvl 8ch cctv camera dvr kit |
Sunivision Technology Development Co., Ltd. is a leading and professional CCTV manufacturer located in Guangzhou, China. Sunivision was established in 2008, with 2000 square meter factory and 150 employees including 5 R&D engineers and 10 person for quality control, 15% of the year sales volume will be put into R&D, 2-5 New products will be come out every month.
Sunivision sepcialized in researching, producing and exporting CCTV Analog Cameras, AHD Cameras, Digital Cameras (IP Camera, CVI Camera, TVI Camera etc.) and Stnad-alone DVRs, CVI DVR, AHD DVR, NVR, providing the most stable digital security solutions.
