HOT commercial 4 channel CCTV camera kits home lowes home security camera rohs

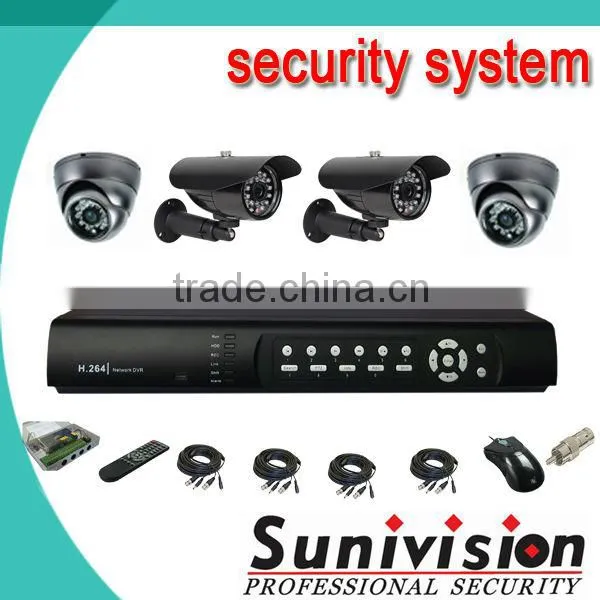

Packing details:
2pcs metal dome camera sony 420TVL 24pcs IR leds (AP-144G)
2pcs outdoor bullet camera sony 420TVL 36pcs IR leds (AP-1474A)
1pc 4CH H.264 DVR with VGA, support mobile monitor (AP-9604HV)
4pcs 20meter(65ft) video+power Cable
1pcs Power supply for 4 camera 12V DC 3A
1pc 1 metre crossed network patch lead
1pc BNC to TV connector
1pc DVR mouse
1pc DVR remote control
4pcs CCTV Sign
Camera Specifications:
MODEL |
AP-144G/ AP-1474A |
Image Device |
1/3" SONY |
TV Format |
PAL/NTSC |
Number of Pixel |
NTSC: 510x492/ PAL: 512x582 |
Resolution |
420 TV lines |
Sync.System |
Internal |
IR LED |
24 units IR LEDs |
IR Effective Range |
UP to 15 meters |
Minimum Illumination |
0LUX(IR ON) |
LEN |
f3.6MM/6MM (F2.0) |
IP Rating |
IP66 |
AGC |
AUTO |
S/N Ratio |
≥48dB |
Smart Light Control |
YES |
Gain Control |
Auto |
White Balance |
Auto(2500°K~9500°K) |
Electronic Shutter |
Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL) 1/60~-1/120,000 Sec(NTSC) |
Back light Compensation |
AUTO |
Video Output |
1.0Vp-p composite 75ohm |
Power Consumption |
300mA/350mA |
Power Supply |
DC12V |
Operation Temp |
-10°C~+50°C |
DVR Specification:
System |
Model |
AP-9604HV |
Main Processor |
High performance embedded microprocessor HI3515 |
|
Operating System |
Embedded LINUX |
|
System Resources |
Pentaplex function:live,recording,playback,backup & remote access |
|
User Interface |
GUI,on-screen menu tips |
|
Display |
1/4 |
|
Video |
Video Standards |
PAL 625 line,50 f/s;NTSC 525 line,60 f/s |
Video Compression |
H.264 main profile |
|
Video Recording |
D1:PAL 1f/s-25f/s NTSC 1f/s-30f/s |
|
Encode capacity |
100/120fps(D1) |
|
Motion Detection |
Zones:192(16*12)detection zones |
|
Audio |
Audio Compression |
G711A |
Bidrectional Talk |
Support |
|
Record & Playback |
Recording Mode |
Manual>Alarm>Video Detection>Continuous |
Playback |
Multi channels playback simultaneously,pause,stop,rewind,fast play, slow play,next file,previous file,repeat,shuffle,backup selection |
|
Search Mode |
Time/Date,Alarm,Motion Detection & exact search(accurate to second) |
|
Storage & Backup |
Space Occupation |
Audio 28.8MB/H ;Video 25~450 MB/H |
Record Storage |
Local Hard disk and Network |
|
Backup Mode |
Network download/movable HDD |
|
Interface |
Video Input |
4channel |
Video Output |
1 channel TV output BNC,1.0Vp-p,75Ω,1 VGA output , |
|
Audio Input |
4 channel |
|
Audio Output |
1 channel |
|
Alarm Input |
N/A |
|
Relay Output |
N/A |
|
Net Interface |
RJ-45 (10M/100M) |
|
PTZ Control |
Support |
|
USB Interface |
2 x USB2.0 |
|
Hard Disk |
1SATA ports(Max 2048G) |
|
Environmental |
Power Supply |
12V/2A |
Power Consumption |
<10W(not include Hard disk) |
|
Working Temperature |
0°C-+55°C |
|
Working Humidity |
10%-90% |
|
Atmosphere Pressure |
86kpa-106kpa |
|
Dimension |
325 x 48 x 255mm |
|
Weight |
2.1kg |
More Hot Sale Products:
Application:
Teamwork Shows:
Sunivision Technology Development Co.,Ltd. is a leading and professional CCTV manufacturer located in Guangzhou,
China. Sunivision was established in 2008 ,with 2000 SQUARE METER factory and 150 employees including 5 R&D
engineers and 10 person for quality control,15% of the Year Sales Volume will be put into R&D,2-5 New Products will
be come out every month!
Sunivision specializes in researching, producing and exporting CCTV Analog Cameras, AHD Camera,
Digital camera(IP Camera,CVI Camera etc.)
and Stand-alone DVRs,CVI DVR ,AHD DVR,NVR, providing the most stable digital security solutions.
Sunivision has CE & ROHS for both DVR & CCTV CAMERAS.
A. Prompt Reply
B. OEM&ODM:
- Printing logoon the camera;
- Customized camera housing;
- Customized package box
C. Fast Delivery:
2-7 working days for sample after payment cleared.
4-12 working days for medium & large order after payment cleared.
D. Payment
You can pay for order via T/T, Western Union, Paypal,L/C
E. Shipping
We have strong cooperation with DHL, TNT,UPS, Fedex.EMS. China Air post.sea
You aslo can choose you own shipping forwarder
F. After sale service:
- Any technologic problems and quality problems,you can contact us by email or by phone.
- We will do our best to help to sovle your any problems as soon as possible.
- Free repair within two years,except huma
G. Warranty:
- Free repair within two years,except human factors.
Q.May I print our company logo on package box and camera and DVR?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is your method of payment?
A:Pay via T/T,Western Union,Escrow,L/C is welcome.
Q.What is Minimum Order Quantity?
A:Minimum Order Quantity is 50pcs,but sample order is welcome.
