2015 renewable energy wind turbine blade wind turbine generator small wind generator
300W 400W 600W 800W 1200W 1600W
Features 2015 renewable energy wind turbine blade wind turbine generator small wind generator
1.Bearing from “SKF” Sweden.
2.Stainless steel screw bolt from “THE”.
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.
Specification: 2015 renewable energy wind turbine blade wind turbine generator small wind generator
Model |
Mini400W-3Plus |
Mini400W-5Plus |
Rated power |
400 watts at 12 m/s |
|
Max Capacity |
450watts |
|
Voltage |
12, 24 VDC |
|
Blades |
3 Pcs Nylon Fiber |
5 Pcs Nylon Fiber |
Start-Up Wind Speed |
2.0 ( m/s) |
1.5 ( m/s) |
Cut-In Wind Speed |
2.5(m/s) |
2.0(m.s) |
Rotor Diameter |
1.16 m |
1.21m |
Weight |
6.2 kg |
7.1 kg |
Shipping Dimensions |
790x 430x 220 mm (8 kg) |
790x 430x 220 mm ( 9.3 kg) |
KWH per Month |
30KWh at 3.2 m/s |
42KWh at 3.2 m/s |
Mount |
1.9 inch (48 mm) OD pipe |
|
|
Turbine Controller (Plus)
|
Microprocessor-based smart internal regulator with Maximum Power Point Tracking,MPPT |
|
Body |
Cast aluminum |
|
Overspeed Protection |
Electronic torque control |
|
Working temperature |
—40℃~ 150℃ |
|
Certificate |
ISO9001:2008 ,CE, Rohs |
|
Survival Wind Speed |
50 m/s |
|
Warranty |
3 year limited warranty |
|
Model |
MAX 600W |
MAX 800W |
MAX 1200W |
MAX 1600W |
Rated power |
600W |
800W |
1200W |
1600W |
Max power |
750W |
950W |
1300W |
1800W |
Rated voltage |
24 VDC |
48 VDC |
48VDC/110VDC |
48VDC/110VDC |
Rated current |
25A |
16.7A |
25A/10.9A |
33A/14.5A |
Rated Rpm |
650 |
|||
Rated wind speed |
12m/s |
|||
Blades |
5 Pcs Nylon Fiber glass |
|||
Start-Up Wind Speed |
1.5 ( m/s) |
1.5 ( m/s) |
2.0 ( m/s) |
2.0 ( m/s) |
Cut-In Wind Speed |
2.0 (m/s) |
2.0 (m/s) |
2.5 (m/s) |
2.5 (m.s) |
Rotor Diameter |
1.7 m |
1.8 m |
2.0 m |
2.2 m |
N.W |
28.5KG |
30KG |
36KG |
41KG |
G.W |
33KG |
35.5KG |
41KG |
46KG |
Shipping Dimensions |
1690*540*290mm |
1690*540*290mm |
1890*540*290mm |
1890*540*290mm |
Mount |
Flange connection |
|||
Turbine Controller |
MPPT wind solar hybrid controller |
|||
Body |
Cast aluminum |
|||
Overspeed Protection |
Electromagnetic & blade aerodynamic braking |
|||
Working temperature |
—40°C~ 150°C |
|||
Certificate |
ISO9001:2008 ,CE, Rohs |
|||
Survival Wind Speed |
50 m/s |
|||
Warranty |
3 year limited warranty |
|||
Detail pictures show: 2015 renewable energy wind turbine blade wind turbine generator small wind generator

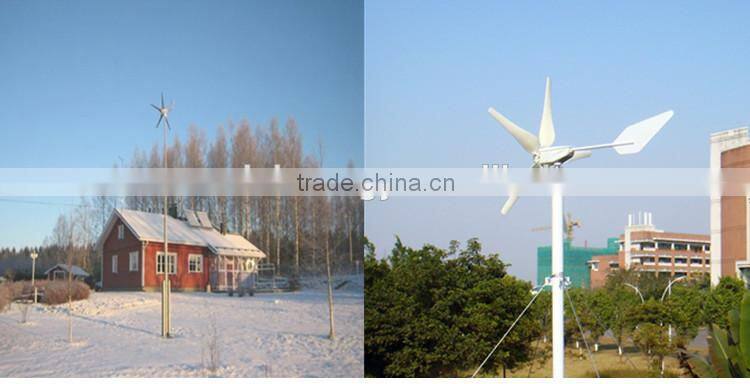

Applications in our daily life: 2015 renewable energy wind turbine blade wind turbine generator small wind generator

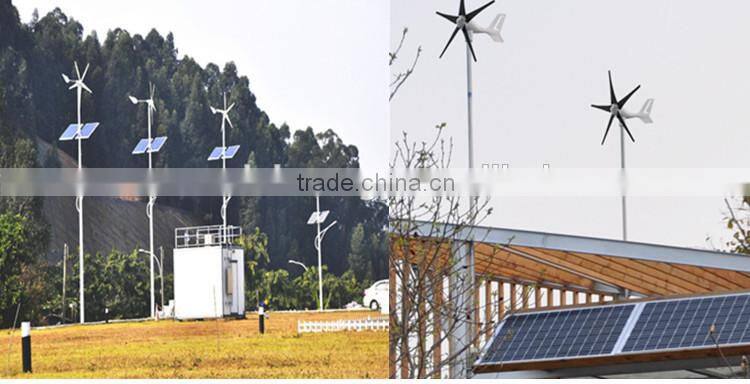

Projects of our Wind Solar Hybrid System in the World:

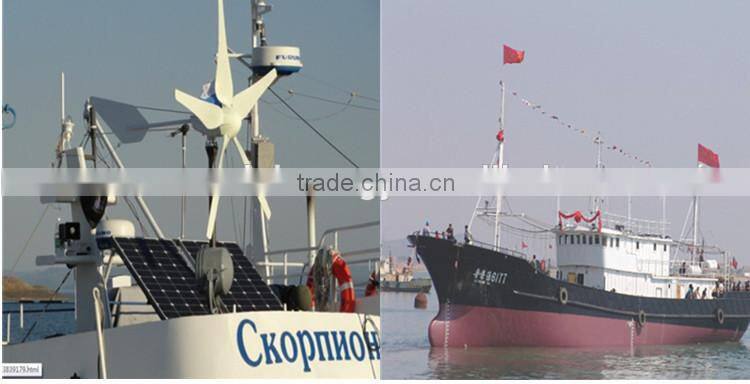

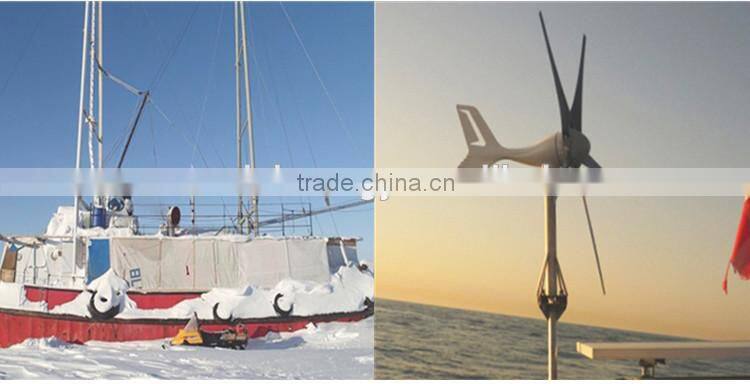

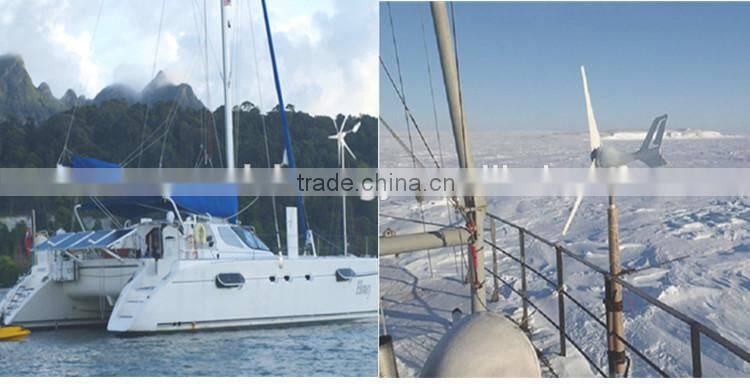

Marian Wind Turbine on the Sea :

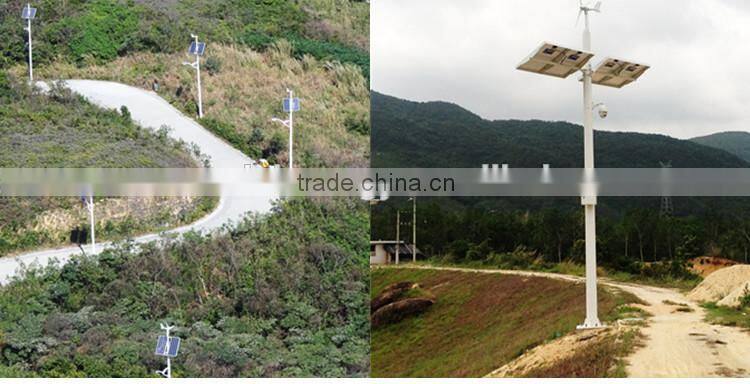

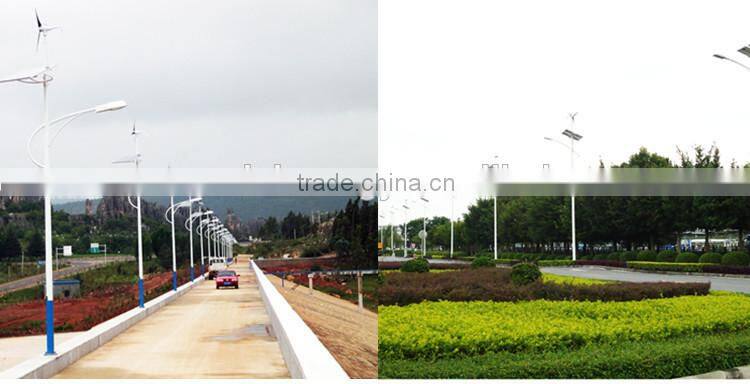

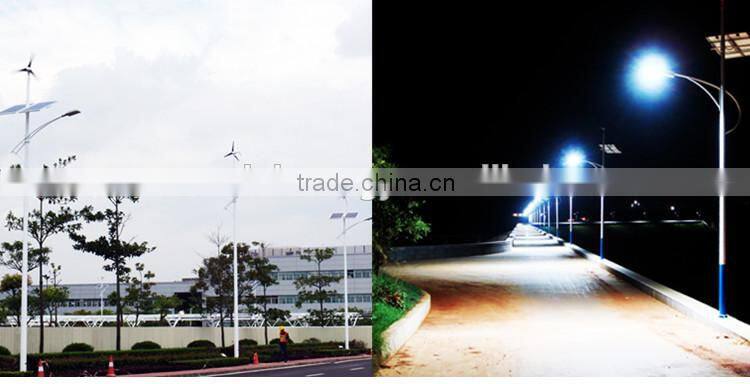

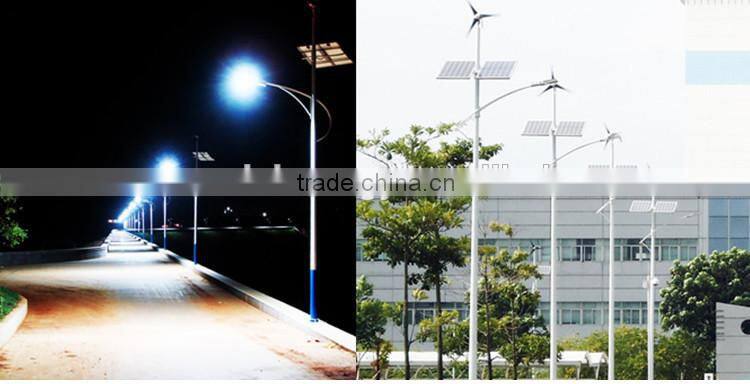

Wind Solar Street Light with Beautiful Night scenery show:

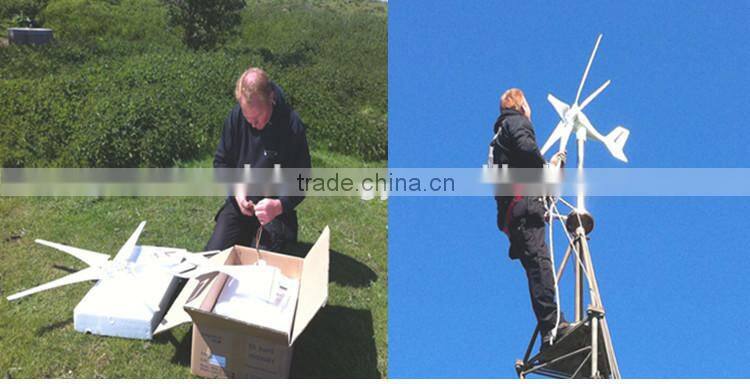

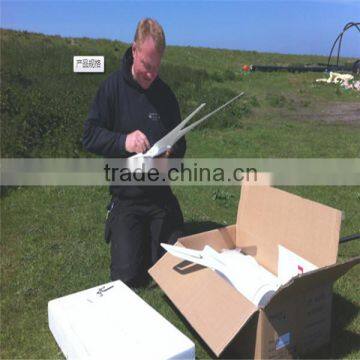

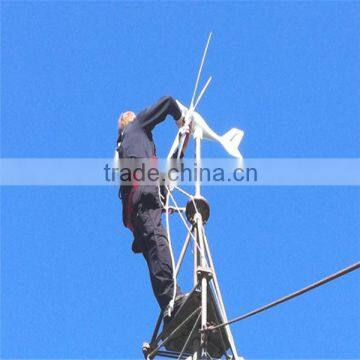

Pictures Share from Customers :
Certification:
Workshop Show: 2015 renewable energy wind turbine blade wind turbine generator small wind generator
