Help CenterHigh Quality Wind Turbine Generator 220v
Related Products
-
High Quality NEWSKY China Wind Turbine ManufacturerUS$ 214 - 392MOQ: 1 Piece -
2014 New Product Wind Generator 600w MaxUS$ 214 - 392MOQ: 1 Piece
-
400w-1600w Phone Number Mini Wind Generator ChinaUS$ 214 - 392MOQ: 1 Piece
-
NEWSKY Solar Power Systems for Small Homes Mini Wind Power GeneratorUS$ 214 - 392MOQ: 1 Piece
-
12v Chinese Mini Wind TurbineUS$ 214 - 392MOQ: 1 Piece
Specifications
wind turbine generator 220vCE,ROHS
Bearing: Sweden SKF
wind turbine generator 220v
Models
400W, 600W, 800W, 1200W, 1600W
Features
Bearing: Sweden SKF
Stainless steel screw bolt: Brand THE
100% Primary aluminum housing, not secondary aluminum
Low start-up wind speed
High-efficient Generator
Perfect Wind Wheel System
Unique Design Of The Rudder
Damp-proof, sand-proof, Anti-rust, Anticorrosion
Easy installation, Free of maintenance, Long lifespan over 15years
Specification
400W
Model |
MINI400W-3Plus |
MINI400W-5Plus |
Rated power |
400 watts at 12 m/s |
|
Max Capacity |
450watts |
|
Voltage |
12, 24 VDC |
|
Blades |
3 Pcs Nylon Fiber |
5 Pcs Nylon Fiber |
Start-Up Wind Speed |
2.0 ( m/s) |
1.5 ( m/s) |
Cut-In Wind Speed |
2.5(m/s) |
2.0(m.s) |
Rotor Diameter |
1.16 m |
1.21m |
Weight |
6.2 kg |
7.1 kg |
Shipping Dimensions |
790x 430x 220 mm (8 kg) |
790x 430x 220 mm ( 9.3 kg) |
KWH per Month |
30KWh at 3.2 m/s |
42KWh at 3.2 m/s |
Mount |
1.9 inch (48 mm) OD pipe |
|
|
Turbine Controller (Plus)
|
Microprocessor-based smart internal regulator with Maximum Power Point Tracking,MPPT |
|
Body |
Cast aluminum |
|
Overspeed Protection |
Electronic torque control |
|
Working temperature |
—40℃~ 150℃ |
|
Certificate |
ISO9001:2008 ,CE, Rohs |
|
Survival Wind Speed |
50 m/s |
|
Warranty |
3 year limited warranty |
|
600W,800W,1200W,1600W
Model |
MAX 600W |
MAX 800W |
MAX 1200W |
MAX 1600W |
Rated power |
600W |
800W |
1200W |
1600W |
Max power |
750W |
950W |
1300W |
1800W |
Rated voltage |
24 VDC |
48 VDC |
48VDC/110VDC |
48VDC/110VDC |
Rated current |
25A |
16.7A |
25A/10.9A |
33A/14.5A |
Rated Rpm |
650 |
|||
Rated wind speed |
12m/s |
|||
Blades |
5 Pcs Nylon Fiber glass |
|||
Start-Up Wind Speed |
1.5 ( m/s) |
1.5 ( m/s) |
2.0 ( m/s) |
2.0 ( m/s) |
Cut-In Wind Speed |
2.0 (m/s) |
2.0 (m/s) |
2.5 (m/s) |
2.5 (m.s) |
Rotor Diameter |
1.7 m |
1.8 m |
2.0 m |
2.2 m |
N.W |
28.5KG |
30KG |
36KG |
41KG |
G.W |
33KG |
35.5KG |
41KG |
46KG |
Shipping Dimensions |
1690*540*290mm |
1690*540*290mm |
1890*540*290mm |
1890*540*290mm |
Mount |
Flange connection |
|||
Turbine Controller |
MPPT wind solar hybrid controller |
|||
Body |
Cast aluminum |
|||
Overspeed Protection |
Electromagnetic & blade aerodynamic braking |
|||
Working temperature |
—40℃~ 150℃ |
|||
Certificate |
ISO9001:2008 ,CE, Rohs |
|||
Survival Wind Speed |
50 m/s |
|||
Warranty |
3 year limited warranty |
|||
Details
Easy to install

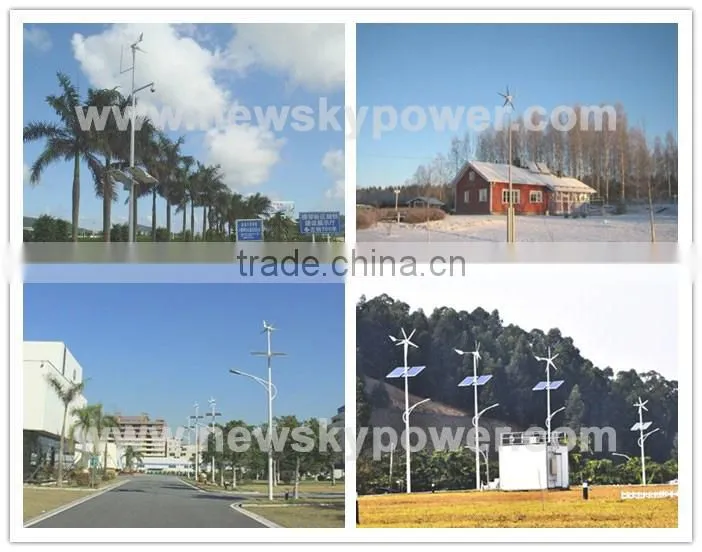

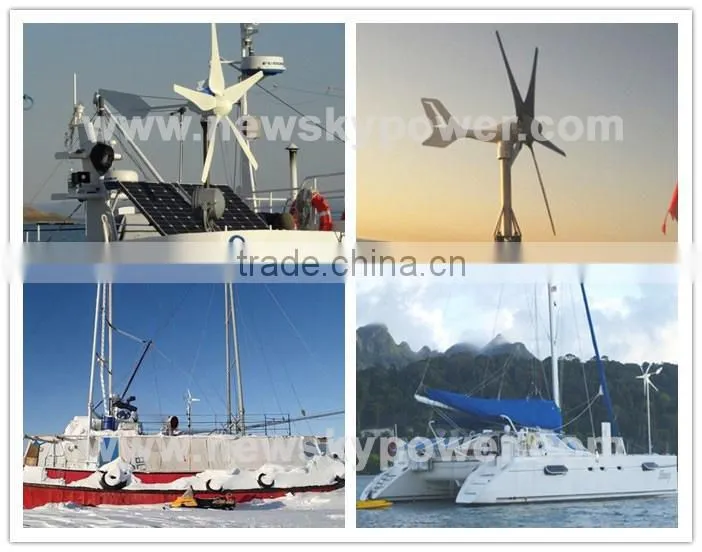

Projects
are windly used for home use,marine,hybrid power system,communication project...etc

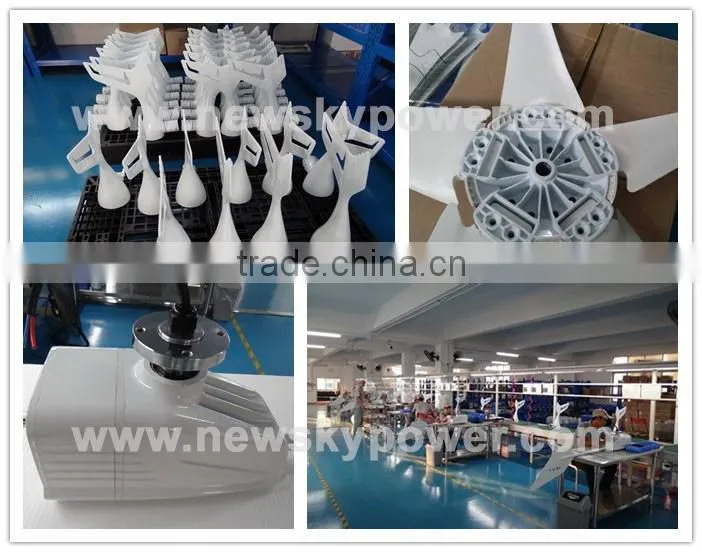

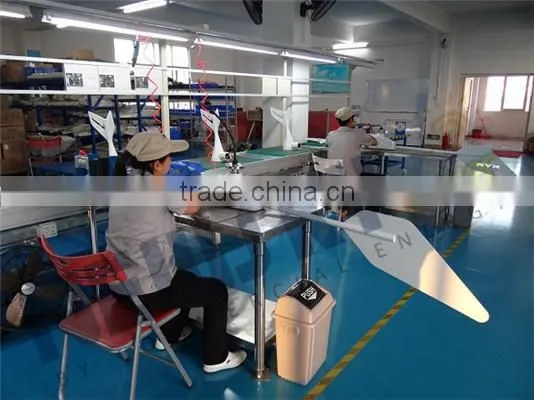

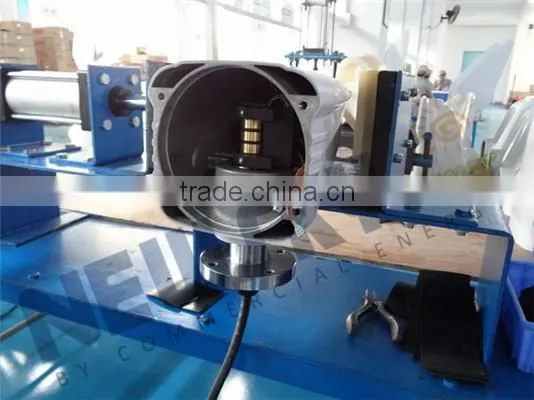

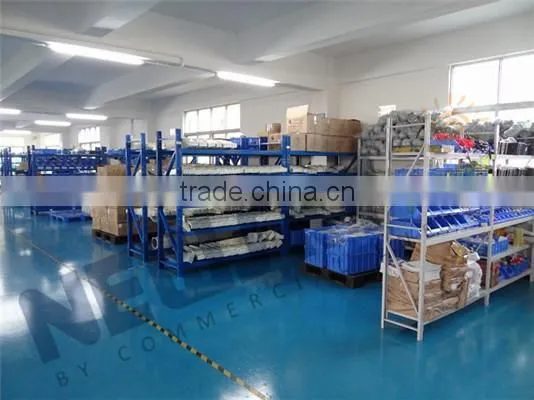

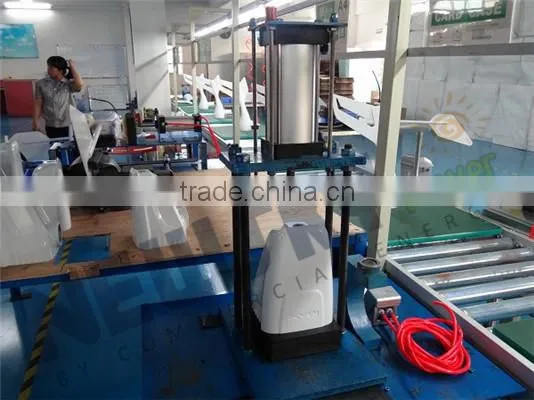

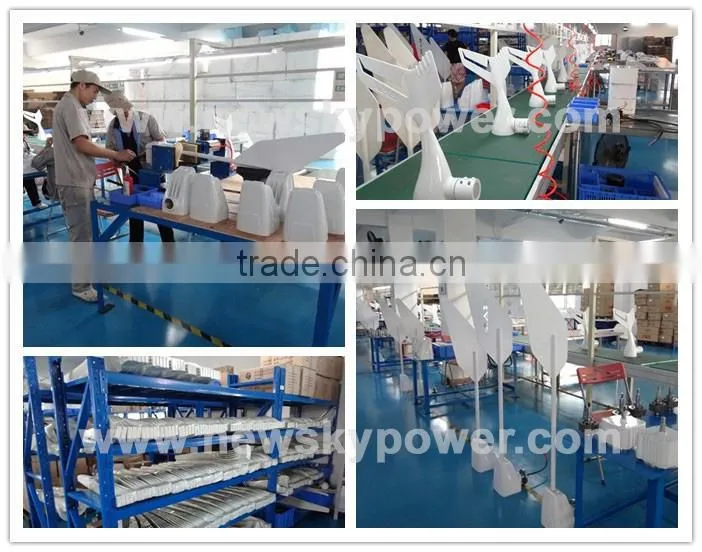

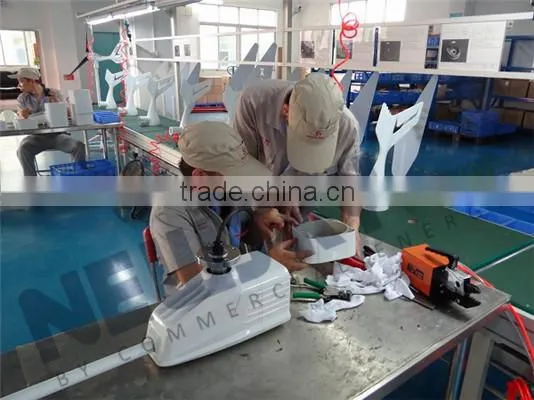

Workshop
| Model | MINI400W-3PLUS | MINI400W-5PLUS |
| Weight | 6.2 kg | 7.1 kg |
| Shipping Dimensions | 790x 430x 220 mm (8 kg) | 790x 430x 220 mm ( 9.3 kg) |
| KWH per Month | 30KWh at 3.2 m/s | 42KWh at 3.2 m/s |
| Mount | 1.9 inch (48 mm) OD pipe | |
| Warranty | 3 year limited warranty | |
| packing | Cartons for exporting with EPE protection | |
Why choose us?
1.Partner of F.A.O.
2. Professional experience of serving wind&solar products for more than 6 years.
3.Specialized in the series of products supporting services.
4. Quality is the first.
Certifications
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of “advanced technology,exquisite product and competent manufacturing”,the company is proceeding with the mission of energy saving and green planet building based on the spirit of credit,innovation,hard working and social responsibility.
*************************
CONTACT US
Una Liu
Qingdao Commercial Energy Electronics Co.,Ltd.
Tel : +86-532-86943160
Fax: +86-532-86936604
Send Inquiry to This Supplier
